Drive Shaft - Rear Axle Drive (Solihull Plant Build, Propshaft) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Drive Shaft - Rear Axle Drive (Solihull Plant Build, Propshaft) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TYG500130 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
TYP500180 SCREW Enquire To Order
LR092696 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYG500270 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
TYF500020 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR082554 SHAFT - REAR AXLE OUTER STUB Enquire To Order
LR082558 SHAFT - REAR AXLE OUTER STUB Enquire To Order
Photo Part No Description Price (each) Stock
LR066317 BRACKET - DRIVESHAFT Enquire To Order
View All

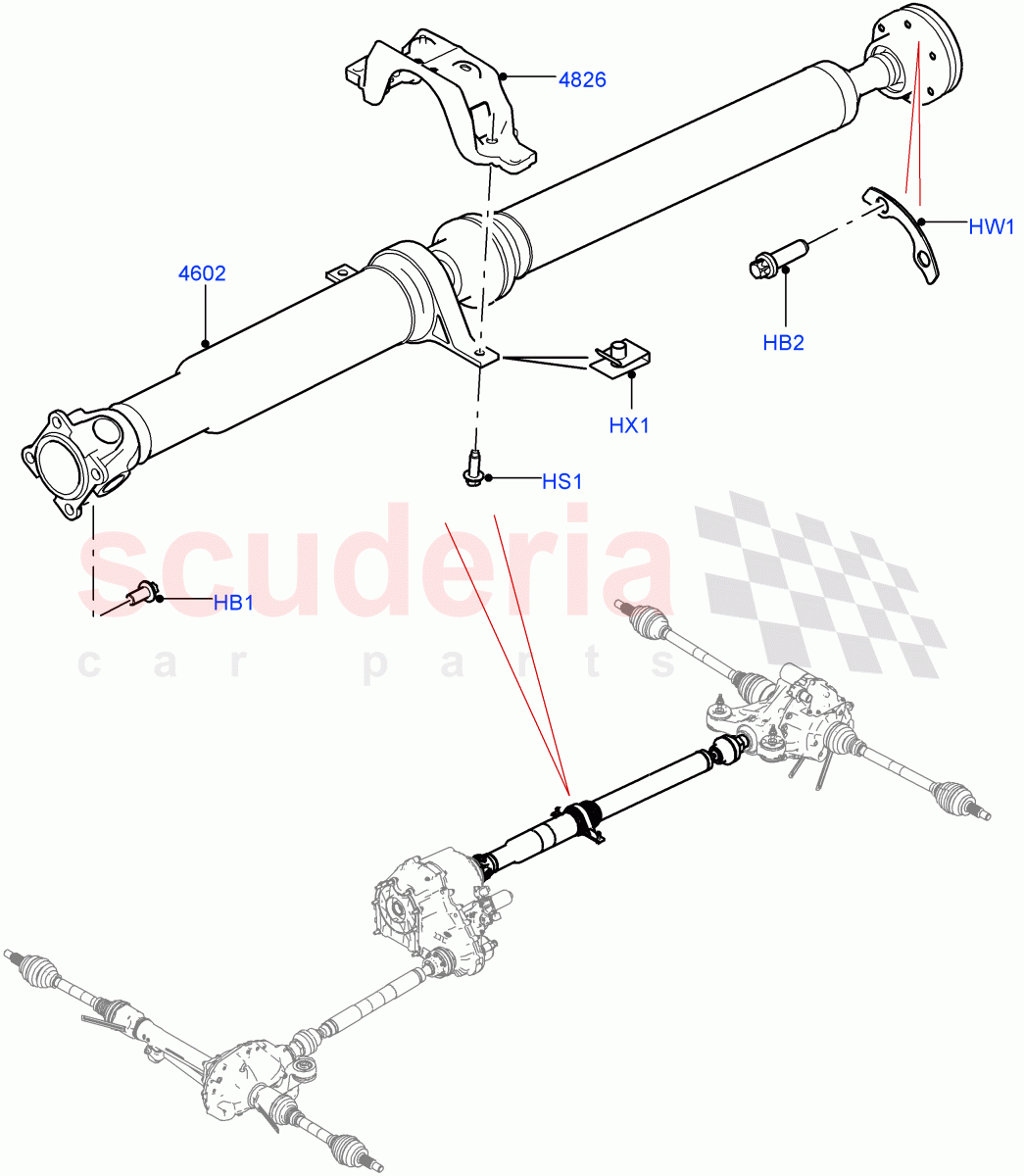

Drive Shaft - Rear Axle Drive (Solihull Plant Build, Propshaft) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 TYG500130
BOLT
External Torx Head, M12 x 25MM 		- 4 Enquire
HB2 TYP500180
SCREW
M10 X 1.5, Service Fit - Flange Type Propshaft Connection / To: HA016753 		- 6 Enquire
HB2 LR092696
BOLT
External Torx Head, M10 x 52MM / From: HA016754 		- 6 Enquire
HS1 RYG500270
SCREW
Hexagonal Head, M10 X 25MM 		- 2 Enquire
HW1 TYF500020
WASHER - SEALING
M10, Service Fit - Flange Type Propshaft Connection, Special Washer 		- 3 Enquire
HX1 KYH500100
NUT - SPRING
M10, Nut "U" Spring 		- 2 Enquire
4602 LR082554
SHAFT - REAR AXLE OUTER STUB
With 2 Spd Trans Case With Ctl Trac 		- 1 Enquire
4602 LR082558
SHAFT - REAR AXLE OUTER STUB
With 1 Speed Transfer Case 		- 1 Enquire
4826 LR066317
BRACKET - DRIVESHAFT 		- 1 Enquire
