Front Axle Case (Solihull Plant Build) (3.0 V6 D Low Mt Row, 3.0 V6 D Gen2 Twin Turbo, 2.0L I4 Dsl...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Front Axle Case (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo, 2.0L I4 DSL...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038977 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR039049 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
TYP500100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR085630 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR050513 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR050515 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FB110096 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR089624 DIFFERENTIAL - FRONT Enquire To Order
LR089623 DIFFERENTIAL - FRONT Enquire To Order
LR124997 DIFFERENTIAL - FRONT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500110 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR039394 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR091706 DAMPER - DAMPING MASS Enquire To Order
LR062295 DAMPER - DAMPING MASS Enquire To Order
LR062297 DAMPER - DAMPING MASS Enquire To Order
Photo Part No Description Price (each) Stock
LR052323 KIT - FDU TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR082620 HOSE - VENT Enquire To Order
LR038826 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR067897 KIT - PINION REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
LR060048 INSULATOR - BUSH TYPE Enquire To Order
LR090577 INSULATOR - BUSH TYPE Enquire To Order
Photo Part No Description Price (each) Stock
LR056079 INSULATOR - BUSH TYPE Enquire To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR087163 WASHER - DIFFERENTIAL MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR056077 WASHER - DIFFERENTIAL MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR056078 WASHER - DIFFERENTIAL MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR019019 SEAL - SPECIAL Enquire To Order
View All

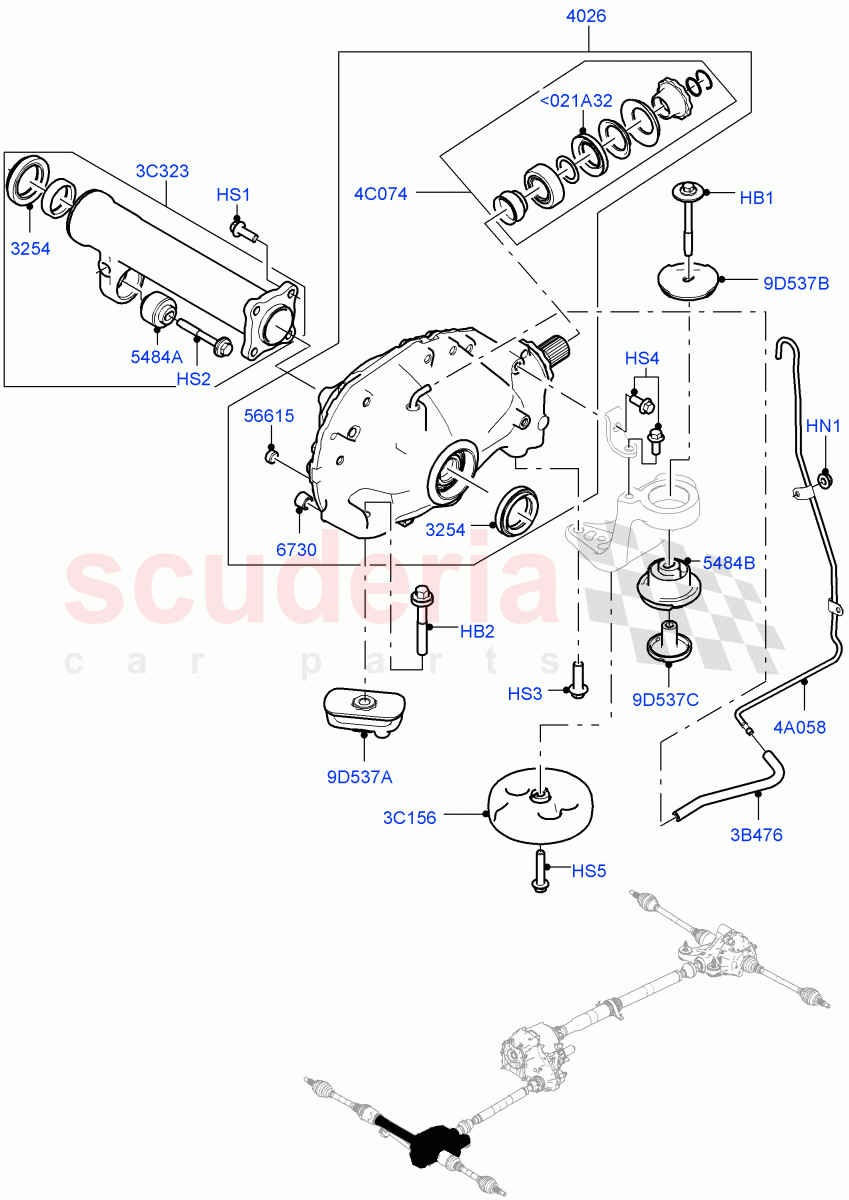

Front Axle Case (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo, 2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR019019
SEAL - SPECIAL
Oil 		- 1 Enquire
HB1 LR038977
BOLT
Hexagonal Head, M10 X 100 		- 1 Enquire
HB2 LR039049
BOLT
Hexagonal Head, M12 x 85MM 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 2 Enquire
HS1 TYP500100
SCREW
Hexagonal Head, M10 X 30MM 		- 4 Enquire
HS2 LR085630
SCREW
M10 x 75MM, Screw And Washer 		- 1 Enquire
HS3 LR050513
SCREW
Hexagonal Head, M12 x 40MM 		- 3 Enquire
HS4 LR050515
SCREW
Hexagonal Head, M10 x 26MM 		- 2 Enquire
HS5 FB110096
SCREW
HEX Flange, Hexagonal Head, M10 X 45 		- 1 Enquire
3B476 LR039394
HOSE - VENT 		- 1 Enquire
3C156 LR091706
DAMPER - DAMPING MASS
3.0 V6 D Gen2 Mono Turbo 		- 1 Enquire
3C156 LR062295
DAMPER - DAMPING MASS
2.0L I4 DSL MID DOHC AJ200 / To: HA999999 		- 1 Enquire
3C156 LR062297
DAMPER - DAMPING MASS
2.0L I4 DSL MID DOHC AJ200 / From: JA000001 		- 1 Enquire
3C323 LR052323
KIT - FDU TUBE
Front Drive Unit Tube, Includes Tube, Bearing, Seal, Bush And Screw 		- 1 Enquire
4A058 LR082620
HOSE - VENT
2.0L I4 DSL HIGH DOHC AJ200 / Breather Pipe 		- 1 Enquire
4A058 LR038826
HOSE - VENT
3.0 V6 D Gen2 Mono Turbo / Breather Pipe 		- 1 Enquire
4C074 LR067897
KIT - PINION REPAIR
Includes Seal 		- 1 Enquire
9D537A LR087163
WASHER - DIFFERENTIAL MOUNTING
Front 		- 1 Enquire
9D537B LR056077
WASHER - DIFFERENTIAL MOUNTING
Rear, Upper 		- 1 Enquire
9D537C LR056078
WASHER - DIFFERENTIAL MOUNTING
Lower, Rear 		- 1 Enquire
3254 LR158113
SEAL - OIL
Driveshaft 		- 2 Enquire
4026 LR089624
DIFFERENTIAL - FRONT
3.0 V6 D Gen2 Mono Turbo / New Part-Please Check For Reman Version 		- 1 Enquire
4026 LR089623
DIFFERENTIAL - FRONT
2.0L I4 DSL HIGH DOHC AJ200 / New Part-Please Check For Reman Version 		- 1 Enquire
4026 LR124997
DIFFERENTIAL - FRONT
3.0 V6 D Low MT ROW / Remanufactured Part 		- 1 Enquire
4026 LR125002
DIFFERENTIAL - FRONT
2.0L I4 DSL HIGH DOHC AJ200 / Remanufactured Part 		- 1 Enquire
5484A LR060048
INSULATOR - BUSH TYPE
To: HA999999 		- 1 Enquire
5484A LR090577
INSULATOR - BUSH TYPE
From: JA000001 		- 1 Enquire
5484B LR056079
INSULATOR - BUSH TYPE
Differential 		- 1 Enquire
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain 		- 1 Enquire
56615 TYB500060
PLUG - FILLER
Filler Plug 		- 1 Enquire
