Fuel Lines (Rear, Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL, Petrol Tank With Leak Detection, Pet Tank With Leak Det - Lrg Filter) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Rear, Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL, Petrol Tank With Leak Detection,...

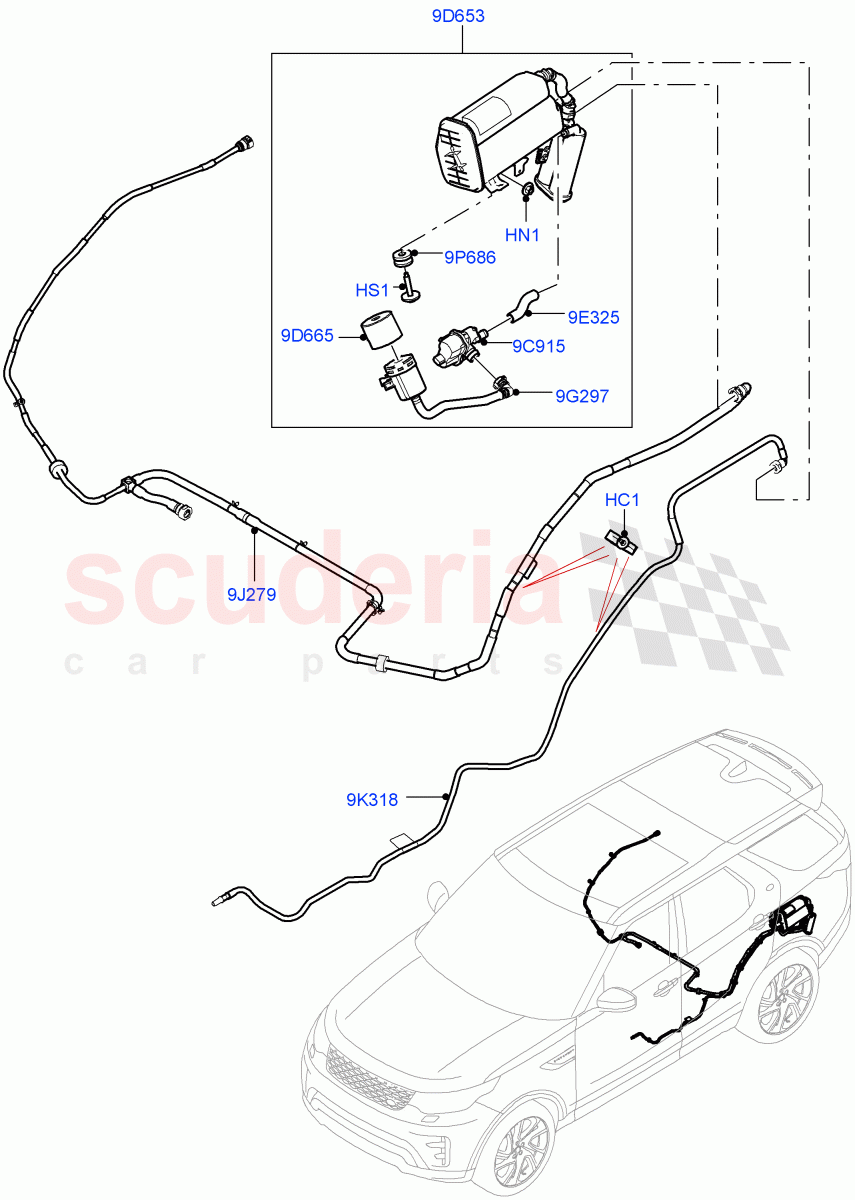

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501050	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113351	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order
	LR068424	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order
	LR113351	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR155089	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089869	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037482	HOSE - FUEL VAPOUR	Enquire	To Order
	LR037482	HOSE - FUEL VAPOUR	Enquire	To Order
	LR060302	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082439	TUBE - VENTILATION	Enquire	To Order
	LR138423	TUBE - VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082445	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102055	MOUNTING - RUBBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Double, Plastic / From: K2000001	-	4	Enquire
HN1	RYH500310	NUT AND WASHER - HEX.	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: K2000001	-	2	Enquire
HS1	RYP501050	SCREW - PAN - TORX	RYP501050 SCREW - PAN - TORX M6 X 25MM, Torx / From: K2000001	-	2	Enquire
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Charcoal Cannister / From: K2000001	-	1	Enquire
9D653	LR113351	RESERVOIR - FUEL VAPOUR SYSTEM	LR113351 RESERVOIR - FUEL VAPOUR SYSTEM Petrol Tank With Leak Detection / Charcoal Cannister, With Bracket / From: K2410095 / To: M2454411	-	1	Enquire
9D653	LR068424	RESERVOIR - FUEL VAPOUR SYSTEM	LR068424 RESERVOIR - FUEL VAPOUR SYSTEM Pet Tank With Leak Det - Lrg Filter / Charcoal Cannister, With Bracket / From: K2410095 / To: M2454411	-	1	Enquire
9D653	LR113351	RESERVOIR - FUEL VAPOUR SYSTEM	LR113351 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: K2000001 / To: K2410094	-	1	Enquire
9D653	LR155135	RESERVOIR - FUEL VAPOUR SYSTEM	LR155135 RESERVOIR - FUEL VAPOUR SYSTEM Pet Tank With Leak Det - Lrg Filter / Charcoal Cannister, With Bracket / From: M2454412	-	1	Enquire
9D653	LR155136	RESERVOIR - FUEL VAPOUR SYSTEM	LR155136 RESERVOIR - FUEL VAPOUR SYSTEM Petrol Tank With Leak Detection / Charcoal Cannister, With Bracket / From: M2454412	-	1	Enquire
9D665	LR155089	BRACKET	LR155089 BRACKET From: M2454412	-	1	Enquire
9E325	LR089869	HOSE - FUEL	LR089869 HOSE - FUEL From: K2000001	-	1	Enquire
9G297	LR037482	HOSE - FUEL VAPOUR	LR037482 HOSE - FUEL VAPOUR Canister vent / From: K2000001 / To: K2410094	-	1	Enquire
9G297	LR037482	HOSE - FUEL VAPOUR	LR037482 HOSE - FUEL VAPOUR Petrol Tank With Leak Detection / Canister vent / From: K2410095	-	1	Enquire
9G297	LR060302	HOSE - FUEL	LR060302 HOSE - FUEL Pet Tank With Leak Det - Lrg Filter / Canister vent / From: K2410095	-	1	Enquire
9J279	LR082439	TUBE - VENTILATION	LR082439 TUBE - VENTILATION From: K2000001 / To: L2419276	-	1	Enquire
9J279	LR138423	TUBE - VENTILATION	LR138423 TUBE - VENTILATION From: L2419277	-	1	Enquire
9K318	LR082445	TUBE - FUEL VAPOUR	LR082445 TUBE - FUEL VAPOUR From Carbon Canister To Fuel Lines / From: K2000001 / To: L2999999	-	1	Enquire
9P686	LR102055	MOUNTING - RUBBER	LR102055 MOUNTING - RUBBER From: K2000001	-	1	Enquire
