Fuel Lines (Front, Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Front, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR071705 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR010749 VALVE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR082759 MANIFOLD - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR011563 BRACKET - FUEL VAPOUR VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR086433 RETAINER - TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR082763 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR048475 BRACKET - FUEL LINES Enquire To Order
Photo Part No Description Price (each) Stock
LR082760 BRACKET - FUEL TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR086375 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM Enquire To Order
View All

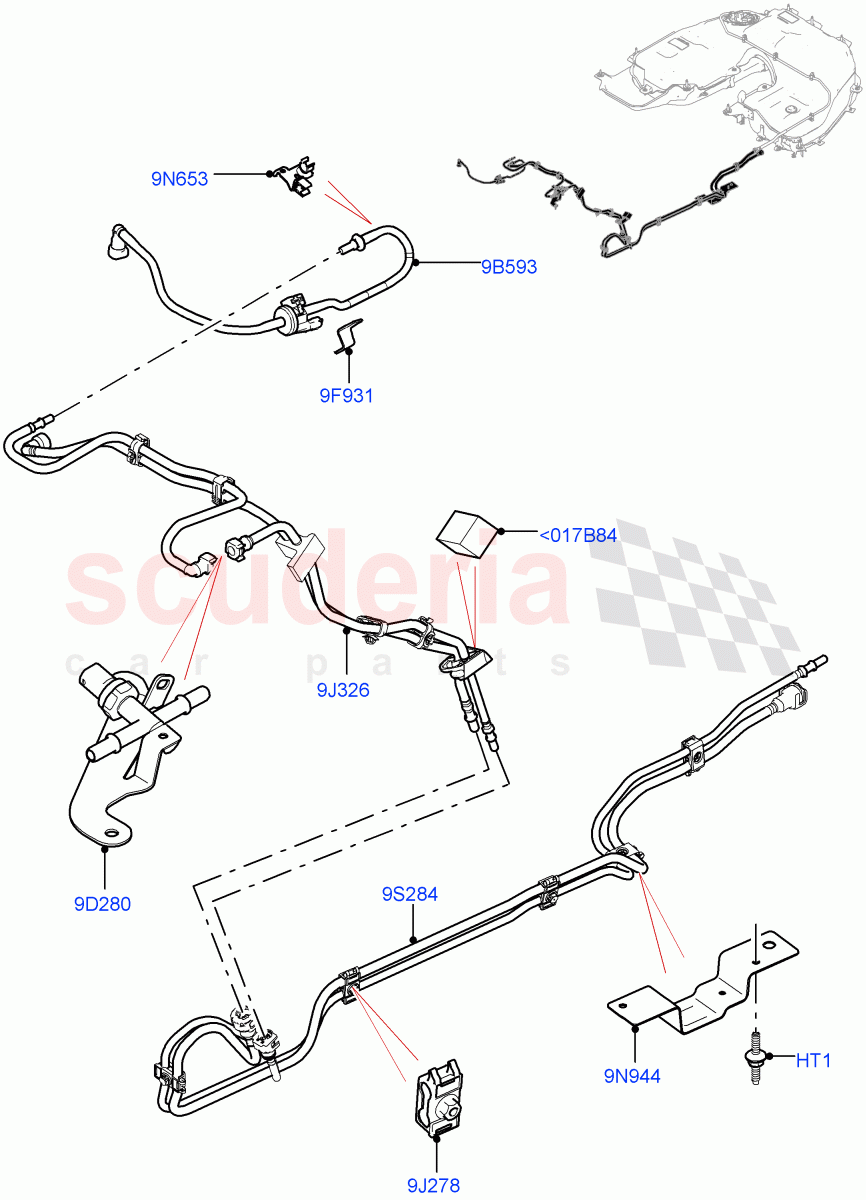

Fuel Lines (Front, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM 		- 1 Enquire
HT1 LR071705
STUD
M6 X 20 + M6 X 16 		- 1 Enquire
9B593 LR010749
VALVE - FUEL VAPOUR 		- 1 Enquire
9D280 LR082759
MANIFOLD - FUEL SUPPLY
Fuel Pressure Sensor 		- 1 Enquire
9F931 LR011563
BRACKET - FUEL VAPOUR VALVE 		- 1 Enquire
9J278 LR086433
RETAINER - TUBE 		- 5 Enquire
9J326 LR082763
PIPE - FUEL
Front 		- 1 Enquire
9N653 LR048475
BRACKET - FUEL LINES 		- 1 Enquire
9N944 LR082760
BRACKET - FUEL TUBE SUPPORT 		- 1 Enquire
9S284 LR086375
TUBE - FUEL SUPPLY AND VAPOUR
Centre 		- 1 Enquire
