Fuel Lines (Rear, Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol, Pet Tank With Leak Det - Lrg...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (Rear, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, Pet Tank With Leak Det - Lrg...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.23 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $2.97 IN STOCK
Photo Part No Description Price (each) Stock
RYP501050 SCREW - PAN - TORX $1.40 To Order
Photo Part No Description Price (each) Stock
LR082334 RESERVOIR - FUEL VAPOUR SYSTEM $571.62 To Order
Photo Part No Description Price (each) Stock
LR082445 TUBE - FUEL VAPOUR $68.03 To Order
Photo Part No Description Price (each) Stock
LR082335 HOSE - FUEL $47.94 To Order
Photo Part No Description Price (each) Stock
LR079268 HOSE - FUEL $66.12 To Order
Photo Part No Description Price (each) Stock
LR082442 TUBE - VENTILATION $92.33 To Order
Photo Part No Description Price (each) Stock
LR120590 TUBE - VENTILATION $38.36 To Order
View All

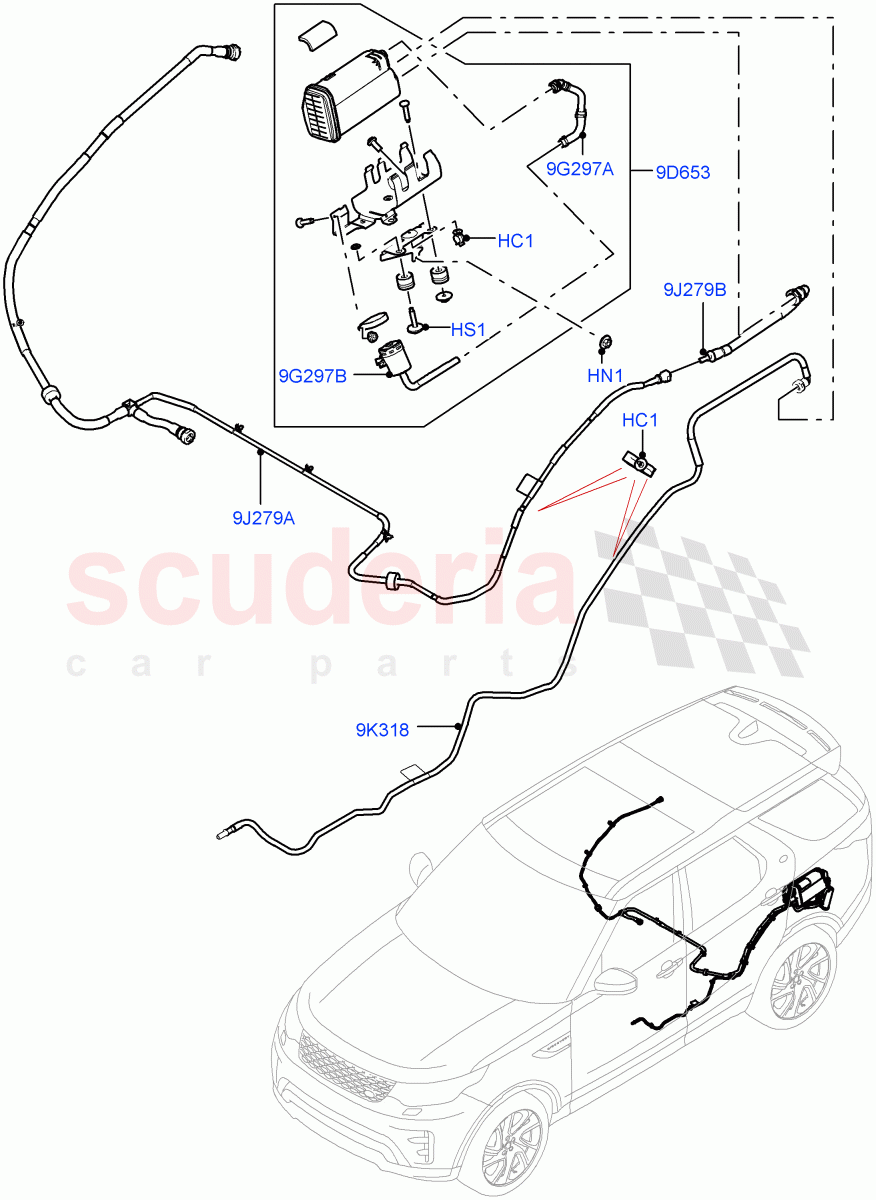

Fuel Lines (Rear, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL, Pet Tank With Leak Det - Lrg Filter) ((V) FROMKA000001, (V) TOKA081000) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR094032
CLIP - HOSE
Double, Plastic / From: KA000001 		$4.23 4
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: KA000001
IN STOCK 		$2.97 2
HS1 RYP501050
SCREW - PAN - TORX
M6 X 25MM, Torx / From: KA000001 		$1.40 2
9D653 LR082334
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: KA000001 		$571.62 1
9G297A LR082335
HOSE - FUEL
Canister vent / From: KA000001 		$47.94 1
9G297B LR079268
HOSE - FUEL
Canister vent / From: KA000001 		$66.12 1
9J279A LR082442
TUBE - VENTILATION
From: KA000001 		$92.33 1
9J279B LR120590
TUBE - VENTILATION
From: KA000001 		$38.36 1
9K318 LR082445
TUBE - FUEL VAPOUR
From Carbon Canister To Fuel Lines / From: KA000001 		$68.03 1
