Name: Turbocharger (Nitra Plant Build, Lubrication And Cooling) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)
Rating: 4.4 (1 reviews)

Turbocharger (Nitra Plant Build, Lubrication And Cooling) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Turbocharger (Nitra Plant Build, Lubrication And Cooling) (3.0L AJ20D6 Diesel High) ((V)...

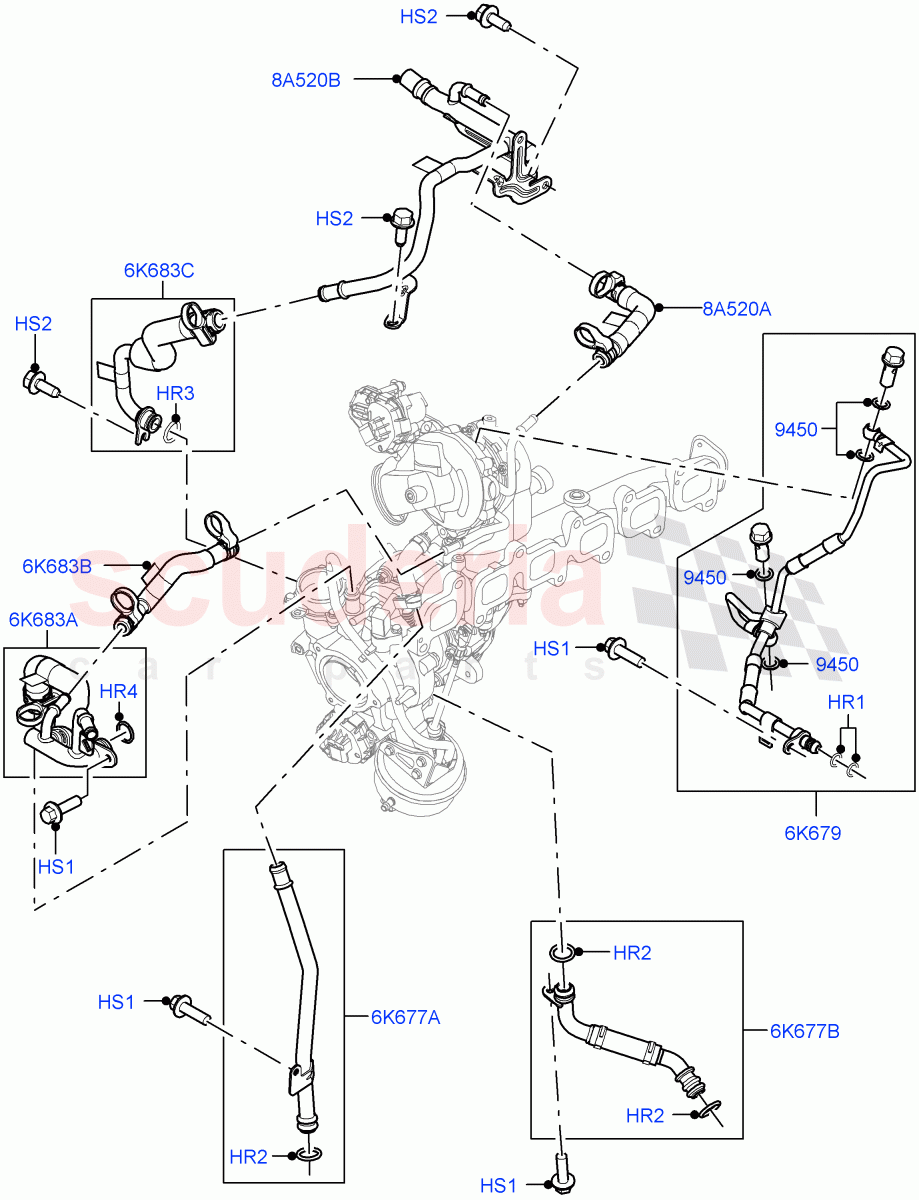

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR125467	RING - SEALING	$11.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125463	RING - SEALING	$12.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165689	RING - SEALING	$6.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR165690	RING - SEALING	$6.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122683	SCREW	$1.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125470	PIPE - OIL DRAIN	$47.37	To Order
	LR161061	PIPE - OIL DRAIN	$66.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125469	HOSE - OIL RETURN	$34.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125347	HOSE - OIL RETURN	$42.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125479	HOSE - WATER	$89.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125495	HOSE - INTERCOOLER	$214.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125478	HOSE - INTERCOOLER	$39.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125619	TUBE - WATER OUTLET	$203.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125620	TUBE - WATER OUTLET	$81.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR125467	RING - SEALING	LR125467 RING - SEALING 9.25MM x 1.78MM / From: M2000001	$11.56	2
HR2	LR125463	RING - SEALING	LR125463 RING - SEALING	$12.40	3
HR3	LR165689	RING - SEALING	LR165689 RING - SEALING Low Pressure Turbocharger,	$6.09	1
HR4	LR165690	RING - SEALING	LR165690 RING - SEALING Both Turbochargers,	$6.09	1
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: M2000001 IN STOCK	$1.54	4
HS2	LR122683	SCREW IN STOCK	LR122683 SCREW M6 X 16MM / From: M2000001 IN STOCK	$1.81	4
6K677A	LR125469	HOSE - OIL RETURN	LR125469 HOSE - OIL RETURN High Pressure Turbocharger / From: M2000001	$34.82	1
6K677B	LR125347	HOSE - OIL RETURN	LR125347 HOSE - OIL RETURN Low Pressure Turbocharger / From: M2000001	$42.03	1
6K679	LR125470	PIPE - OIL DRAIN	LR125470 PIPE - OIL DRAIN Both Turbochargers / From: M2000001 / To: N2457448	$47.37	1
6K679	LR161061	PIPE - OIL DRAIN	LR161061 PIPE - OIL DRAIN Both Turbochargers / From: N2457449	$66.07	1
6K683A	LR125479	HOSE - WATER	LR125479 HOSE - WATER Both Turbochargers, Water Inlet / From: M2000001	$89.31	1
6K683B	LR125495	HOSE - INTERCOOLER	LR125495 HOSE - INTERCOOLER High Pressure Turbocharger, Water Inlet / From: M2000001	$214.51	1
6K683C	LR125478	HOSE - INTERCOOLER	LR125478 HOSE - INTERCOOLER Low Pressure Turbocharger, Water Outlet / From: M2000001	$39.66	1
8A520A	LR125619	TUBE - WATER OUTLET	LR125619 TUBE - WATER OUTLET High Pressure Turbocharger, Water Outlet / From: M2000001	$203.32	1
8A520B	LR125620	TUBE - WATER OUTLET	LR125620 TUBE - WATER OUTLET Both Turbochargers, Water Outlet / From: M2000001	$81.18	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed / From: M2000001 IN STOCK	$4.48	4
