Name: Fuel Injectors And Pipes (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)
Rating: 4.7 (1 reviews)

Fuel Injectors And Pipes (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Injectors And Pipes (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

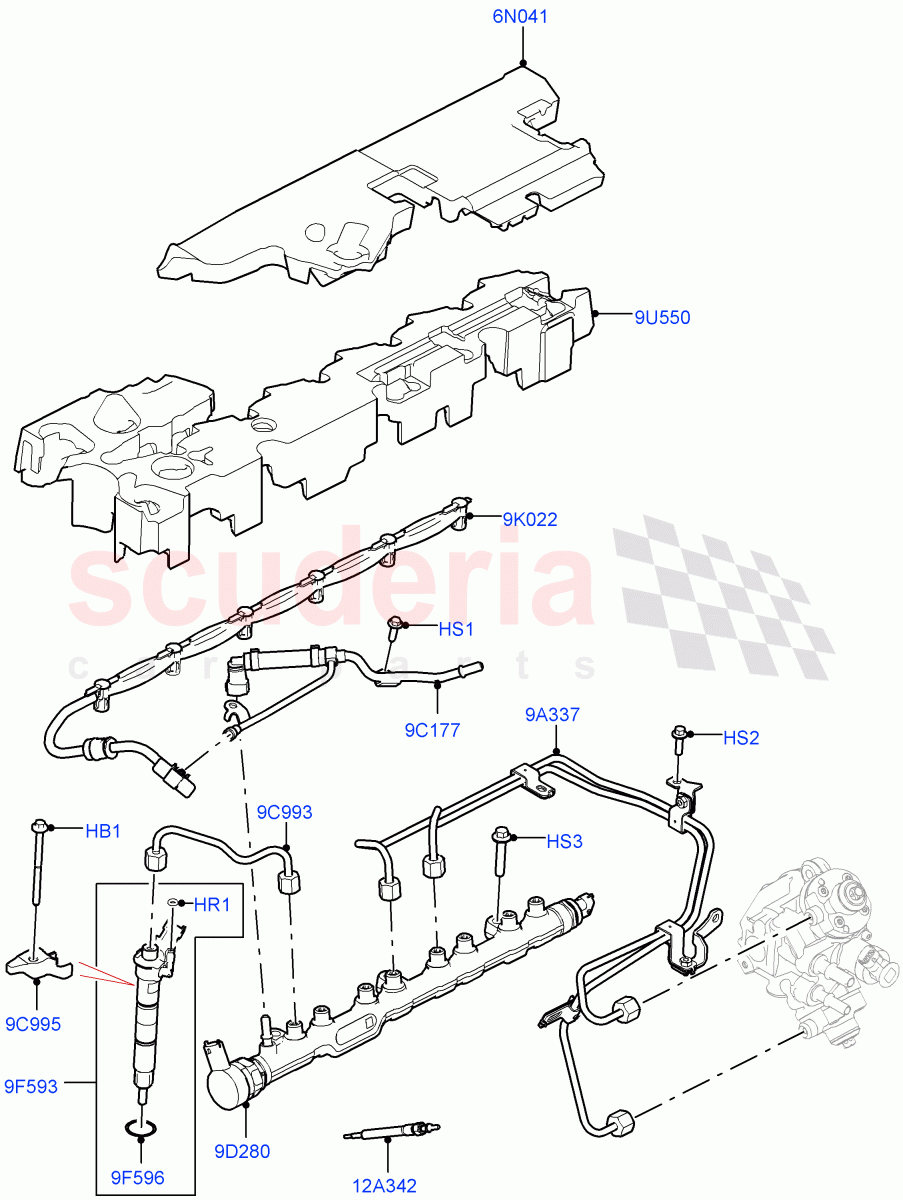

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR125523	BOLT	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR172461	O-RING	$5.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125600	INSULATOR - INTAKE MANIFOLD	$140.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125515	TUBE - FUEL PUMP	$165.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125508	PIPE - FUEL	$76.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125512	TUBE - FUEL	$39.17	To Order
	LR125513	TUBE - FUEL	$29.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125503	RETAINER - INJECTION VALVE	$5.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125514	MANIFOLD - FUEL SUPPLY	$301.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125522	INJECTOR - FUEL	$771.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093848	WASHER - SEALING	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125521	TUBE - LEAK OFF	$88.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125528	COVER - INSULATOR	$82.80	To Order
	LR154867	COVER - INSULATOR	$71.15	To Order
	LR163151	COVER - INSULATOR	$70.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128419	GLOW PLUG	$52.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR125523	BOLT	LR125523 BOLT M6 X 77.0 / From: M2000001	$2.46	6
HR1	LR172461	O-RING	LR172461 O-RING	$5.28	6
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: M2000001	$2.23	2
HS2	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: M2000001 IN STOCK	$1.54	4
HS3	LR073649	SCREW	LR073649 SCREW M8 x 40MM / From: M2000001	$2.40	3
6N041	LR125600	INSULATOR - INTAKE MANIFOLD	LR125600 INSULATOR - INTAKE MANIFOLD Top / From: M2000001	$140.00	1
9A337	LR125515	TUBE - FUEL PUMP	LR125515 TUBE - FUEL PUMP Fuel Supply / From: M2000001	$165.82	1
9C177	LR125508	PIPE - FUEL	LR125508 PIPE - FUEL From: M2000001	$76.14	1
9C993	LR125512	TUBE - FUEL	LR125512 TUBE - FUEL Cylinder No.1, Cylinder No.2, Cylinder No.4 / From: M2000001	$39.17	3
9C993	LR125513	TUBE - FUEL	LR125513 TUBE - FUEL Cylinder No.3, Cylinder No.5, Cylinder No.6 / From: M2000001	$29.11	3
9C995	LR125503	RETAINER - INJECTION VALVE	LR125503 RETAINER - INJECTION VALVE From: M2000001	$5.19	6
9D280	LR125514	MANIFOLD - FUEL SUPPLY	LR125514 MANIFOLD - FUEL SUPPLY From: M2000001	$301.00	1
9F593	LR125522	INJECTOR - FUEL	LR125522 INJECTOR - FUEL From: M2000001	$771.07	6
9F596	LR093848	WASHER - SEALING	LR093848 WASHER - SEALING From: M2000001	$4.25	6
9K022	LR125521	TUBE - LEAK OFF	LR125521 TUBE - LEAK OFF Leak Off / From: M2000001	$88.50	1
9U550	LR125528	COVER - INSULATOR	LR125528 COVER - INSULATOR Lower / From: M2000001 / To: M2447510	$82.80	1
9U550	LR154867	COVER - INSULATOR	LR154867 COVER - INSULATOR Lower / From: M2447511 / To: N2460227	$71.15	1
9U550	LR163151	COVER - INSULATOR	LR163151 COVER - INSULATOR Lower / From: N2460228	$70.92	1
12A342	LR128419	GLOW PLUG	LR128419 GLOW PLUG From: M2000001	$52.16	6
