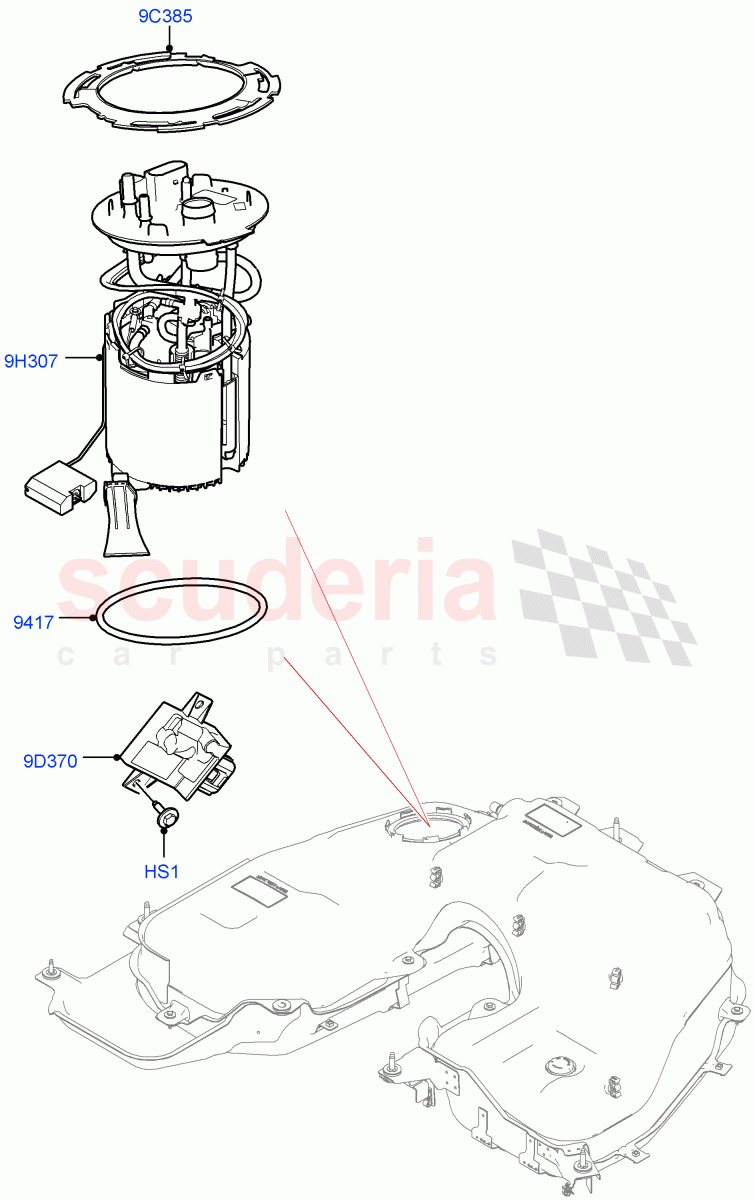

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR066438	SCREW	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.05	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	LR117478	RING - RETAINING	$32.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143017	PUMP - FUEL	$522.18	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR066438	SCREW	LR066438 SCREW Hexagonal Head, M6 X 20MM / From: M2000001	$2.94	2
9C385	LR117478	RING - RETAINING	LR117478 RING - RETAINING From: M2000001	$32.31	1
9D370	LR125267	CONTROL - FUEL PUMP DRIVE	LR125267 CONTROL - FUEL PUMP DRIVE From: M2000001 / To: N2455969	$153.75	1
9D370	LR159937	CONTROL - FUEL PUMP DRIVE	LR159937 CONTROL - FUEL PUMP DRIVE From: N2455970	$181.10	1
9H307	LR143017	PUMP - FUEL	LR143017 PUMP - FUEL From: M2000001	$522.18	1
9417	LR117476	GASKET ARRIVING SOON	LR117476 GASKET O-Ring / From: M2000001 ARRIVING SOON	$10.05	1
