Load Compartment Trim (Nitra Plant Build, Floor) (Less 3Rd Row Rear Seat, With 2 Seat...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Load Compartment Trim (Nitra Plant Build, Floor) (Less 3rd Row Rear Seat, With 2 Seat...

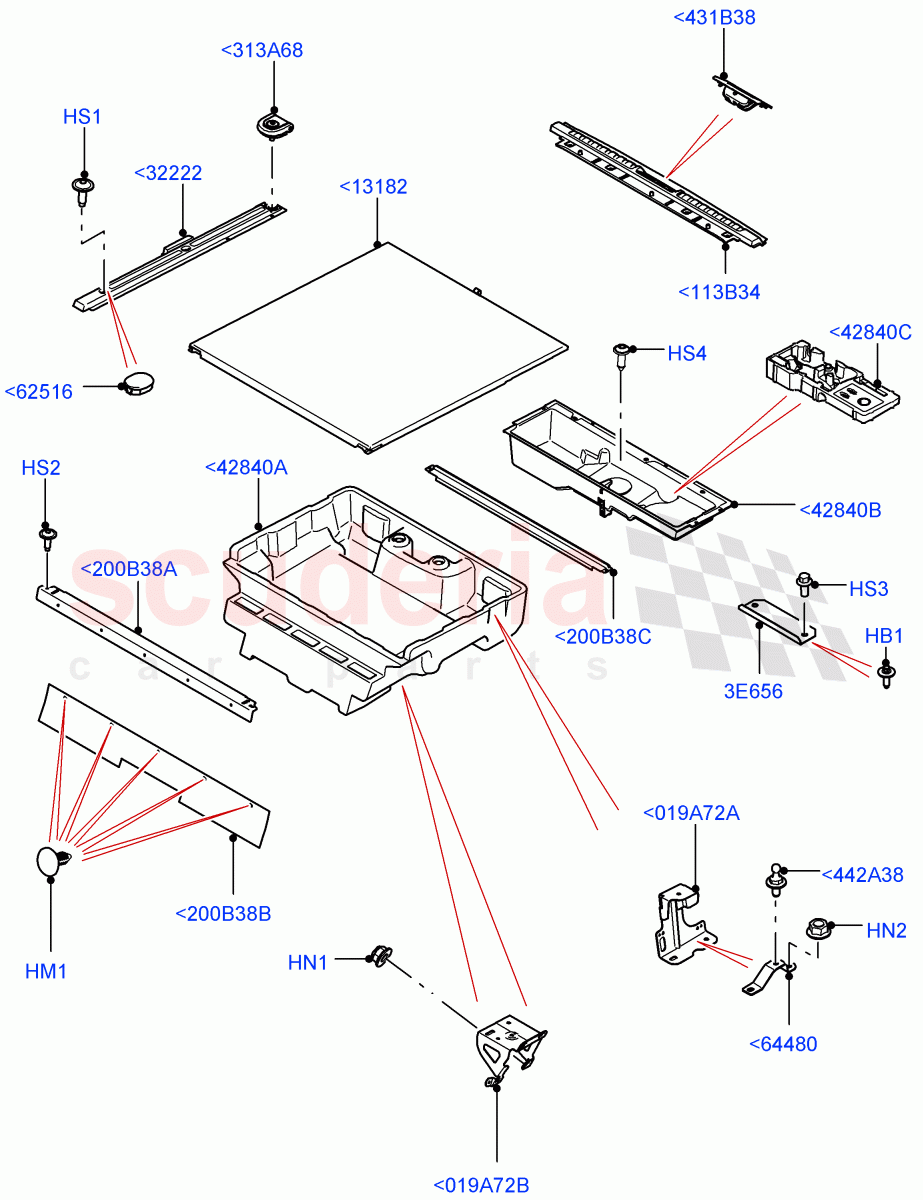

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR083355 BOLT AND WASHER - HEX.HEAD $2.20 To Order
Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL $1.07 IN STOCK
RZM500070 PIN - SPECIAL $1.07 IN STOCK
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.61 IN STOCK
Photo Part No Description Price (each) Stock
FN110046 NUT - HEX. $0.70 To Order
Photo Part No Description Price (each) Stock
LR028301 SCREW $1.19 To Order
Photo Part No Description Price (each) Stock
LR043873 SCREW - PAN - TORX $1.05 IN STOCK
Photo Part No Description Price (each) Stock
RYG500270 SCREW $2.70 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.74 IN STOCK
Photo Part No Description Price (each) Stock
LR087967 PLATE - SUPPORT $30.82 To Order
LR087967 PLATE - SUPPORT $30.82 To Order
Photo Part No Description Price (each) Stock
LR082102 CARPET - FLOOR - LOADING COMP. $541.54 To Order
LR082103 CARPET - FLOOR - LOADING COMP. $564.26 To Order
LR082103 CARPET - FLOOR - LOADING COMP. $564.26 To Order
Photo Part No Description Price (each) Stock
LR081290 RAIL - LUGGAGE COMPARTMENT - INSERT $176.60 To Order
LR081290 RAIL - LUGGAGE COMPARTMENT - INSERT $176.60 To Order
LR081294 RAIL - LUGGAGE COMPARTMENT - INSERT $176.60 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083886 CAP - PROTECTIVE $16.02 To Order
LR083886 CAP - PROTECTIVE $16.02 To Order
LR083886 CAP - PROTECTIVE $16.02 To Order
Photo Part No Description Price (each) Stock
LR082863 BRACKET - LOAD FLOOR $13.72 To Order
Photo Part No Description Price (each) Stock
LR107515 PLATE - TAILGATE RECLINE $168.01 To Order
LR107516 PLATE - TAILGATE RECLINE $168.01 To Order
LR107516 PLATE - TAILGATE RECLINE $168.01 To Order
Photo Part No Description Price (each) Stock
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $50.30 To Order
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $50.30 To Order
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN $50.30 To Order
Photo Part No Description Price (each) Stock
LR082119 FOAM PAD - LOADFLOOR $270.00 To Order
LR138068 FOAM PAD - LOADFLOOR $270.00 To Order
LR138068 FOAM PAD - LOADFLOOR $270.00 To Order
Photo Part No Description Price (each) Stock
LR082120 FOAM PAD - LOADFLOOR $290.88 To Order
LR082121 FOAM PAD - LOADFLOOR $285.18 To Order
LR082122 FOAM PAD - LOADFLOOR $290.88 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR105996 FOAM PAD - LOADFLOOR $75.77 To Order
Photo Part No Description Price (each) Stock
LR088765 COVER - LATCH $37.44 To Order
LR088766 COVER - LATCH $34.98 To Order
LR088766 COVER - LATCH $34.98 To Order
Photo Part No Description Price (each) Stock
LR138284 STUD - BALL $6.20 To Order
Photo Part No Description Price (each) Stock
LR082127 BRACKET - LUGGAGE RAILS SUPPORT $95.95 To Order
LR082132 BRACKET - LUGGAGE RAILS SUPPORT $95.98 To Order
LR082132 BRACKET - LUGGAGE RAILS SUPPORT $95.98 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR098307 BRACKET - LUGGAGE RAILS SUPPORT $115.44 To Order
LR098310 BRACKET - LUGGAGE RAILS SUPPORT $115.39 To Order
LR098310 BRACKET - LUGGAGE RAILS SUPPORT $115.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082143 SUPPORT - LOAD COMPARTMENT PANELS $220.42 To Order
LR082143 SUPPORT - LOAD COMPARTMENT PANELS $220.42 To Order
Photo Part No Description Price (each) Stock
LR082144 SUPPORT - LOAD COMPARTMENT PANELS $95.33 To Order
LR082144 SUPPORT - LOAD COMPARTMENT PANELS $95.33 To Order
Photo Part No Description Price (each) Stock
LR082145 SUPPORT - LOAD COMPARTMENT PANELS $97.42 To Order
LR082145 SUPPORT - LOAD COMPARTMENT PANELS $97.42 To Order
View All
Load Compartment Trim (Nitra Plant Build, Floor) (Less 3rd Row Rear Seat, With 2 Seat Configuration, With 5 Seat Configuration) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<019A72A LR082127
BRACKET - LUGGAGE RAILS SUPPORT
With 5 Seat Configuration / RH / From: K2000001 / To: L2999999 		$95.95 1
<019A72A LR082132
BRACKET - LUGGAGE RAILS SUPPORT
With 5 Seat Configuration / LH / From: K2000001 / To: L2999999 		$95.98 1
<019A72A LR082132
BRACKET - LUGGAGE RAILS SUPPORT
LH / From: M2000001 		$95.98 1
<019A72A LR082127
BRACKET - LUGGAGE RAILS SUPPORT
RH / From: M2000001 		$95.95 1
<019A72B LR098307
BRACKET - LUGGAGE RAILS SUPPORT
With 5 Seat Configuration / RH / From: K2000001 / To: L2999999 		$115.44 1
<019A72B LR098310
BRACKET - LUGGAGE RAILS SUPPORT
With 5 Seat Configuration / LH / From: K2000001 / To: L2999999 		$115.39 1
<019A72B LR098310
BRACKET - LUGGAGE RAILS SUPPORT
LH / From: M2000001 		$115.39 1
<019A72B LR098307
BRACKET - LUGGAGE RAILS SUPPORT
RH / From: M2000001 		$115.44 1
<113B34 LR107515
PLATE - TAILGATE RECLINE
Interior Espresso Carpet, Load Floor - Standard / From: K2000001 / To: L2999999 		$168.01 1
<113B34 LR107516
PLATE - TAILGATE RECLINE
Int Ebony Carpet, Load Floor - Standard / From: K2000001 / To: L2999999 		$168.01 1
<113B34 LR107516
PLATE - TAILGATE RECLINE
Load Floor - Standard / From: M2000001 		$168.01 1
<200B38A LR082143
SUPPORT - LOAD COMPARTMENT PANELS
With 2 Seat Configuration / From: K2000001 / To: L2999999 		$220.42 1
<200B38A LR082143
SUPPORT - LOAD COMPARTMENT PANELS
From: M2000001 		$220.42 1
<200B38B LR082144
SUPPORT - LOAD COMPARTMENT PANELS
With 5 Seat Configuration / From: K2000001 / To: L2999999 		$95.33 1
<200B38B LR082144
SUPPORT - LOAD COMPARTMENT PANELS
From: M2000001 		$95.33 1
<200B38C LR082145
SUPPORT - LOAD COMPARTMENT PANELS
With 5 Seat Configuration / From: K2000001 / To: L2999999 		$97.42 1
<200B38C LR082145
SUPPORT - LOAD COMPARTMENT PANELS
60/40 Load Through With Slide / From: M2000001 		$97.42 1
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
Load Retainer Luggage Rails / From: K2000001 / To: K2999999 		$50.30 2
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
Less Load Retainer Luggage / From: K2000001 / To: K2999999 		$50.30 4
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
From: L2000001 		$50.30 4
<431B38 LR088765
COVER - LATCH
Interior Espresso Carpet, Load Floor - Standard / From: K2000001 / To: L2999999 		$37.44 1
<431B38 LR088766
COVER - LATCH
Int Ebony Carpet, Load Floor - Standard / From: K2000001 / To: L2999999 		$34.98 1
<431B38 LR088766
COVER - LATCH
Load Floor - Standard / From: M2000001 		$34.98 1
<442A38 LR138284
STUD - BALL
M8 x 19MM / From: K2000001 		$6.20 2
<13182 LR082102
CARPET - FLOOR - LOADING COMP.
Interior Espresso Carpet, With 5 Seat Configuration / From: K2000001 / To: L2999999 		$541.54 1
<13182 LR082103
CARPET - FLOOR - LOADING COMP.
Int Ebony Carpet, With 5 Seat Configuration / From: K2000001 / To: L2999999 		$564.26 1
<13182 LR082103
CARPET - FLOOR - LOADING COMP.
60/40 Load Through With Slide / From: M2000001 		$564.26 1
<32222 LR081290
RAIL - LUGGAGE COMPARTMENT - INSERT
Less Load Retainer Luggage, With 5 Seat Configuration / RH / From: K2000001 / To: K2999999 		$176.60 1
<32222 LR081290
RAIL - LUGGAGE COMPARTMENT - INSERT
With 5 Seat Configuration / RH / From: L2000001 / To: L2999999 		$176.60 1
<32222 LR081294
RAIL - LUGGAGE COMPARTMENT - INSERT
Less Load Retainer Luggage, With 5 Seat Configuration / LH / From: K2000001 / To: K2999999 		$176.60 1
<32222 LR081294
RAIL - LUGGAGE COMPARTMENT - INSERT
With 5 Seat Configuration / LH / From: L2000001 / To: L2999999 		$176.60 1
<32222 LR112510
LUGGAGE RAILS
Less Load Retainer Luggage, With 2 Seat Configuration / RH / From: K2000001 / To: K2999999 		$190.57 1
<32222 LR112510
LUGGAGE RAILS
With 2 Seat Configuration / RH / From: L2000001 / To: L2999999 		$190.57 1
<32222 LR112511
LUGGAGE RAILS
Less Load Retainer Luggage, With 2 Seat Configuration / LH / From: K2000001 / To: K2999999 		$190.57 1
<32222 LR112511
LUGGAGE RAILS
With 2 Seat Configuration / LH / From: L2000001 / To: L2999999 		$190.57 1
<32222 LR081294
RAIL - LUGGAGE COMPARTMENT - INSERT
60/40 Load Through With Slide / LH / From: M2000001 		$176.60 1
<32222 LR081290
RAIL - LUGGAGE COMPARTMENT - INSERT
60/40 Load Through With Slide / RH / From: M2000001 		$176.60 1
<32222 LR112510
LUGGAGE RAILS
Less Second Row Seats / RH / From: M2000001 		$190.57 1
<32222 LR112511
LUGGAGE RAILS
Less Second Row Seats / LH / From: M2000001 		$190.57 1
<42840A LR082119
FOAM PAD - LOADFLOOR
With 5 Seat Configuration / Stowage Box / From: K2000001 / To: L2434041 		$270.00 1
<42840A LR138068
FOAM PAD - LOADFLOOR
With 5 Seat Configuration / Stowage Box / From: L2434042 / To: L2999999 		$270.00 1
<42840A LR138068
FOAM PAD - LOADFLOOR
Less 3rd Row Rear Seat / From: M2000001 		$270.00 1
<42840B LR082120
FOAM PAD - LOADFLOOR
With Standard Duty Coil Spring Susp / From: K2000001 		$290.88 1
<42840B LR082121
FOAM PAD - LOADFLOOR
Hi Line Audio System - 600 W, With Four Corner Air Suspension / From: K2000001 		$285.18 1
<42840B LR082122
FOAM PAD - LOADFLOOR
Standard Audio (Base), With Four Corner Air Suspension / From: K2000001 / To: L2999999 		$290.88 1
<42840B LR082122
FOAM PAD - LOADFLOOR
Less Engine Order Cancellation, Standard Audio (Base), With Four Corner Air Suspension / From: M2000001 		$290.88 1
<42840B LR082121
FOAM PAD - LOADFLOOR
Engine Order Cancellation Gen 1, Standard Audio (Base), With Four Corner Air Suspension / From: M2000001 		$285.18 1
<42840C LR105996
FOAM PAD - LOADFLOOR
Tow Hitch Receiver NAS / From: K2000001 		$75.77 1
<62516 LR083886
CAP - PROTECTIVE
Less Load Retainer Luggage, With 5 Seat Configuration / From: K2000001 / To: K2999999 		$16.02 4
<62516 LR083886
CAP - PROTECTIVE
With 5 Seat Configuration / From: L2000001 / To: L2999999 		$16.02 4
<62516 LR083886
CAP - PROTECTIVE
60/40 Load Through With Slide / From: M2000001 		$16.02 4
<64480 LR082863
BRACKET - LOAD FLOOR
From: K2000001 		$13.72 1
HB1 LR083355
BOLT AND WASHER - HEX.HEAD
M10 X 30MM / From: M2000001 		$2.20 2
HM1 RZM500070
PIN - SPECIAL
With 5 Seat Configuration / 6.4 X 20.4, Push Pin / From: K2000001 / To: L2999999
IN STOCK 		$1.07 5
HM1 RZM500070
PIN - SPECIAL
6.4 X 20.4, Push Pin / From: M2000001
IN STOCK 		$1.07 5
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: K2000001
IN STOCK 		$0.61 8
HN2 FN110046
NUT - HEX.
M10 / From: K2000001 		$0.70 4
HS1 LR028301
SCREW
M8 X 21MM, Pan Head / From: K2000001 		$1.19 6
HS2 LR043873
SCREW - PAN - TORX
M6 X 16MM, Torx / From: K2000001
IN STOCK 		$1.05 4
HS3 RYG500270
SCREW
Hexagonal Head, M10 X 25MM / From: K2000001 / To: L2999999 		$2.70 2
HS4 PYP500140
SCREW
4.2 x 13MM, Torx / From: K2000001
IN STOCK 		$0.74 7
3E656 LR087967
PLATE - SUPPORT
With 5 Seat Configuration / From: K2000001 / To: L2999999 		$30.82 1
3E656 LR087967
PLATE - SUPPORT
From: M2000001 		$30.82 1
