Console - Floor (Internal Components, Nitra Plant Build) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Console - Floor (Internal Components, Nitra Plant Build) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR126059 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR036723 SCREW - OVAL HEAD Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR142803 MOULDING - FLOOR CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR142752 TRAY - CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR142480 BRACKET - CONSOLE Enquire To Order
LR155960 BRACKET - CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR149838 CONSOLE - CENTRE FLOOR Enquire To Order
LR142483 CONSOLE - CENTRE FLOOR Enquire To Order
LR154821 CONSOLE - CENTRE FLOOR Enquire To Order
...and 2 more part variants. See table on right for more details.
View All

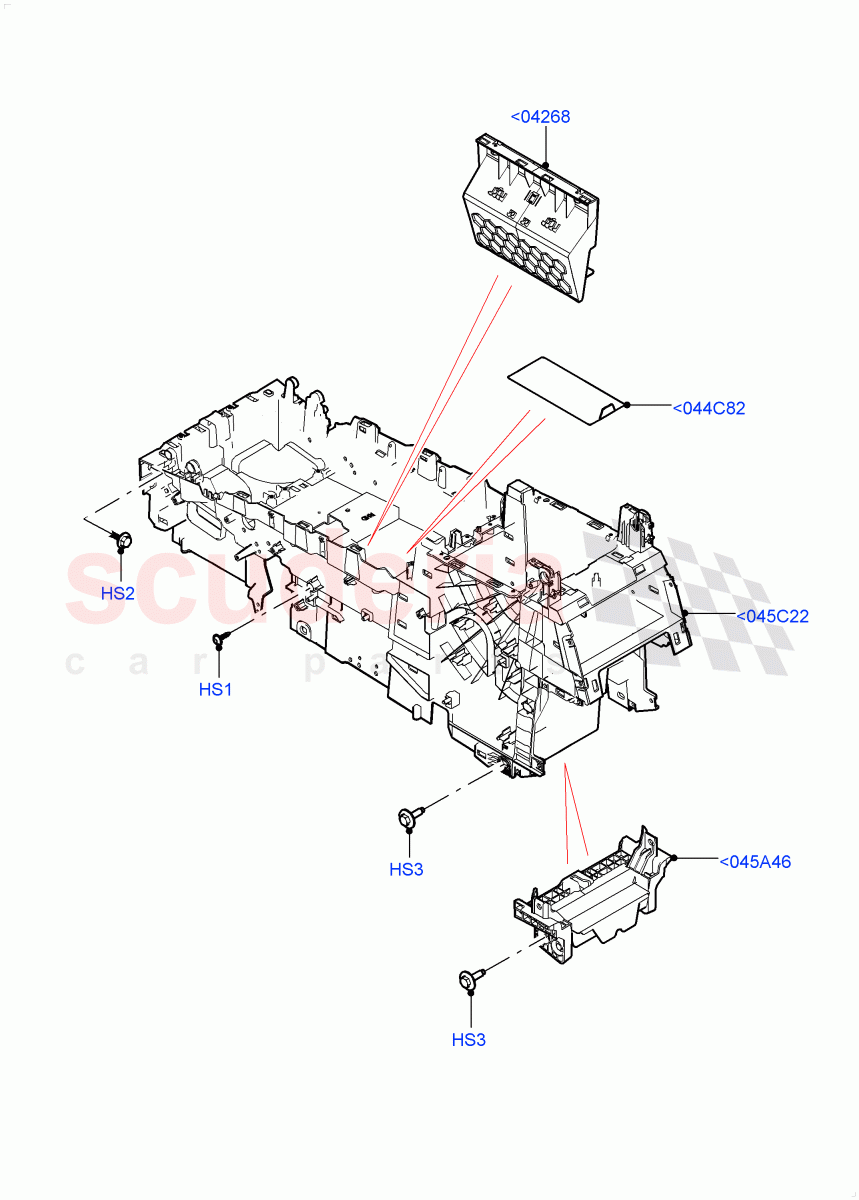

Console - Floor (Internal Components, Nitra Plant Build) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044C82 LR142752
TRAY - CONSOLE
Rubber Mat / From: M2000001 		- 1 Enquire
<045A46 LR142480
BRACKET - CONSOLE
From: M2000001 / To: M2446800 		- 1 Enquire
<045A46 LR155960
BRACKET - CONSOLE
From: M2446801 		- 1 Enquire
<045C22 LR149838
CONSOLE - CENTRE FLOOR
Console-w/Armrest + Cooler Box / From: M2000001 / To: N2103108 		- 1 Enquire
<045C22 LR142483
CONSOLE - CENTRE FLOOR
Full Floor Console With Armrest / From: M2000001 / To: M2447121 		- 1 Enquire
<045C22 LR154821
CONSOLE - CENTRE FLOOR
Full Floor Console With Armrest / From: M2447122 / To: N2103108 		- 1 Enquire
<045C22 LR162690
CONSOLE - CENTRE FLOOR
Console-w/Armrest + Cooler Box / From: N2103109 		- 1 Enquire
<045C22 LR162689
CONSOLE - CENTRE FLOOR
Full Floor Console With Armrest / From: N2103109 		- 1 Enquire
<04268 LR142803
MOULDING - FLOOR CONSOLE
From: M2000001 		- 1 Enquire
HS1 LR126059
SCREW
5X16 / From: M2000001 		- - Enquire
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16 / From: M2000001 		- 2 Enquire
HS3 AYP500110
SCREW
Bolt And Washer, Bracket To Console, Hexagonal Head, M6 X 20MM / From: M2000001 		- 4 Enquire
