Instrument Panel (Internal Components, Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Instrument Panel (Internal Components, Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DYG000052 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR111110 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR109936 CLIP Enquire To Order
LR109936 CLIP Enquire To Order
LR109936 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
DBP6286 Hardware - Miscellaneous Enquire To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR036724 NUT - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR027995 NUT Enquire To Order
Photo Part No Description Price (each) Stock
AYP500031 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR036723 SCREW - OVAL HEAD Enquire To Order
LR036723 SCREW - OVAL HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR036722 SCREW - FLAT ROUND HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR025172 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR036717 BRACKET - ENERGY ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR036716 BRACKET - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR081203 MOULDING - INSTRUMENT PANEL Enquire To Order
LR099650 MOULDING - INSTRUMENT PANEL Enquire To Order
LR109131 MOULDING - INSTRUMENT PANEL Enquire To Order
Photo Part No Description Price (each) Stock
LR081202 MOULDING - INSTRUMENT PANEL Enquire To Order
LR081202 MOULDING - INSTRUMENT PANEL Enquire To Order
LR081202 MOULDING - INSTRUMENT PANEL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036719 REINFORCEMENT - INSTRUMENT PANEL Enquire To Order
LR036720 REINFORCEMENT - INSTRUMENT PANEL Enquire To Order
LR104046 REINFORCEMENT - INSTRUMENT PANEL Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

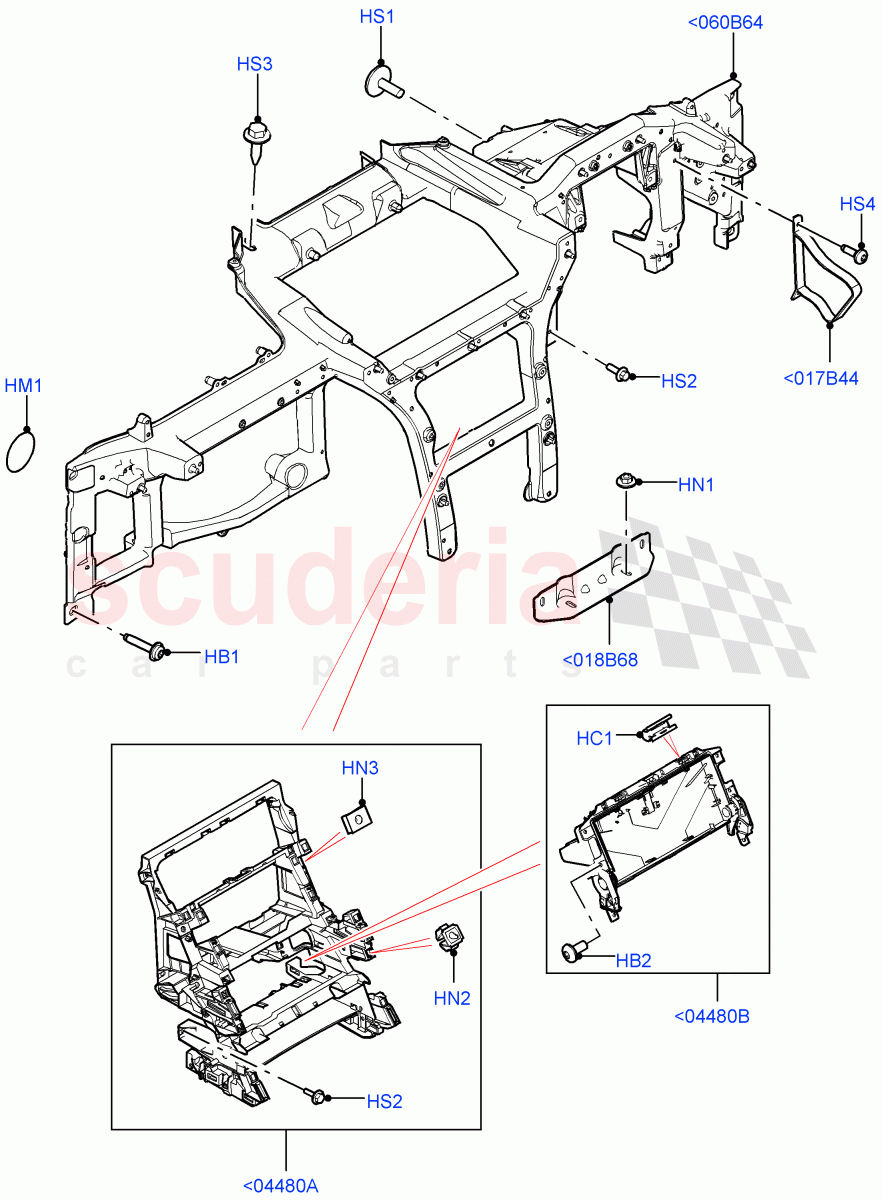

Instrument Panel (Internal Components, Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B44 LR036717
BRACKET - ENERGY ABSORBER
(+)"CDN/MEX/USA" 		- 2 Enquire
<018B68 LR036716
BRACKET - INSTRUMENT PANEL
Lower 		- 1 Enquire
<060B64 LR036719
REINFORCEMENT - INSTRUMENT PANEL
LHD / To: HA002674 		- 1 Enquire
<060B64 LR036720
REINFORCEMENT - INSTRUMENT PANEL
RHD / To: HA002674 		- 1 Enquire
<060B64 LR104046
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: HA002675 / To: JA077319 		- 1 Enquire
<060B64 LR104045
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: HA002675 / To: JA077319 		- 1 Enquire
<060B64 LR117225
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: JA077320 		- 1 Enquire
<060B64 LR117224
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: JA077320 		- 1 Enquire
<04480A LR081203
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / To: HA003051 		- 1 Enquire
<04480A LR099650
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: HA003052 / To: HA999999 		- 1 Enquire
<04480A LR109131
MOULDING - INSTRUMENT PANEL
Centre Stack Bracket / From: JA000001 		- 1 Enquire
<04480B LR081202
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, With Trunk Stowage Bin / To: JA999999 		- 1 Enquire
<04480B LR081202
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, With Standard Glove Box / From: KA000001 / To: KA999999 		- 1 Enquire
<04480B LR081202
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, With DVD Player, With Standard Glove Box / From: LA000001 		- 1 Enquire
<04480B LR133557
MOULDING - INSTRUMENT PANEL
Hidden Central IP Stowage, Less DVD Player, With Standard Glove Box / From: LA000001 		- 1 Enquire
HB1 DYG000052
BOLT
Solihull (UK) / Frame To Body, M8 X 45MM, Rear, RH And LH, Side, Torx 		- 4 Enquire
HB2 LR111110
BOLT
Hidden Central IP Stowage / M4 x 9MM 		- 4 Enquire
HC1 LR109936
CLIP
Less Hidden Central IP Stowage / To: JA999999 		- 3 Enquire
HC1 LR109936
CLIP
Hidden Central IP Stowage, With Standard Glove Box / From: KA000001 / To: KA999999 		- 3 Enquire
HC1 LR109936
CLIP
Hidden Central IP Stowage, With DVD Player, With Standard Glove Box / From: LA000001 		- 3 Enquire
HM1 DBP6286
Hardware - Miscellaneous 		- 4 Enquire
HN1 RYH500310
NUT AND WASHER - HEX.
Bracket, Hexagonal Head, Lower, M6, Nut And Washer 		- 2 Enquire
HN2 LR036724
NUT - SPRING
Attaches Moulding, Centre Stack Bracket, Inner, M4.2 		- 1 Enquire
HN3 LR027995
NUT
Attaches Moulding, Centre Stack Bracket, M6 X 0.7 - 4, Nut "U" Spring, Outer 		- 4 Enquire
HS1 AYP500031
SCREW
Centre, Frame To Body, M8 X 25MM, Rear 		- 1 Enquire
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Rear, Upper 		- 4 Enquire
HS2 LR036723
SCREW - OVAL HEAD
6 X 1.42 X 16, Bracket to frame, Lower 		- 2 Enquire
HS3 LR036722
SCREW - FLAT ROUND HEAD
Frame To Body, HEX Flange, M8 X 30, Rear, Upper 		- 2 Enquire
HS4 LR025172
SCREW
Bracket to frame, Energy Absorber, M6 X 16MM 		- 4 Enquire
