Windscreen Wiper (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Windscreen Wiper (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500910 BOLT $0.50 To Order
Photo Part No Description Price (each) Stock
LR033021 NUT AND WASHER - HEX. $1.73 To Order
Photo Part No Description Price (each) Stock
LR083136 WIPER MOTOR AND MECHANISM $451.11 To Order
LR083137 WIPER MOTOR AND MECHANISM $454.30 To Order
LR098363 WIPER MOTOR AND MECHANISM $428.16 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083271 BLADE - WIPER $43.82 To Order
LR083272 BLADE - WIPER $43.82 To Order
LR083266 BLADE - WIPER $41.71 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083263 ARM - WIPER $74.96 To Order
LR083265 ARM - WIPER $73.53 To Order
LR083264 ARM - WIPER $74.96 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033027 CAP - WIPER ARM $4.74 To Order
View All

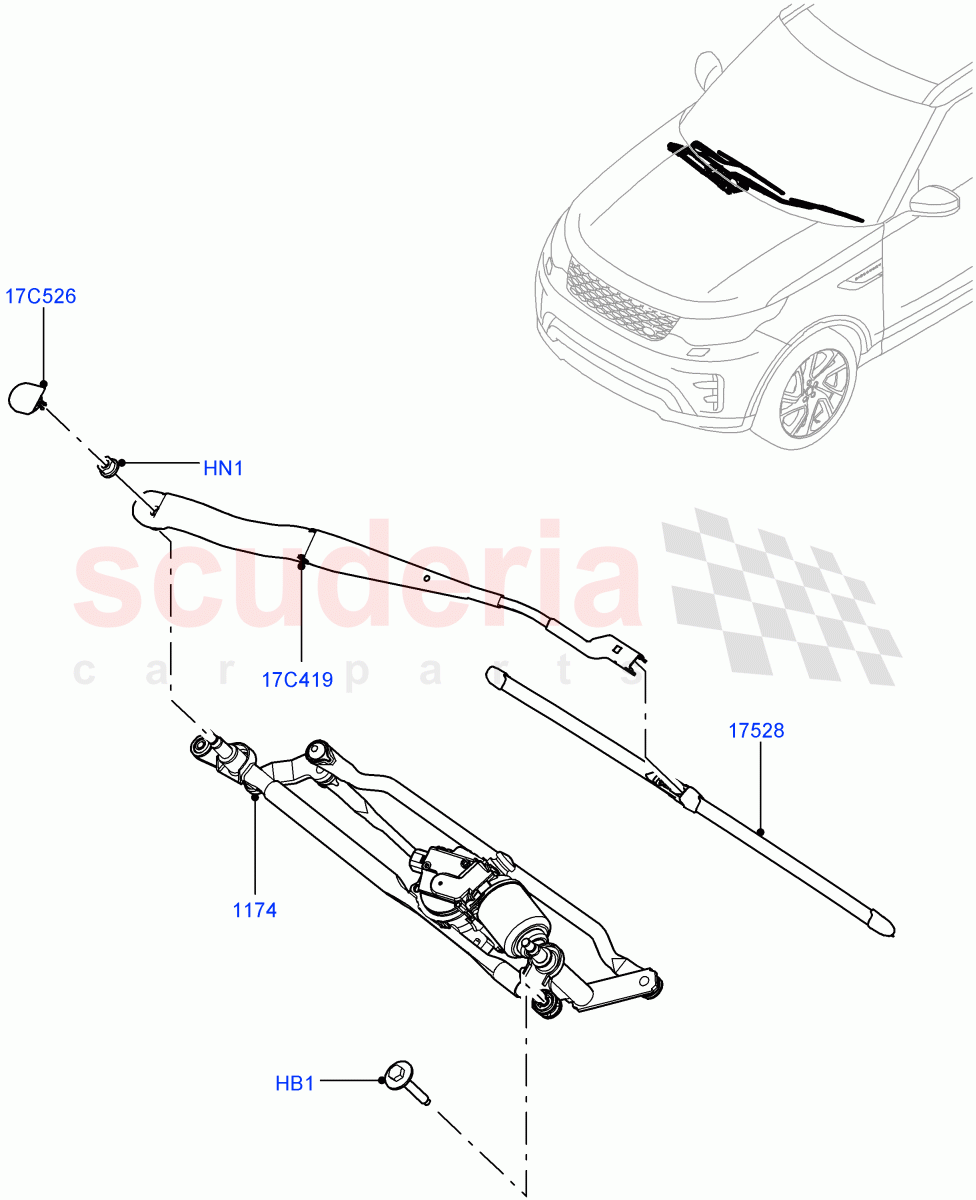

Windscreen Wiper (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500910
BOLT
Bolt And Washer, Hexagonal Head, M6 x 35MM 		$0.50 2
HN1 LR033021
NUT AND WASHER - HEX.
M10 		$1.73 2
17C419 LR083263
ARM - WIPER
RHD / RH / To: HA999999 		$74.96 1
17C419 LR083265
ARM - WIPER
RHD / LH 		$73.53 1
17C419 LR083264
ARM - WIPER
LHD / LH / To: HA999999 		$74.96 1
17C419 LR083268
ARM - WIPER
LHD / RH 		$76.88 1
17C419 LR098273
ARM - WIPER
LHD / LH / From: JA000001 / To: JA075714 		$71.36 1
17C419 LR098272
ARM - WIPER
RHD / RH / From: JA000001 / To: JA075714 		$71.36 1
17C419 LR113390
ARM - WIPER
RHD / RH / From: JA075715 		$70.34 1
17C419 LR113391
ARM - WIPER
LHD / LH / From: JA075715 		$71.36 1
17C526 LR033027
CAP - WIPER ARM 		$4.74 2
1174 LR083136
WIPER MOTOR AND MECHANISM
LHD / Windshield Wiper, Includes Motor And Linkage / To: HA999999 		$451.11 1
1174 LR083137
WIPER MOTOR AND MECHANISM
RHD / Windshield Wiper, Includes Motor And Linkage / To: HA999999 		$454.30 1
1174 LR098363
WIPER MOTOR AND MECHANISM
LHD / Windshield Wiper, Includes Motor And Linkage / From: JA000001 / To: JA071542 		$428.16 1
1174 LR098364
WIPER MOTOR AND MECHANISM
RHD / Windshield Wiper, Includes Motor And Linkage / From: JA000001 / To: JA071542 		$409.55 1
1174 LR113392
WIPER MOTOR AND MECHANISM
LHD / Windshield Wiper, Includes Motor And Linkage / From: JA071543 		$434.52 1
1174 LR113393
WIPER MOTOR AND MECHANISM
RHD / Windshield Wiper, Includes Motor And Linkage / From: JA071543 		$413.85 1
17528 LR083271
BLADE - WIPER
LHD / LH / To: HA999999 		$43.82 1
17528 LR083272
BLADE - WIPER
LHD / RH 		$43.82 1
17528 LR083266
BLADE - WIPER
RHD / RH / To: HA999999 		$41.71 1
17528 LR083267
BLADE - WIPER
RHD / LH
IN STOCK 		$41.71 1
17528 LR106593
BLADE - WIPER
LHD / LH / From: JA000001
IN STOCK 		$43.82 1
17528 LR106594
BLADE - WIPER
RHD / RH / From: JA000001
IN STOCK 		$43.82 1
