Windscreen Washer (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Windscreen Washer (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR085632 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR085574 GROMMET - WINDSHIELD WASHER PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR080265 PLUG - BLANKING Enquire To Order
LR107637 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR080264 PLUG - BLANKING Enquire To Order
LR107638 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR083281 JET - WINDSHIELD WASHER Enquire To Order
LR083282 JET - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR070883 RESERVOIR - WINDSHIELD WASHER Enquire To Order
LR083284 RESERVOIR - WINDSHIELD WASHER Enquire To Order
LR108239 RESERVOIR - WINDSHIELD WASHER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR089444 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR054932 HOSE - WINDSHIELD WASHER Enquire To Order
LR096447 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR088962 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR088963 HOSE - WINDSHIELD WASHER Enquire To Order
LR101683 HOSE - WINDSHIELD WASHER Enquire To Order
LR112026 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR079904 MOTOR AND PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR089443 MOTOR AND PUMP - HEADLAMP WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR037568 SENSOR - WASHER FLUID LEVEL Enquire To Order
LR110605 SENSOR - WASHER FLUID LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
LR083288 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR085649 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR095819 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
LR095818 GROMMET Enquire To Order
View All

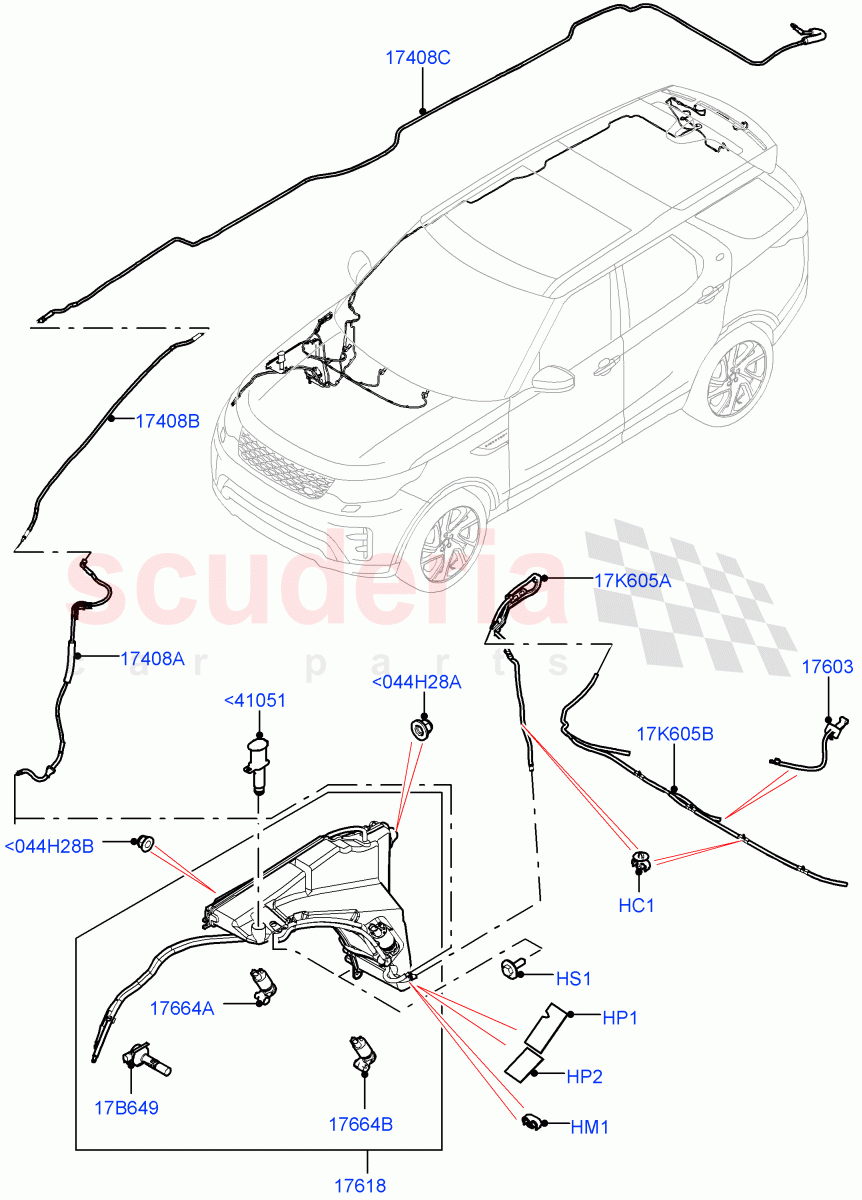

Windscreen Washer (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044H28A LR095819
GROMMET
With Headlamp Power Wash 		- 1 Enquire
<044H28B LR095818
GROMMET
With Headlamp Power Wash 		- 1 Enquire
<41051 LR089444
HOSE - FILLER PIPE 		- 1 Enquire
HC1 LR085632
CLIP
Support 		- 2 Enquire
HM1 LR085574
GROMMET - WINDSHIELD WASHER PUMP
With Headlamp Power Wash / Grommet 		- 1 Enquire
HP1 LR080265
PLUG - BLANKING
Reservoir - Windshield Washer / To: HA999999 		- 1 Enquire
HP1 LR107637
PLUG - BLANKING
Reservoir - Windshield Washer / From: JA000001 		- 1 Enquire
HP2 LR080264
PLUG - BLANKING
Reservoir - Windshield Washer / To: HA029413 		- 1 Enquire
HP2 LR107638
PLUG - BLANKING
Reservoir - Windshield Washer / From: HA029414 		- 1 Enquire
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM 		- 2 Enquire
17B649 LR037568
SENSOR - WASHER FLUID LEVEL
Sensor - Washer Fluid Level / To: HA047409 		- 1 Enquire
17B649 LR110605
SENSOR - WASHER FLUID LEVEL
Sensor - Washer Fluid Level / From: HA047410 		- 1 Enquire
17K605A LR083288
HOSE - WINDSHIELD WASHER 		- 1 Enquire
17K605B LR085649
HOSE - WINDSHIELD WASHER 		- 1 Enquire
17408A LR054932
HOSE - WINDSHIELD WASHER
RHD / RH Side Only 		- 1 Enquire
17408A LR096447
HOSE - WINDSHIELD WASHER
LHD / RH Side Only 		- 1 Enquire
17408B LR088962
HOSE - WINDSHIELD WASHER 		- 1 Enquire
17408C LR088963
HOSE - WINDSHIELD WASHER
To: HA004421 		- 1 Enquire
17408C LR101683
HOSE - WINDSHIELD WASHER
From: HA004422 / To: HA999999 		- 1 Enquire
17408C LR112026
HOSE - WINDSHIELD WASHER
From: JA000001 		- 1 Enquire
17603 LR083281
JET - WINDSHIELD WASHER
Less Heated Washer Jet 		- 3 Enquire
17603 LR083282
JET - WINDSHIELD WASHER
With Heated Washer Jet 		- 3 Enquire
17618 LR070883
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer / To: HA032848 		- 1 Enquire
17618 LR083284
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash / To: HA032858 		- 1 Enquire
17618 LR108239
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer / From: HA032849 / To: HA047409 		- 1 Enquire
17618 LR107804
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash / From: HA032859 / To: JA048180 		- 1 Enquire
17618 LR110608
RESERVOIR - WINDSHIELD WASHER
Less Headlamp Washer / From: HA047410 		- 1 Enquire
17618 LR110609
RESERVOIR - WINDSHIELD WASHER
With Headlamp Power Wash / From: JA048181 		- 1 Enquire
17664A LR079904
MOTOR AND PUMP 		- 1 Enquire
17664B LR089443
MOTOR AND PUMP - HEADLAMP WASHER
With Headlamp Power Wash 		- 1 Enquire
