Dash Panel And Front Fenders (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Dash Panel And Front Fenders (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR027624 BOLT $3.01 To Order
Photo Part No Description Price (each) Stock
LR068826 NUT $0.65 IN STOCK
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $2.97 IN STOCK
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
LR080199 FENDER - FRONT $407.88 IN STOCK
LR080200 FENDER - FRONT $407.88 IN STOCK
Photo Part No Description Price (each) Stock
LR080192 BRACKET - FENDER MOUNTING $71.95 To Order
LR080193 BRACKET - FENDER MOUNTING $71.95 To Order
LR110439 BRACKET - FENDER MOUNTING $71.95 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR080201 BRACKET - FENDER MOUNTING $168.96 To Order
LR080202 BRACKET - FENDER MOUNTING $168.96 To Order
LR105082 BRACKET - FENDER MOUNTING $168.96 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR124567 BRACKET - FENDER MOUNTING $31.47 IN STOCK
LR033055 BRACKET - FENDER MOUNTING $32.20 To Order
LR124567 BRACKET - FENDER MOUNTING $31.47 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083009 GRILLE - FENDER - FRONT $148.56 To Order
LR083011 GRILLE - FENDER - FRONT $127.50 To Order
LR083013 GRILLE - FENDER - FRONT $103.35 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082864 INSULATOR - FENDER APRON $44.37 To Order
LR083703 INSULATOR - FENDER APRON $44.68 To Order
Photo Part No Description Price (each) Stock
LR082865 INSULATOR - FENDER APRON $44.37 To Order
Photo Part No Description Price (each) Stock
LR113218 INSULATOR - FENDER APRON $51.33 To Order
View All

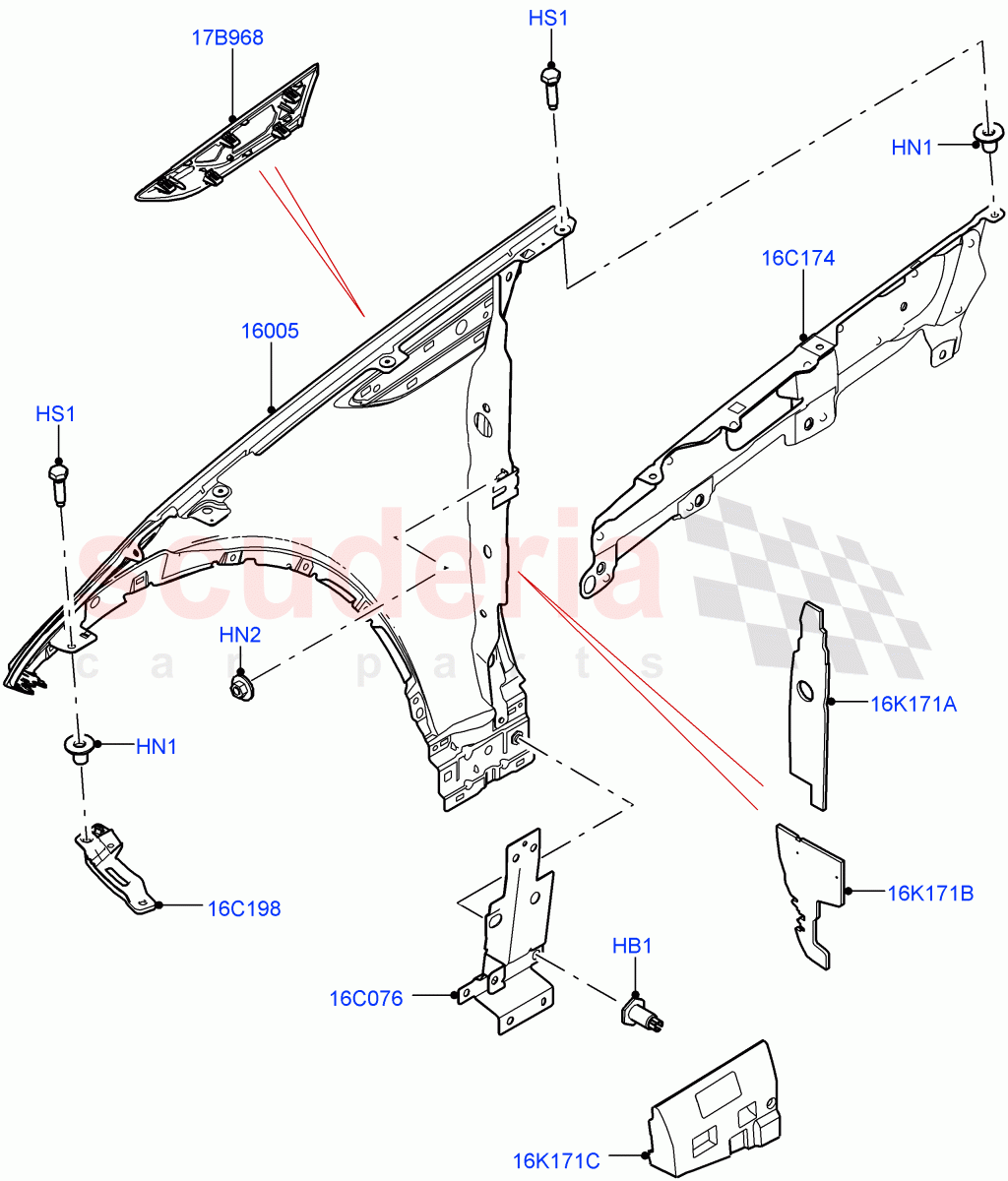

Dash Panel And Front Fenders (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR027624
BOLT
Bracket, Lower, M10 		$3.01 2
HN1 LR068826
NUT
M6 x 15MM
IN STOCK 		$0.65 14
HN2 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer
IN STOCK 		$2.97 4
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM
IN STOCK 		$0.92 14
16C076 LR080192
BRACKET - FENDER MOUNTING
RH, Category A, Lower / To: HA041274 		$71.95 1
16C076 LR080193
BRACKET - FENDER MOUNTING
LH, Category A, Lower / To: HA041274 		$71.95 1
16C076 LR110439
BRACKET - FENDER MOUNTING
RH, Category A, Lower / From: HA041275 		$71.95 1
16C076 LR110440
BRACKET - FENDER MOUNTING
LH, Category A, Lower / From: HA041275 		$71.95 1
16C174 LR080201
BRACKET - FENDER MOUNTING
RH, Upper / To: HA024293 		$168.96 1
16C174 LR080202
BRACKET - FENDER MOUNTING
LH, Upper / To: HA024293 		$168.96 1
16C174 LR105082
BRACKET - FENDER MOUNTING
RH, Upper / From: HA024294 		$168.96 1
16C174 LR105083
BRACKET - FENDER MOUNTING
LH, Upper / From: HA024294 		$168.96 1
16C198 LR124567
BRACKET - FENDER MOUNTING
RH, Middle - Front / To: KA091534
IN STOCK 		$31.47 1
16C198 LR033055
BRACKET - FENDER MOUNTING
LH, Middle - Front / To: KA091534 		$32.20 1
16C198 LR124567
BRACKET - FENDER MOUNTING
RH, Middle - Front / From: KA091535
IN STOCK 		$31.47 1
16C198 LR124568
BRACKET - FENDER MOUNTING
LH, Middle - Front / From: KA091535 		$32.20 1
16K171A LR082864
INSULATOR - FENDER APRON
RH Upper 		$44.37 1
16K171A LR083703
INSULATOR - FENDER APRON
LH Upper 		$44.68 1
16K171B LR082865
INSULATOR - FENDER APRON
Lower, RH/LH 		$44.37 2
16K171C LR113218
INSULATOR - FENDER APRON
2.0L I4 High DOHC AJ200 Petrol / LH Side Only 		$51.33 1
17B968 LR083009
GRILLE - FENDER - FRONT
Front Fender Gill-Black / RH 		$148.56 1
17B968 LR083011
GRILLE - FENDER - FRONT
Front Fender Gill-Dark Atlas / RH 		$127.50 1
17B968 LR083013
GRILLE - FENDER - FRONT
Front Fender Gill-Atlas / RH 		$103.35 1
17B968 LR083010
GRILLE - FENDER - FRONT
Front Fender Gill-Black / LH 		$148.56 1
17B968 LR083012
GRILLE - FENDER - FRONT
Front Fender Gill-Dark Atlas / LH 		$127.50 1
17B968 LR083014
GRILLE - FENDER - FRONT
Front Fender Gill-Atlas / LH 		$103.35 1
16005 LR080199
FENDER - FRONT
RH
IN STOCK 		$407.88 1
16005 LR080200
FENDER - FRONT
LH
IN STOCK 		$407.88 1
