Intercooler/Air Ducts And Hoses (Nitra Plant Build, Water Charge Air Cooler) (3.0 V6 D Low Mt Row,...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Intercooler/Air Ducts And Hoses (Nitra Plant Build, Water Charge Air Cooler) (3.0 V6 D Low MT ROW,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR001080 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB106116 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR077385 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR077388 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
VYF500100 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR007399 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR034552 INSULATOR - INTERCOOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR038854 BUSH - INSULATING Enquire To Order
Photo Part No Description Price (each) Stock
LR062405 INTERCOOLER Enquire To Order
View All

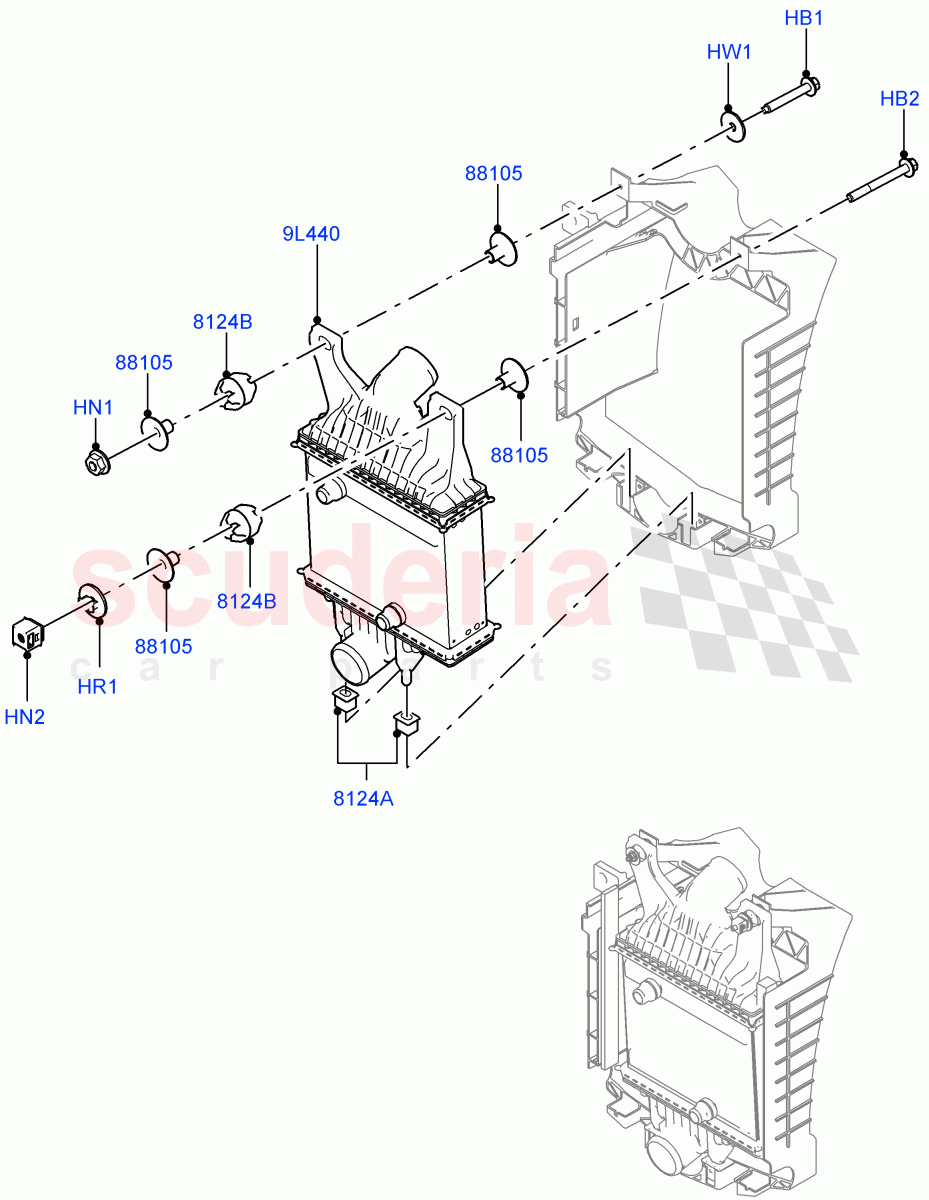

Intercooler/Air Ducts And Hoses (Nitra Plant Build, Water Charge Air Cooler) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR001080
BOLT
Hexagonal Head, M6 X 40MM / From: K2000001 		- 1 Enquire
HB2 FB106116
BOLT - HEX.HEAD
M6 x 55MM / From: K2000001 		- 1 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: K2000001 		- 1 Enquire
HN2 LR077385
NUT
Plastic / From: K2000001 		- 1 Enquire
HR1 LR077388
CLIP - SPECIAL
M6 / From: K2000001 		- 1 Enquire
HW1 VYF500100
WASHER
6.4 x 22.2 x 1.6 / From: K2000001 		- 2 Enquire
9L440 LR062405
INTERCOOLER
From: K2000001 		- 1 Enquire
8124A LR007399
INSULATOR - RUBBER
Intercooler, Lower / From: K2000001 		- 2 Enquire
8124B LR034552
INSULATOR - INTERCOOLER
Intercooler, Top / From: K2000001 		- 2 Enquire
88105 LR038854
BUSH - INSULATING
Intercooler, Top / From: K2000001 		- 4 Enquire
