Air Cleaner (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Air Cleaner (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMKA000001)

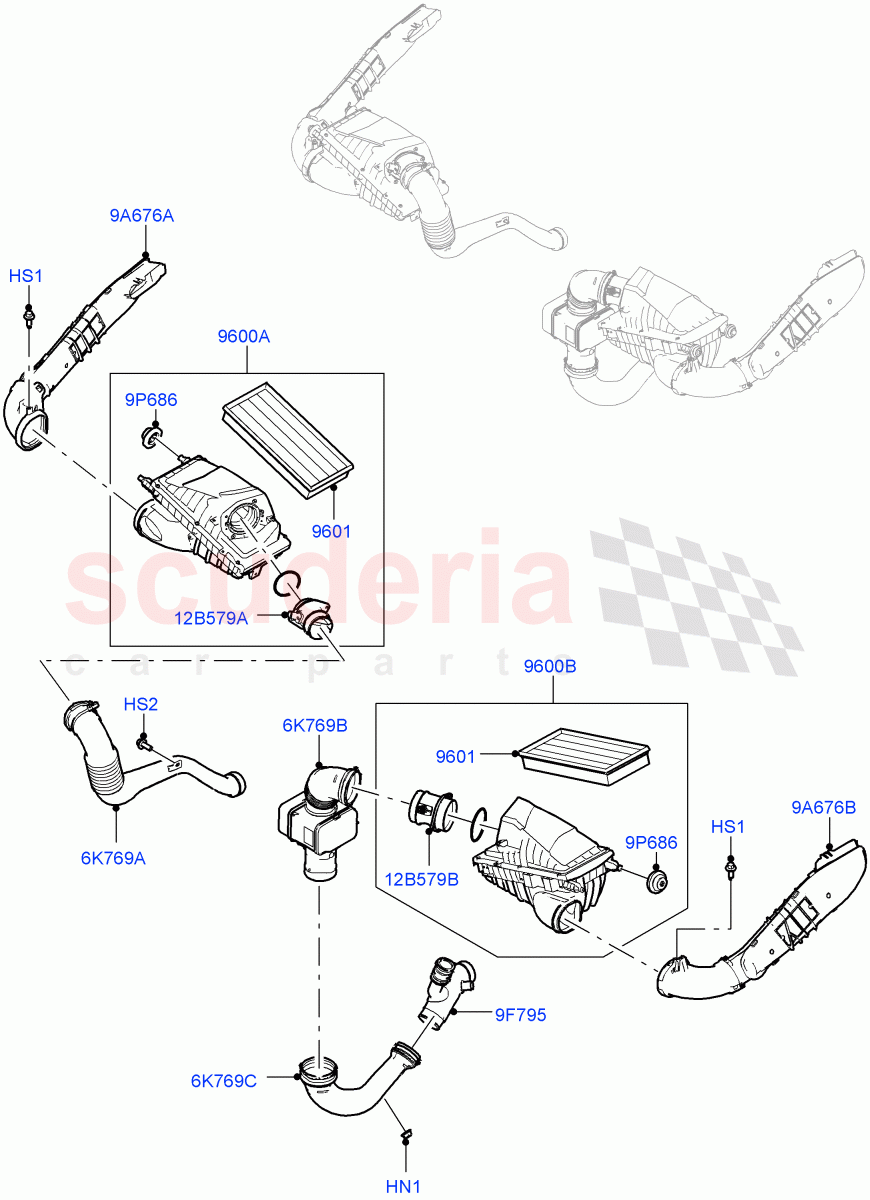

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161843	FILTER - AIR CLEANER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095789	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095546	CLEANER - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084060	TUBE - TURBOCHARGER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036466	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063056	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078392	DUCT - CLEAN AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082417	MOULDING - SNOW INGRESS PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095884	MOULDING - SNOW INGRESS PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035726	SENSOR - MASS AIR FLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071914	SENSOR - MASS AIR FLOW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Air Duct, Hexagonal Head, M6 / From: KA000001	-	1	Enquire
HS1	RYG500160	SCREW	RYG500160 SCREW Dirty Air Duct, Hexagonal Head, M6 X 14MM / From: KA000001	-	3	Enquire
HS2	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: KA000001	-	2	Enquire
6K769A	LR036466	DUCT - CLEAN AIR	LR036466 DUCT - CLEAN AIR RH / From: KA000001	-	1	Enquire
6K769B	LR063056	DUCT - CLEAN AIR	LR063056 DUCT - CLEAN AIR LH Upper / From: KA000001	-	1	Enquire
6K769C	LR078392	DUCT - CLEAN AIR	LR078392 DUCT - CLEAN AIR LH Lower / From: KA000001	-	1	Enquire
9A676A	LR082417	MOULDING - SNOW INGRESS PROTECTOR	LR082417 MOULDING - SNOW INGRESS PROTECTOR RH / From: KA000001	-	1	Enquire
9A676B	LR095884	MOULDING - SNOW INGRESS PROTECTOR	LR095884 MOULDING - SNOW INGRESS PROTECTOR LH / From: KA000001	-	1	Enquire
9F795	LR084060	TUBE - TURBOCHARGER INLET	LR084060 TUBE - TURBOCHARGER INLET LH, Turbocharger Inlet / From: KA000001	-	1	Enquire
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown / From: KA000001	-	6	Enquire
12B579A	LR035726	SENSOR - MASS AIR FLOW	LR035726 SENSOR - MASS AIR FLOW RH, Mass Air Flow Sensor / From: KA000001	-	1	Enquire
12B579B	LR071914	SENSOR - MASS AIR FLOW	LR071914 SENSOR - MASS AIR FLOW LH, Mass Air Flow Sensor / From: KA000001	-	1	Enquire
9600A	LR095789	CLEANER - AIR	LR095789 CLEANER - AIR RH / From: KA000001	-	1	Enquire
9600B	LR095546	CLEANER - AIR	LR095546 CLEANER - AIR LH / From: KA000001	-	1	Enquire
9601	LR161843	FILTER - AIR CLEANER	LR161843 FILTER - AIR CLEANER From: KA000001	-	2	Enquire
