Name: Air Cleaner (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

View All

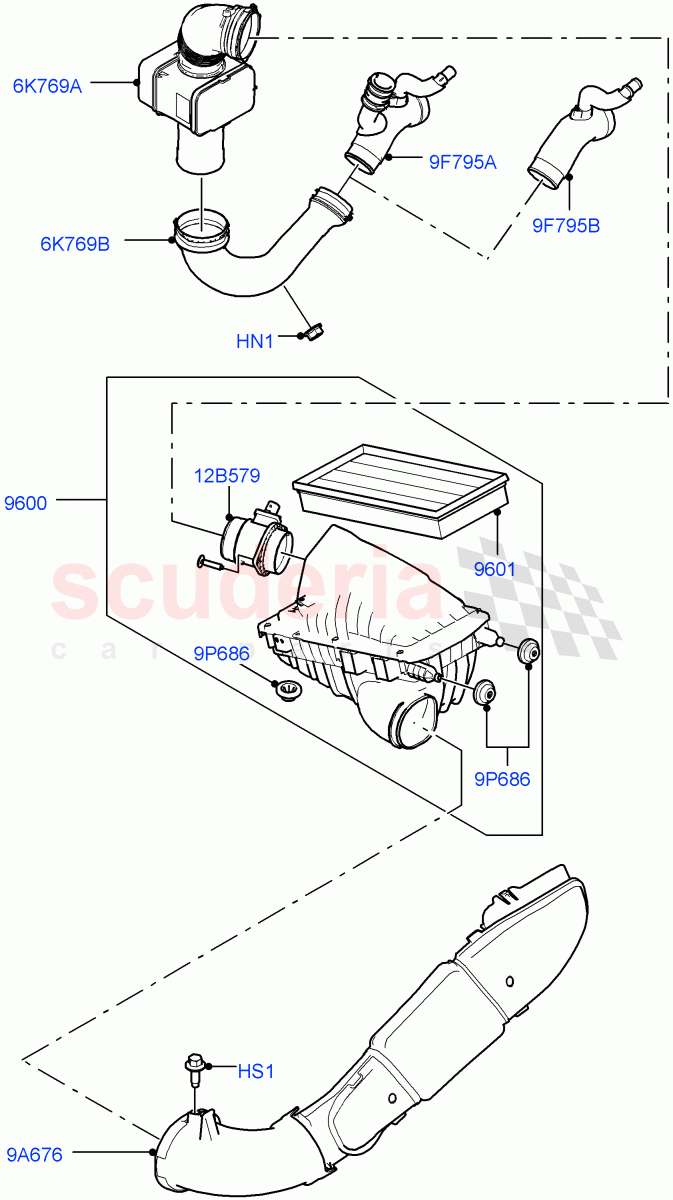

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161843	FILTER - AIR CLEANER	$59.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082421	MOULDING - SNOW INGRESS PROTECTOR	$168.58	To Order
	LR095884	MOULDING - SNOW INGRESS PROTECTOR	$163.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	$4.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071914	SENSOR - MASS AIR FLOW	$403.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062830	DUCT - CLEAN AIR	$155.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078392	DUCT - CLEAN AIR	$150.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084058	TUBE - TURBOCHARGER INLET	$156.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062059	TUBE - TURBOCHARGER INLET	$73.10	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	1
HS1	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	$0.59	2
6K769A	LR062830	DUCT - CLEAN AIR	LR062830 DUCT - CLEAN AIR Air Cleaner Outlet, Upper	$155.15	1
6K769B	LR078392	DUCT - CLEAN AIR	LR078392 DUCT - CLEAN AIR Middle, Turbocharger Inlet	$150.84	1
9A676	LR082421	MOULDING - SNOW INGRESS PROTECTOR	LR082421 MOULDING - SNOW INGRESS PROTECTOR To: HA003518	$168.58	1
9A676	LR095884	MOULDING - SNOW INGRESS PROTECTOR	LR095884 MOULDING - SNOW INGRESS PROTECTOR From: HA003519	$163.01	1
9F795A	LR084058	TUBE - TURBOCHARGER INLET	LR084058 TUBE - TURBOCHARGER INLET 3.0 V6 D Gen2 Mono Turbo / Lower, Turbocharger Inlet	$156.33	1
9F795B	LR062059	TUBE - TURBOCHARGER INLET	LR062059 TUBE - TURBOCHARGER INLET 3.0 V6 D Low MT ROW / Lower, Turbocharger Inlet	$73.10	1
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING IN STOCK	LR000753 INSULATOR - AIR CLEANER HOUSING IN STOCK	$4.74	3
12B579	LR071914	SENSOR - MASS AIR FLOW	LR071914 SENSOR - MASS AIR FLOW Mass Air Flow Sensor	$403.49	1
9600	LR062607	CLEANER - AIR	LR062607 CLEANER - AIR To: HA013836	$467.41	1
9600	LR095546	CLEANER - AIR	LR095546 CLEANER - AIR From: HA013837	$420.21	1
9601	LR161843	FILTER - AIR CLEANER IN STOCK	LR161843 FILTER - AIR CLEANER IN STOCK	$59.29	1

Air Cleaner (Solihull Plant Build) (3.0 V6 D Low Mt Row, 3.0 V6 D Gen2 Mono Turbo) ((V)...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]
