Windscreen/Inside Rear View Mirror (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Windscreen/Inside Rear View Mirror (Solihull Plant Build) ((V) FROMHA000001)

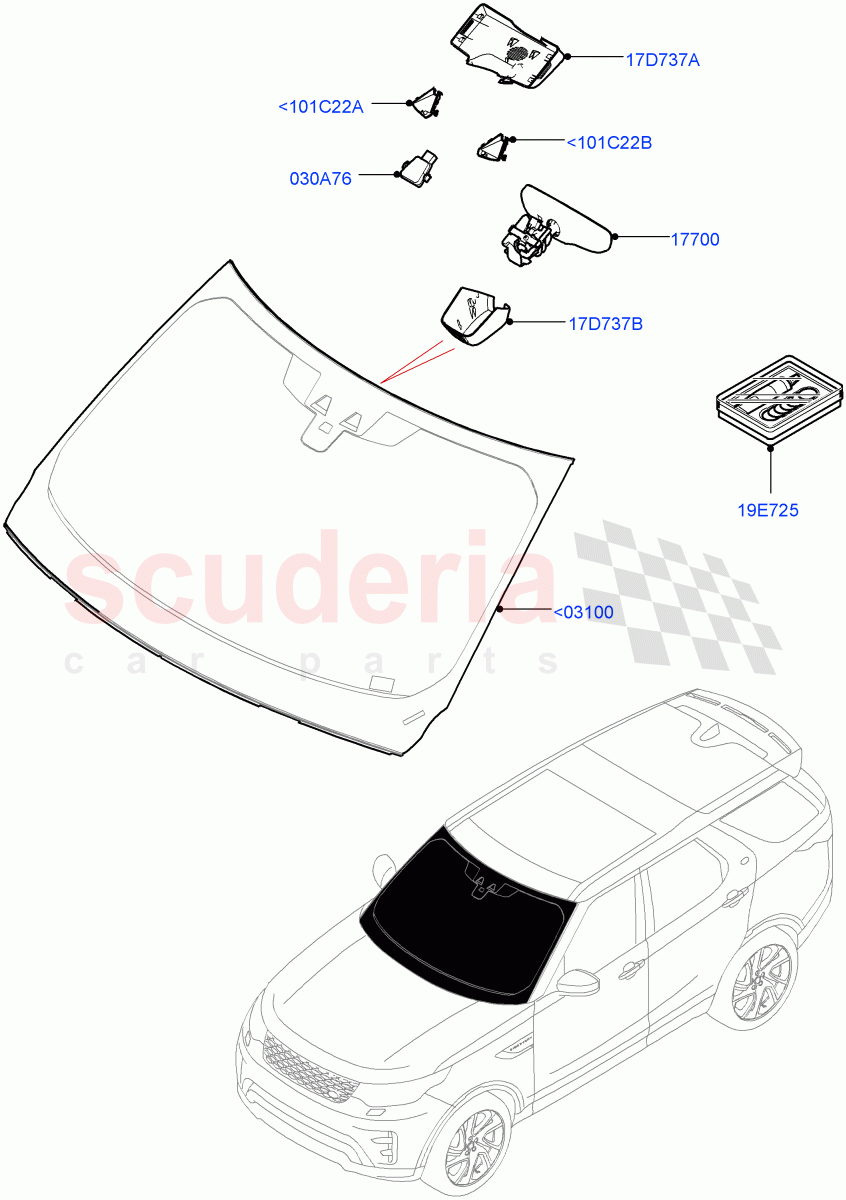

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR058509	MIRROR - REAR VIEW - INNER	Enquire	To Order
	LR083140	MIRROR - REAR VIEW - INNER	Enquire	To Order
	LR083141	MIRROR - REAR VIEW - INNER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR083212	GLASS - WINDSCREEN	Enquire	To Order
	LR083213	GLASS - WINDSCREEN	Enquire	To Order
	LR083214	GLASS - WINDSCREEN	Enquire	To Order

...and 19 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR088968	PLUG - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078295	ADHESIVE AND SEALER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083275	COVER - MIRROR HOUSING	Enquire	To Order
	LR083153	COVER - MIRROR HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073284	COVER - MIRROR HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097962	LIGHT TRAP - SAFETY CAMERA	Enquire	To Order
	LR097963	LIGHT TRAP - SAFETY CAMERA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097961	LIGHT TRAP - SAFETY CAMERA	Enquire	To Order
	LR097960	LIGHT TRAP - SAFETY CAMERA	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<101C22A	LR097962	LIGHT TRAP - SAFETY CAMERA	LR097962 LIGHT TRAP - SAFETY CAMERA Forward Facing Camera / RH	-	1	Enquire
<101C22A	LR097963	LIGHT TRAP - SAFETY CAMERA	LR097963 LIGHT TRAP - SAFETY CAMERA Less Forward Facing Camera / RH	-	1	Enquire
<101C22B	LR097961	LIGHT TRAP - SAFETY CAMERA	LR097961 LIGHT TRAP - SAFETY CAMERA Forward Facing Camera / LH	-	1	Enquire
<101C22B	LR097960	LIGHT TRAP - SAFETY CAMERA	LR097960 LIGHT TRAP - SAFETY CAMERA Less Forward Facing Camera / LH	-	1	Enquire
<03100	LR083212	GLASS - WINDSCREEN	LR083212 GLASS - WINDSCREEN Less Head Up Display, Less Heated Windscreen, Standard Windscreen / To: HA032597	-	1	Enquire
<03100	LR083213	GLASS - WINDSCREEN	LR083213 GLASS - WINDSCREEN Less Head Up Display, Standard Windscreen, With Heated Windscreen / To: HA032597	-	1	Enquire
<03100	LR083214	GLASS - WINDSCREEN	LR083214 GLASS - WINDSCREEN Climate Control Windscreen, Less Head Up Display, Less Heated Windscreen / To: HA032597	-	1	Enquire
<03100	LR083215	GLASS - WINDSCREEN	LR083215 GLASS - WINDSCREEN Climate Control Windscreen, Less Head Up Display, With Heated Windscreen / To: HA032597	-	1	Enquire
<03100	LR083216	GLASS - WINDSCREEN	LR083216 GLASS - WINDSCREEN Climate Control Windscreen, Head Up Display, Less Heated Windscreen / To: HA032597	-	1	Enquire
<03100	LR083217	GLASS - WINDSCREEN	LR083217 GLASS - WINDSCREEN Climate Control Windscreen, Head Up Display, With Heated Windscreen / To: HA032597	-	1	Enquire
<03100	LR106633	GLASS - WINDSCREEN	LR106633 GLASS - WINDSCREEN Less Head Up Display, Less Heated Windscreen, Standard Windscreen / From: HA032598 / To: HA999999	-	1	Enquire
<03100	LR106635	GLASS - WINDSCREEN	LR106635 GLASS - WINDSCREEN Less Head Up Display, Standard Windscreen, With Heated Windscreen / From: HA032598 / To: HA999999	-	1	Enquire
<03100	LR106636	GLASS - WINDSCREEN	LR106636 GLASS - WINDSCREEN Climate Control Windscreen, Less Head Up Display, Less Heated Windscreen / From: HA032598 / To: HA999999	-	1	Enquire
<03100	LR106637	GLASS - WINDSCREEN	LR106637 GLASS - WINDSCREEN Climate Control Windscreen, Less Head Up Display, With Heated Windscreen / From: HA032598 / To: HA999999	-	1	Enquire
<03100	LR106638	GLASS - WINDSCREEN	LR106638 GLASS - WINDSCREEN Climate Control Windscreen, Head Up Display, Less Heated Windscreen / From: HA032598 / To: HA041432	-	1	Enquire
<03100	LR106639	GLASS - WINDSCREEN	LR106639 GLASS - WINDSCREEN Climate Control Windscreen, Head Up Display, With Heated Windscreen / From: HA032598 / To: HA041432	-	1	Enquire
<03100	LR098982	GLASS - WINDSCREEN	LR098982 GLASS - WINDSCREEN Head Up Display, Less Heated Windscreen, Solar Attenuating Windscreen / From: JA000001	-	1	Enquire
<03100	LR100160	GLASS - WINDSCREEN	LR100160 GLASS - WINDSCREEN Head Up Display, Solar Attenuating Windscreen, With Heated Windscreen / From: JA000001	-	1	Enquire
<03100	LR098984	GLASS - WINDSCREEN	LR098984 GLASS - WINDSCREEN Head Up Display, Less Heated Windscreen, Less Solar Attenuating Windscreen / From: JA000001	-	1	Enquire
<03100	LR098985	GLASS - WINDSCREEN	LR098985 GLASS - WINDSCREEN Head Up Display, Less Solar Attenuating Windscreen, With Heated Windscreen / From: JA000001	-	1	Enquire
<03100	LR106637	GLASS - WINDSCREEN	LR106637 GLASS - WINDSCREEN Less Head Up Display, Solar Attenuating Windscreen, With Heated Windscreen / From: JA000001	-	1	Enquire
<03100	LR106633	GLASS - WINDSCREEN	LR106633 GLASS - WINDSCREEN Less Head Up Display, Less Heated Windscreen, Less Solar Attenuating Windscreen / From: JA000001	-	1	Enquire
<03100	LR106635	GLASS - WINDSCREEN	LR106635 GLASS - WINDSCREEN Less Head Up Display, Less Solar Attenuating Windscreen, With Heated Windscreen / From: JA000001	-	1	Enquire
<03100	LR106636	GLASS - WINDSCREEN	LR106636 GLASS - WINDSCREEN Less Head Up Display, Less Heated Windscreen, Solar Attenuating Windscreen / From: JA000001	-	1	Enquire
<03100	LR155774	GLASS - WINDSCREEN	LR155774 GLASS - WINDSCREEN Climate Control Windscreen, Head Up Display, Less Heated Windscreen / From: HA041433 / To: HA999999	-	1	Enquire
<03100	LR155775	GLASS - WINDSCREEN	LR155775 GLASS - WINDSCREEN Climate Control Windscreen, Head Up Display, With Heated Windscreen / From: HA041433 / To: HA999999	-	1	Enquire
17D737A	LR083275	COVER - MIRROR HOUSING	LR083275 COVER - MIRROR HOUSING Forward Facing Camera / Upper	-	1	Enquire
17D737A	LR083153	COVER - MIRROR HOUSING	LR083153 COVER - MIRROR HOUSING Less Forward Facing Camera / Upper	-	1	Enquire
17D737B	LR073284	COVER - MIRROR HOUSING	LR073284 COVER - MIRROR HOUSING Lower	-	1	Enquire
19E725	LR078295	ADHESIVE AND SEALER	LR078295 ADHESIVE AND SEALER Includes Seal, Kit - Glass Adhesive	-	1	Enquire
030A76	LR088968	PLUG - RUBBER	LR088968 PLUG - RUBBER Less Rain Sensor - Front W/Wiper	-	1	Enquire
17700	LR058509	MIRROR - REAR VIEW - INNER	LR058509 MIRROR - REAR VIEW - INNER With Dipping Interior Mirrors	-	1	Enquire
17700	LR083140	MIRROR - REAR VIEW - INNER	LR083140 MIRROR - REAR VIEW - INNER Less Garage Door Opener, With Electrochromic R/View Mirror	-	1	Enquire
17700	LR083141	MIRROR - REAR VIEW - INNER	LR083141 MIRROR - REAR VIEW - INNER With Electrochromic R/View Mirror, With NAS Garage Door Opener	-	1	Enquire
17700	LR083142	MIRROR - REAR VIEW - INNER	LR083142 MIRROR - REAR VIEW - INNER With Electrochromic R/View Mirror, With Universal Garage Door Opener	-	1	Enquire
17700	LR083145	MIRROR - REAR VIEW - INNER	LR083145 MIRROR - REAR VIEW - INNER With China Garage Door Opener, With Electrochromic R/View Mirror	-	1	Enquire
17700	LR084254	MIRROR - REAR VIEW - INNER	LR084254 MIRROR - REAR VIEW - INNER With Brazil Garage Door Opener, With Electrochromic R/View Mirror	-	1	Enquire
