Radiator Grille And Front Bumper (Nitra Plant Build) (Rear Bumper Lower Valance-Narvik Bk) ((V)...

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Radiator Grille And Front Bumper (Nitra Plant Build) (Rear Bumper Lower Valance-Narvik Bk) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR018173 CLIP - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
RYQ500140 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
RZM500080 PIN - FASTENING Enquire To Order
Photo Part No Description Price (each) Stock
LR165498 NUT - EXPANSION Enquire To Order
Photo Part No Description Price (each) Stock
HYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR038663 SCREW - FLAT ROUND HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR033052 SCREW AND WASHER - SELF-TAPPING Enquire To Order
Photo Part No Description Price (each) Stock
DYP000040 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR045192 RETAINER - MOULDING Enquire To Order
Photo Part No Description Price (each) Stock
LR142424 GRILLE - RADIATOR Enquire To Order
LR154944 GRILLE - RADIATOR Enquire To Order
LR160075 GRILLE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR080004 REINFORCEMENT - FRONT BUMPER Enquire To Order
Photo Part No Description Price (each) Stock
ZKC2228 NUT - SPECIAL Enquire To Order
ZKC2228 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR136743 PLATE - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR082842 INSERT - BUMPER Enquire To Order
LR082844 INSERT - BUMPER Enquire To Order
LR082843 INSERT - BUMPER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082840 INSERT - BUMPER Enquire To Order
LR082841 INSERT - BUMPER Enquire To Order
Photo Part No Description Price (each) Stock
LR083109 CAP - POWERWASH JET Enquire To Order
LR083110 CAP - POWERWASH JET Enquire To Order
Photo Part No Description Price (each) Stock
LR012844 CLIP - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR083117 BRACKET - BUMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR146328 BRACKET - BUMPER MOUNTING Enquire To Order
LR146329 BRACKET - BUMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR083118 BRACKET - BUMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR137523 BRACKET - BUMPER MOUNTING Enquire To Order
LR137524 BRACKET - BUMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR083122 BRACKET - LICENSE PLATE Enquire To Order
LR083125 BRACKET - LICENSE PLATE Enquire To Order
LR083127 BRACKET - LICENSE PLATE Enquire To Order
Photo Part No Description Price (each) Stock
LR143297 BUMPER - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
LR143000 COVER - BUMPER Enquire To Order
Photo Part No Description Price (each) Stock
LR142430 INSERT - BUMPER Enquire To Order
LR142429 INSERT - BUMPER Enquire To Order
Photo Part No Description Price (each) Stock
LR082831 DEFLECTOR - AIR Enquire To Order
LR082832 DEFLECTOR - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR164089 COVER - FRONT FOG LAMP Enquire To Order
LR164088 COVER - FRONT FOG LAMP Enquire To Order
Photo Part No Description Price (each) Stock
LR142431 GRILLE - BUMPER Enquire To Order
LR142432 GRILLE - BUMPER Enquire To Order
LR142433 GRILLE - BUMPER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR142435 COVER - TOW HOOK Enquire To Order
Photo Part No Description Price (each) Stock
LR083227 DUCT - BRAKE CALIPER COOLING Enquire To Order
LR083228 DUCT - BRAKE CALIPER COOLING Enquire To Order
View All

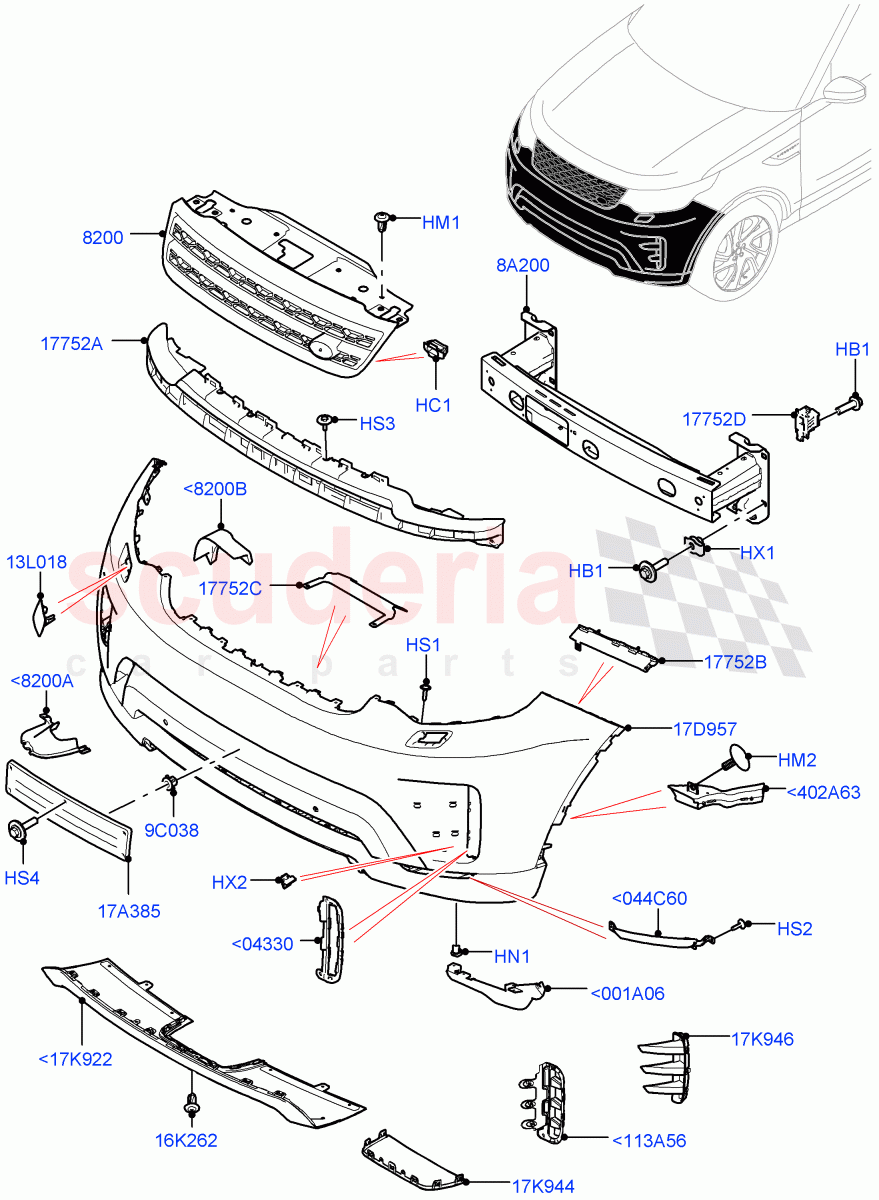

Radiator Grille And Front Bumper (Nitra Plant Build) (Rear Bumper Lower Valance-Narvik Bk) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922 LR142435
COVER - TOW HOOK
Rear Bumper Lower Valance-Narvik Bk / From: M2000001 		- 1 Enquire
<001A06 LR082831
DEFLECTOR - AIR
RH / From: M2000001 		- 1 Enquire
<001A06 LR082832
DEFLECTOR - AIR
LH / From: M2000001 		- 1 Enquire
<044C60 LR164089
COVER - FRONT FOG LAMP
Less Front Fog Lamps / Blanking / From: P2000001 		- 1 Enquire
<044C60 LR164088
COVER - FRONT FOG LAMP
Less Front Fog Lamps / Blanking / From: P2000001 		- 1 Enquire
<113A56 LR142431
GRILLE - BUMPER
3.0L AJ20P6 Petrol High, With Extra Engine Cooling System / RH, Open Type / From: M2000001 		- 1 Enquire
<113A56 LR142432
GRILLE - BUMPER
3.0L AJ20D6 Diesel High, With Extra Engine Cooling System / LH, Open Type / From: M2000001 		- 1 Enquire
<113A56 LR142433
GRILLE - BUMPER
3.0L AJ20D6 Diesel High, With Extra Engine Cooling System / RH, Blanking / From: M2000001 		- 1 Enquire
<113A56 LR142434
GRILLE - BUMPER
3.0L AJ20D6 Diesel High, With Extra Engine Cooling System / LH, Blanking / From: M2000001 		- 1 Enquire
<402A63 LR083227
DUCT - BRAKE CALIPER COOLING
RH / From: M2000001 		- 1 Enquire
<402A63 LR083228
DUCT - BRAKE CALIPER COOLING
LH / From: M2000001 		- 1 Enquire
<8200A LR082842
INSERT - BUMPER
2.0L I4 DSL MID DOHC AJ200 / RH / From: M2000001 		- 1 Enquire
<8200A LR082844
INSERT - BUMPER
3.0 V6 D Low MT ROW / RH / From: M2000001 		- 1 Enquire
<8200A LR082843
INSERT - BUMPER
2.0L I4 DSL MID DOHC AJ200 / LH / From: M2000001 		- 1 Enquire
<8200A LR082845
INSERT - BUMPER
2.0L I4 DSL HIGH DOHC AJ200, With Standard Engine Cooling System / LH / From: M2000001 		- 1 Enquire
<8200B LR082840
INSERT - BUMPER
3.0 V6 D Low MT ROW / RH / From: M2000001 		- 1 Enquire
<8200B LR082841
INSERT - BUMPER
2.0L I4 DSL HIGH DOHC AJ200, With Standard Engine Cooling System / LH / From: M2000001 		- 1 Enquire
<04330 LR136743
PLATE - BLANKING
3.0 V6 D Gen2 Twin Turbo, Less Engine Cooling System / RH, Blanking / From: M2000001 		- 1 Enquire
HB1 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM / From: M2000001 		- 8 Enquire
HC1 LR018173
CLIP - RETAINING
With Black Gloss Grille / From: M2000001 		- 4 Enquire
HM1 RYQ500140
RIVET
8 X 20MM / From: M2000001 		- 4 Enquire
HM2 RZM500080
PIN - FASTENING
6.35 X 28.5MM, Support / From: M2000001 		- 4 Enquire
HN1 LR165498
NUT - EXPANSION
Plastic / From: M2000001 		- 8 Enquire
HS1 HYP500140
SCREW
Less Headlamp Washer / 4 X 12MM / From: M2000001 		- 1 Enquire
HS2 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Pan Head - Torx / From: M2000001 		- 6 Enquire
HS3 LR033052
SCREW AND WASHER - SELF-TAPPING
5 x 20MM / From: M2000001 		- 4 Enquire
HS4 DYP000040
SCREW
M5 / From: M2000001 		- 4 Enquire
HX1 KYH500100
NUT - SPRING
M10, Nut "U" Spring / From: M2000001 		- 8 Enquire
HX2 LR045192
RETAINER - MOULDING
From: M2000001 		- 1 Enquire
8A200 LR080004
REINFORCEMENT - FRONT BUMPER
From: M2000001 		- 1 Enquire
9C038 ZKC2228
NUT - SPECIAL
Front Number Plate Plinth - Japan / From: M2000001 		- 2 Enquire
9C038 ZKC2228
NUT - SPECIAL
Front Number Plate Plinth-China / From: M2000001 		- 4 Enquire
13L018 LR083109
CAP - POWERWASH JET
With Headlamp Power Wash / RH / From: M2000001 		- 1 Enquire
13L018 LR083110
CAP - POWERWASH JET
With Headlamp Power Wash / LH / From: M2000001 		- 1 Enquire
16K262 LR012844
CLIP - RETAINING
1/4 Turn Click Type / From: M2000001 		- 1 Enquire
17A385 LR083122
BRACKET - LICENSE PLATE
Front Number Plate Plinth ROW / From: M2000001 		- 1 Enquire
17A385 LR083125
BRACKET - LICENSE PLATE
Front Number Plate Plinth NAS / From: M2000001 		- 1 Enquire
17A385 LR083127
BRACKET - LICENSE PLATE
Front Number Plate Plinth-China / From: M2000001 		- 1 Enquire
17D957 LR143297
BUMPER - FRONT
Primed / From: M2000001 		- 1 Enquire
17K944 LR143000
COVER - BUMPER
Tow Eye Cover - Body Colour / Primed / From: M2000001 		- 1 Enquire
17K946 LR142430
INSERT - BUMPER
3.0L AJ20P6 Petrol High, With Extra Engine Cooling System / LH / From: M2000001 		- 1 Enquire
17K946 LR142429
INSERT - BUMPER
3.0L AJ20D6 Diesel High, With Extra Engine Cooling System / RH / From: M2000001 		- 1 Enquire
8200 LR142424
GRILLE - RADIATOR
With Black Gloss Grille / From: M2000001 / To: M2446797 		- 1 Enquire
8200 LR154944
GRILLE - RADIATOR
With Black Gloss Grille / From: M2446798 / To: N2462138 		- 1 Enquire
8200 LR160075
GRILLE - RADIATOR
With Black Gloss Grille / From: N2462139 		- 1 Enquire
17752A LR083117
BRACKET - BUMPER MOUNTING
Center Location, Upper / From: M2000001 		- 1 Enquire
17752B LR146328
BRACKET - BUMPER MOUNTING
RH / From: M2000001 		- 1 Enquire
17752B LR146329
BRACKET - BUMPER MOUNTING
LH / From: M2000001 		- 1 Enquire
17752C LR083118
BRACKET - BUMPER MOUNTING
Center Location, Lower / From: M2000001 		- 1 Enquire
17752D LR137523
BRACKET - BUMPER MOUNTING
RH / From: M2000001 		- 1 Enquire
17752D LR137524
BRACKET - BUMPER MOUNTING
LH / From: M2000001 		- 1 Enquire
