Radiator Grille And Front Bumper (Nitra Plant Build) (Non Sport/Dynamic) ((V) Fromk2000001, (V)...

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Radiator Grille And Front Bumper (Nitra Plant Build) (Non Sport/Dynamic) ((V) FROMK2000001, (V)...

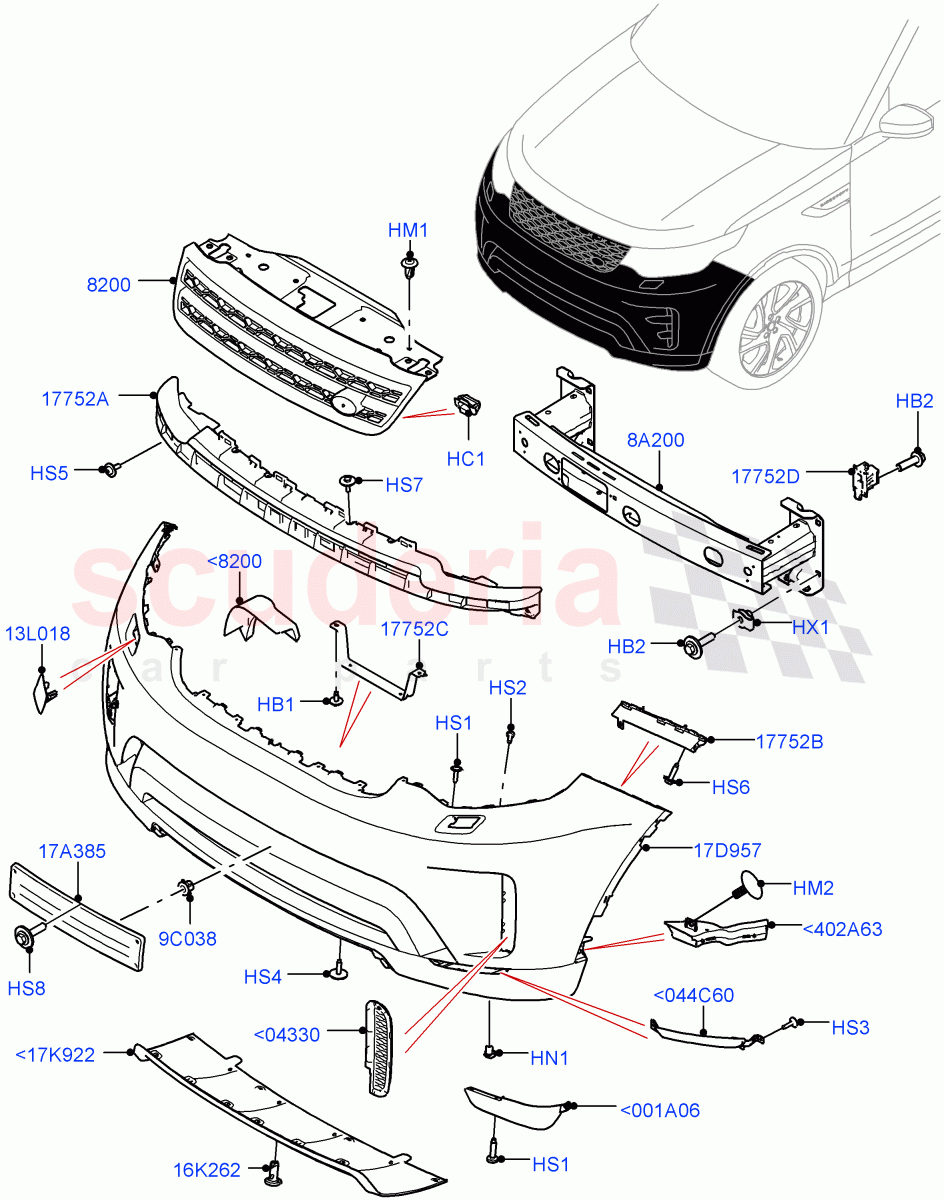

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR034249 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR018173 CLIP - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
RYQ500140 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
RZM500080 PIN - FASTENING Enquire To Order
Photo Part No Description Price (each) Stock
LR165498 NUT - EXPANSION Enquire To Order
Photo Part No Description Price (each) Stock
LR106494 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
HYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR038663 SCREW - FLAT ROUND HEAD Enquire To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR033401 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
KYP500320 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR033052 SCREW AND WASHER - SELF-TAPPING Enquire To Order
Photo Part No Description Price (each) Stock
DYP000040 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
KYH500100 NUT - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR083006 GRILLE - RADIATOR Enquire To Order
LR083007 GRILLE - RADIATOR Enquire To Order
LR083008 GRILLE - RADIATOR Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083104 PANEL - RADIATOR GRILLE - OPENING Enquire To Order
LR083103 PANEL - RADIATOR GRILLE - OPENING Enquire To Order
Photo Part No Description Price (each) Stock
LR080004 REINFORCEMENT - FRONT BUMPER Enquire To Order
Photo Part No Description Price (each) Stock
ZKC2228 NUT - SPECIAL Enquire To Order
ZKC2228 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR083061 INSERT - BUMPER AIR INTAKE Enquire To Order
LR083062 INSERT - BUMPER AIR INTAKE Enquire To Order
LR083063 INSERT - BUMPER AIR INTAKE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083109 CAP - POWERWASH JET Enquire To Order
LR083110 CAP - POWERWASH JET Enquire To Order
Photo Part No Description Price (each) Stock
LR012844 CLIP - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR083117 BRACKET - BUMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR146328 BRACKET - BUMPER MOUNTING Enquire To Order
LR129881 BRACKET - BUMPER MOUNTING Enquire To Order
LR129882 BRACKET - BUMPER MOUNTING Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083118 BRACKET - BUMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR137523 BRACKET - BUMPER MOUNTING Enquire To Order
LR137524 BRACKET - BUMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR083122 BRACKET - LICENSE PLATE Enquire To Order
LR083125 BRACKET - LICENSE PLATE Enquire To Order
LR083127 BRACKET - LICENSE PLATE Enquire To Order
Photo Part No Description Price (each) Stock
LR083055 BUMPER - FRONT Enquire To Order
LR083056 BUMPER - FRONT Enquire To Order
LR083057 BUMPER - FRONT Enquire To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083068 DEFLECTOR - AIR Enquire To Order
LR083066 DEFLECTOR - AIR Enquire To Order
LR083069 DEFLECTOR - AIR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR083111 COVER - FRONT FOG LAMP Enquire To Order
LR083112 COVER - FRONT FOG LAMP Enquire To Order
Photo Part No Description Price (each) Stock
LR083106 COVER - TOW HOOK Enquire To Order
LR083107 COVER - TOW HOOK Enquire To Order
LR083108 COVER - TOW HOOK Enquire To Order
Photo Part No Description Price (each) Stock
LR083227 DUCT - BRAKE CALIPER COOLING Enquire To Order
LR083228 DUCT - BRAKE CALIPER COOLING Enquire To Order
View All
Radiator Grille And Front Bumper (Nitra Plant Build) (Non Sport/Dynamic) ((V) FROMK2000001, (V) TOL2999999) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<17K922 LR083106
COVER - TOW HOOK
Rear Bmp Lwr Valance - Dark Silver / From: K2000001 		- 1 Enquire
<17K922 LR083107
COVER - TOW HOOK
Rear Bmp Lwr Valance - White Silver / From: K2000001 		- 1 Enquire
<17K922 LR083108
COVER - TOW HOOK
Rear Bmp Lower Valance - Anthracite / From: K2000001 		- 1 Enquire
<001A06 LR083068
DEFLECTOR - AIR
3.0 V6 D Gen2 Twin Turbo, Less Engine Cooling System / RH, Open Type / From: K2000001 		- 1 Enquire
<001A06 LR083066
DEFLECTOR - AIR
3.0 V6 D Low MT ROW, With Standard Engine Cooling System / RH, Closed Type / From: K2000001 		- 1 Enquire
<001A06 LR083069
DEFLECTOR - AIR
3.0 V6 D Gen2 Twin Turbo, Less Engine Cooling System / LH, Open Type / From: K2000001 		- 1 Enquire
<001A06 LR083067
DEFLECTOR - AIR
3.0 V6 D Gen2 Mono Turbo, With Extra Engine Cooling System / LH, Closed Type / From: K2000001 		- 1 Enquire
<044C60 LR083111
COVER - FRONT FOG LAMP
Less Front Fog Lamps / RH / From: K2000001 		- 1 Enquire
<044C60 LR083112
COVER - FRONT FOG LAMP
Less Front Fog Lamps / LH / From: K2000001 		- 1 Enquire
<402A63 LR083227
DUCT - BRAKE CALIPER COOLING
RH / From: K2000001 		- 1 Enquire
<402A63 LR083228
DUCT - BRAKE CALIPER COOLING
LH / From: K2000001 		- 1 Enquire
<8200 LR083104
PANEL - RADIATOR GRILLE - OPENING
2.0L I4 DSL MID DOHC AJ200 / RH / From: K2000001 		- 1 Enquire
<8200 LR083103
PANEL - RADIATOR GRILLE - OPENING
3.0 V6 D Gen2 Twin Turbo, With Standard Engine Cooling System / LH / From: K2000001 		- 1 Enquire
<04330 LR083061
INSERT - BUMPER AIR INTAKE
3.0 V6 D Low MT ROW / RH, Open Type, With Grille - Mesh / From: K2000001 		- 1 Enquire
<04330 LR083062
INSERT - BUMPER AIR INTAKE
2.0L I4 High DOHC AJ200 Petrol / LH, Open Type, With Grille - Mesh / From: K2000001 		- 1 Enquire
<04330 LR083063
INSERT - BUMPER AIR INTAKE
2.0L I4 DSL HIGH DOHC AJ200, With Standard Engine Cooling System / LH, Blanking, With Grille - Mesh / From: K2000001 		- 1 Enquire
<04330 LR136744
PLATE - BLANKING
3.0 V6 D Gen2 Twin Turbo, Less Engine Cooling System / RH, Blanking, With Grille - Mesh / From: K2000001 		- 1 Enquire
HB1 LR033409
BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD
M6 X 13.5MM / From: K2000001 		- 2 Enquire
HB2 LR034249
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 37MM / From: K2000001 		- 8 Enquire
HC1 LR018173
CLIP - RETAINING
With Black Gloss Grille / From: K2000001 		- 4 Enquire
HM1 RYQ500140
RIVET
8 X 20MM / From: K2000001 		- 4 Enquire
HM2 RZM500080
PIN - FASTENING
6.35 X 28.5MM, Support / From: K2000001 		- 4 Enquire
HN1 LR165498
NUT - EXPANSION
Plastic / From: K2000001 		- 8 Enquire
HS1 LR106494
SCREW
M5 x 20MM, Self Tapping / From: K2000001 		- 4 Enquire
HS2 HYP500140
SCREW
Less Headlamp Washer / 4 X 12MM / From: K2000001 		- 1 Enquire
HS3 LR038663
SCREW - FLAT ROUND HEAD
4 X 16MM, Pan Head - Torx / From: K2000001 		- 6 Enquire
HS4 RYG501590
SCREW
M6 x 22MM, Torx / From: K2000001 		- 6 Enquire
HS5 LR033401
SCREW AND WASHER
M6 x 19MM / From: K2000001 		- 6 Enquire
HS6 KYP500320
SCREW
Bolt And Washer, M6 x 30MM / From: K2000001 		- 6 Enquire
HS7 LR033052
SCREW AND WASHER - SELF-TAPPING
5 x 20MM / From: K2000001 		- 4 Enquire
HS8 DYP000040
SCREW
M5 / From: K2000001 		- 4 Enquire
HX1 KYH500100
NUT - SPRING
M10, Nut "U" Spring / From: K2000001 		- 8 Enquire
8A200 LR080004
REINFORCEMENT - FRONT BUMPER
From: K2000001 		- 1 Enquire
9C038 ZKC2228
NUT - SPECIAL
Front Number Plate Plinth - Japan / From: K2000001 		- 2 Enquire
9C038 ZKC2228
NUT - SPECIAL
Front Number Plate Plinth-China / From: K2000001 		- 4 Enquire
13L018 LR083109
CAP - POWERWASH JET
With Headlamp Power Wash / RH / From: K2000001 		- 1 Enquire
13L018 LR083110
CAP - POWERWASH JET
With Headlamp Power Wash / LH / From: K2000001 		- 1 Enquire
16K262 LR012844
CLIP - RETAINING
1/4 Turn Click Type / From: K2000001 		- 1 Enquire
17A385 LR083122
BRACKET - LICENSE PLATE
Front Number Plate Plinth ROW / From: K2000001 		- 1 Enquire
17A385 LR083125
BRACKET - LICENSE PLATE
Front Number Plate Plinth - Japan / From: K2000001 		- 1 Enquire
17A385 LR083127
BRACKET - LICENSE PLATE
Front Number Plate Plinth-China / From: K2000001 		- 1 Enquire
17D957 LR083055
BUMPER - FRONT
2.0L I4 DSL MID DOHC AJ200, Less Front Parking Aid, Rear View Camera-Fixed / Primed / From: K2000001 / To: K2400000 		- 1 Enquire
17D957 LR083056
BUMPER - FRONT
(-)"AUS", 2.0L I4 DSL MID DOHC AJ200, Less Camera System, With Front Parking Aid / Primed / From: K2000001 / To: K2400000 		- 1 Enquire
17D957 LR083057
BUMPER - FRONT
2.0L I4 DSL HIGH DOHC AJ200, Surround Camera System, With Front Parking Aid / Primed / From: K2000001 / To: K2400000 		- 1 Enquire
17D957 LR083058
BUMPER - FRONT
3.0 V6 D Gen2 Mono Turbo, Less Front Parking Aid, Rear View Camera-Fixed / Primed / From: K2000001 / To: K2400000 		- 1 Enquire
17D957 LR083059
BUMPER - FRONT
3.0 V6 D Gen2 Mono Turbo, Rear View Camera-Fixed, With Front Parking Aid / Primed / From: K2000001 / To: K2400000 		- 1 Enquire
17D957 LR116700
BUMPER - FRONT
2.0L I4 High DOHC AJ200 Petrol, Less Front Parking Aid, Surround Camera System / Primed / From: K2000001 / To: K2400000 		- 1 Enquire
17D957 LR083060
BUMPER - FRONT
3.0 V6 D Low MT ROW, Surround Camera System, With Front Parking Aid / Primed / From: K2000001 / To: K2400000 		- 1 Enquire
17D957 LR083056
BUMPER - FRONT
(-)"AUS", 2.0L I4 DSL HIGH DOHC AJ200, Less Camera System / Primed / From: K2400001 		- 1 Enquire
17D957 LR083059
BUMPER - FRONT
3.0 V6 D Low MT ROW, Rear View Camera-Fixed / Primed / From: K2400001 		- 1 Enquire
17D957 LR136758
BUMPER - FRONT
2.0L I4 DSL HIGH DOHC AJ200, Surround Camera System / Primed / From: K2400001 		- 1 Enquire
17D957 LR136759
BUMPER - FRONT
3.0L DOHC GDI SC V6 PETROL, Surround Camera System / Primed / From: K2400001 		- 1 Enquire
8200 LR083006
GRILLE - RADIATOR
With Brunel Grille / From: K2000001 / To: K2793673 		- 1 Enquire
8200 LR083007
GRILLE - RADIATOR
Grille - Dark Atlas / From: K2000001 / To: K2793673 		- 1 Enquire
8200 LR083008
GRILLE - RADIATOR
Grille - Atlas / From: K2000001 / To: K2793673 		- 1 Enquire
8200 LR110606
GRILLE - RADIATOR
With Black Grille / From: K2000001 		- 1 Enquire
8200 LR082696
GRILLE - RADIATOR
With Black Gloss Grille / From: K2000001 		- 1 Enquire
8200 LR123930
GRILLE - RADIATOR
With Brunel Grille / From: K2793674 		- 1 Enquire
8200 LR123931
GRILLE - RADIATOR
Grille - Dark Atlas / From: K2793674 		- 1 Enquire
8200 LR123932
GRILLE - RADIATOR
Grille - Atlas / From: K2793674 		- 1 Enquire
17752A LR083117
BRACKET - BUMPER MOUNTING
Center Location, Upper / From: K2000001 		- 1 Enquire
17752B LR146328
BRACKET - BUMPER MOUNTING
RH / From: L2444437 		- 1 Enquire
17752B LR129881
BRACKET - BUMPER MOUNTING
RH / From: K2000001 / To: L2444436 		- 1 Enquire
17752B LR129882
BRACKET - BUMPER MOUNTING
LH / From: K2000001 / To: L2444436 		- 1 Enquire
17752B LR146329
BRACKET - BUMPER MOUNTING
LH / From: L2444437 		- 1 Enquire
17752C LR083118
BRACKET - BUMPER MOUNTING
Center Location, Lower / From: K2000001 		- 1 Enquire
17752D LR137523
BRACKET - BUMPER MOUNTING
RH / From: K2000001 		- 1 Enquire
17752D LR137524
BRACKET - BUMPER MOUNTING
LH / From: K2000001 		- 1 Enquire

Haven't found what you're looking for?

More: Land Rover Bumpers Tuning Parts Need help? Call us

View Cart / Checkout
