Engine Harness (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Engine Harness (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001)

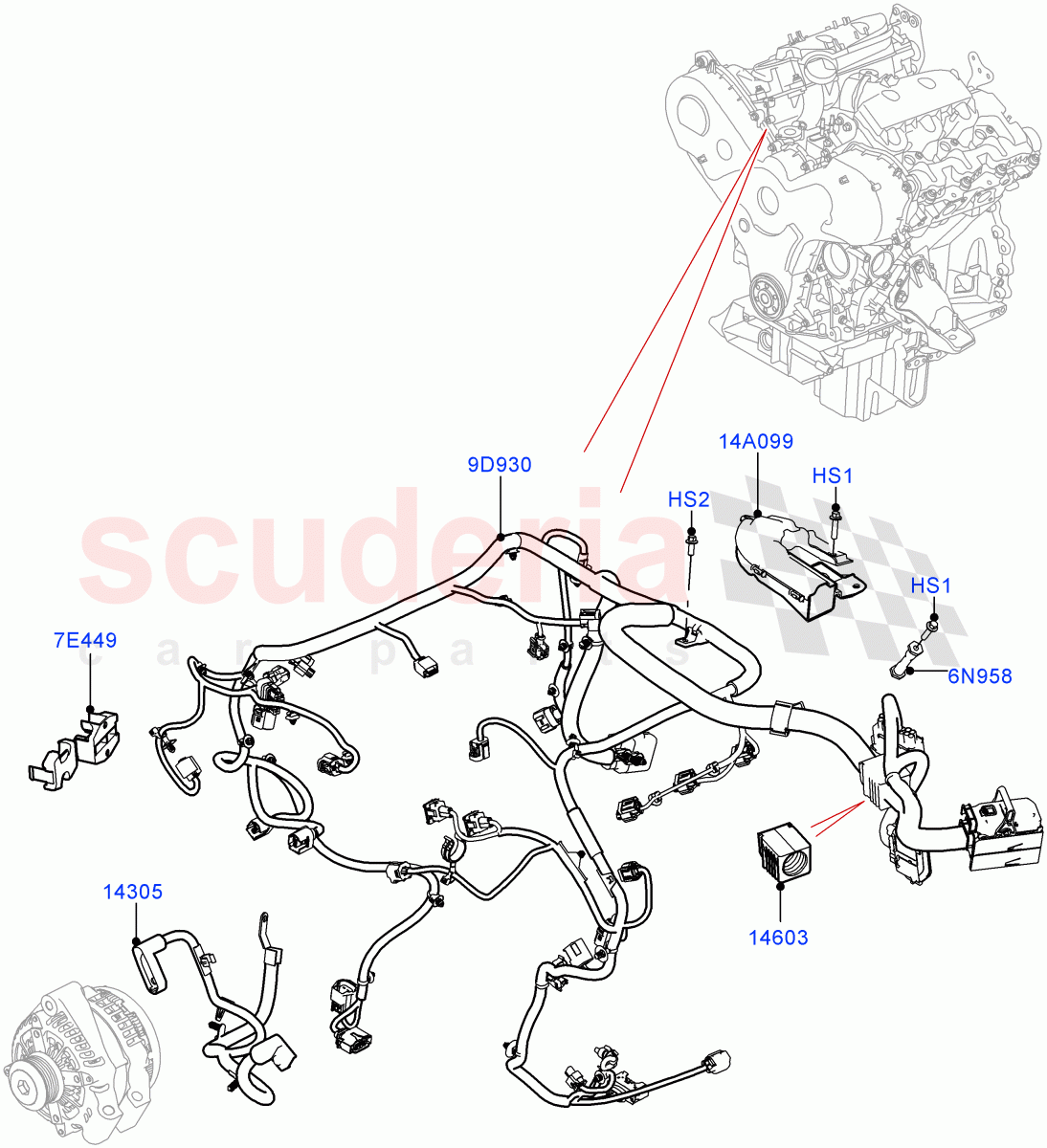

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106256	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4380670	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085676	WIRE - ALTERNATOR	Enquire	To Order
	LR085675	WIRE - ALTERNATOR	Enquire	To Order
	LR107822	WIRE - ALTERNATOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR141820	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041092	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085666	TERMINAL - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079353	WIRE	Enquire	To Order
	LR095898	WIRING - ENGINE	Enquire	To Order
	LR109350	WIRING - ENGINE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR041070	SHIELD - WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	FS106256	SCREW	FS106256 SCREW M6 x 25MM	-	2	Enquire
HS2	4380670	SCREW	4380670 SCREW Hexagonal Head, M6 X 16MM	-	2	Enquire
6N958	LR041092	STUD	LR041092 STUD M6 X 11 + M6 X 11	-	1	Enquire
7E449	LR085666	TERMINAL - BATTERY	LR085666 TERMINAL - BATTERY Battery Cables	-	1	Enquire
9D930	LR079353	WIRE	LR079353 WIRE 3.0 V6 D Low MT ROW / Engine / To: HA039578	-	1	Enquire
9D930	LR095898	WIRING - ENGINE	LR095898 WIRING - ENGINE 3.0 V6 D Gen2 Mono Turbo / Engine / To: HA028661	-	1	Enquire
9D930	LR109350	WIRING - ENGINE	LR109350 WIRING - ENGINE 3.0 V6 D Gen2 Mono Turbo / Engine / From: HA028662 / To: HA039578	-	1	Enquire
9D930	LR118759	WIRING - ENGINE	LR118759 WIRING - ENGINE 3.0 V6 D Low MT ROW / Engine / From: HA039579	-	1	Enquire
9D930	LR118757	WIRING - ENGINE	LR118757 WIRING - ENGINE 3.0 V6 D Gen2 Mono Turbo / Engine / From: HA039579	-	1	Enquire
9D930	LR118761	WIRING - ENGINE	LR118761 WIRING - ENGINE 3.0 V6 D Gen2 Twin Turbo / Engine / From: KA000001	-	1	Enquire
14A099	LR041070	SHIELD - WIRING	LR041070 SHIELD - WIRING Engine Harness / From: KA000001	-	1	Enquire
14305	LR085676	WIRE - ALTERNATOR	LR085676 WIRE - ALTERNATOR Standard Electric Starter Motor / To: HA039578	-	1	Enquire
14305	LR085675	WIRE - ALTERNATOR	LR085675 WIRE - ALTERNATOR Starter - Stop/Start System / To: HA039578	-	1	Enquire
14305	LR107822	WIRE - ALTERNATOR	LR107822 WIRE - ALTERNATOR Starter - Stop/Start System / From: HA039579 / To: JA999999	-	1	Enquire
14305	LR107817	WIRE - ALTERNATOR	LR107817 WIRE - ALTERNATOR Standard Electric Starter Motor / From: HA039579 / To: JA999999	-	1	Enquire
14305	LR120985	WIRE - ALTERNATOR	LR120985 WIRE - ALTERNATOR Starter - Stop/Start System / From: KA000001	-	1	Enquire
14305	LR120986	WIRE - ALTERNATOR	LR120986 WIRE - ALTERNATOR Standard Electric Starter Motor / From: KA000001	-	1	Enquire
14603	LR141820	PLUG - BLANKING	LR141820 PLUG - BLANKING Engine Harness	-	1	Enquire
