Name: Headlamps And Front Flasher Lamps (Nitra Plant Build) (With Halogen Headlamp) ((V) FROMK2000001)
Rating: 5.0 (1 reviews)

Headlamps And Front Flasher Lamps (Nitra Plant Build) (With Halogen Headlamp) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Headlamps And Front Flasher Lamps (Nitra Plant Build) (With Halogen Headlamp) ((V) FROMK2000001)

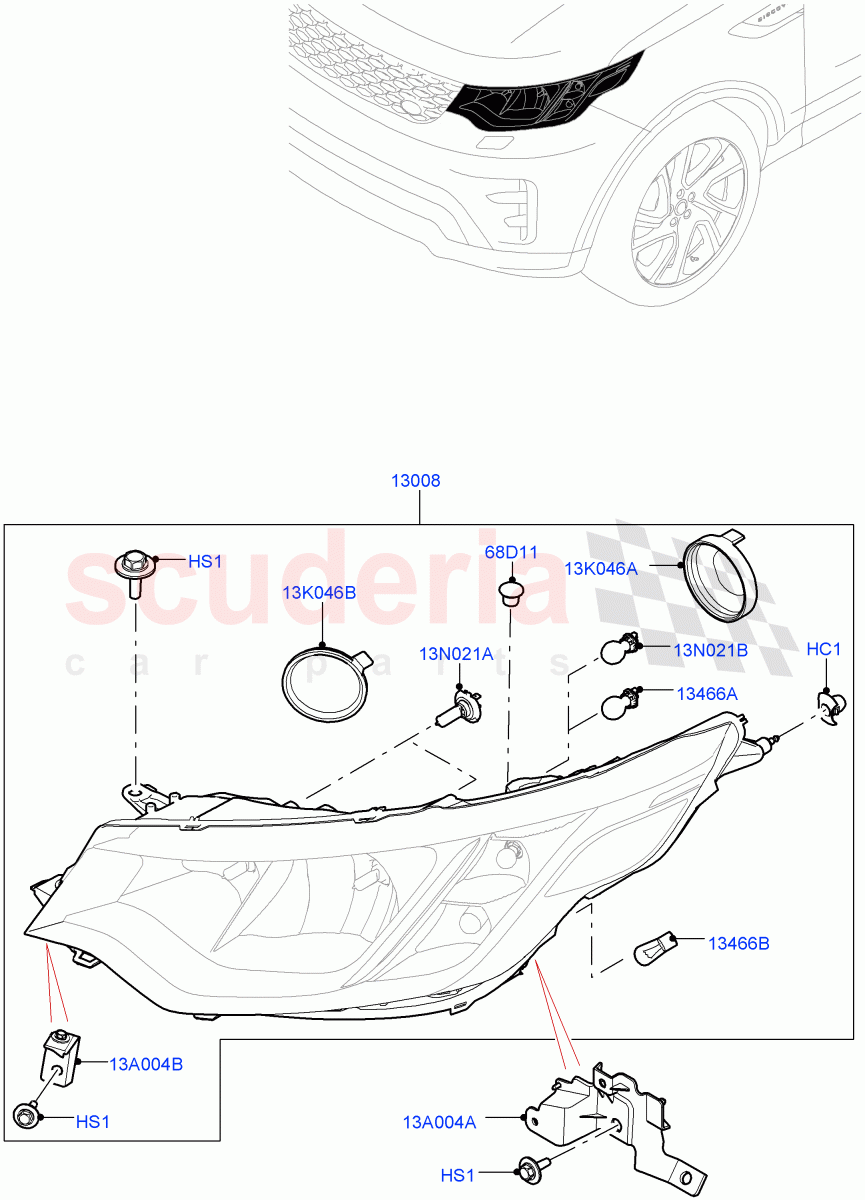

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038033	CLIP - RETAINING	$1.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085633	HEADLAMP AND FLASHER	$433.19	To Order
	LR085634	HEADLAMP AND FLASHER	$673.69	To Order
	LR085636	HEADLAMP AND FLASHER	$433.19	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR025160	CAP - SCREW	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066962	BULB	$54.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044760	BULB	$6.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086096	BRACKET - HEADLAMP MOUNTING	$89.58	To Order
	LR086097	BRACKET - HEADLAMP MOUNTING	$89.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099696	BRACKET - HEADLAMP MOUNTING	$17.53	To Order
	LR099695	BRACKET - HEADLAMP MOUNTING	$17.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091770	COVER - BULB	$12.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091768	COVER - BULB	$12.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000703	BULB	$15.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086132	BULB	$24.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR038033	CLIP - RETAINING IN STOCK	LR038033 CLIP - RETAINING Retainer / From: K2000001 IN STOCK	$1.99	2
HS1	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM / From: K2000001	$1.61	4
13A004A	LR086096	BRACKET - HEADLAMP MOUNTING	LR086096 BRACKET - HEADLAMP MOUNTING RH, Fender / From: K2000001	$89.58	1
13A004A	LR086097	BRACKET - HEADLAMP MOUNTING	LR086097 BRACKET - HEADLAMP MOUNTING LH, Fender / From: K2000001	$89.58	1
13A004B	LR099696	BRACKET - HEADLAMP MOUNTING	LR099696 BRACKET - HEADLAMP MOUNTING RH, Bumper Grille / From: K2000001	$17.53	1
13A004B	LR099695	BRACKET - HEADLAMP MOUNTING	LR099695 BRACKET - HEADLAMP MOUNTING LH, Bumper Grille / From: K2000001	$17.53	1
13K046A	LR091770	COVER - BULB	LR091770 COVER - BULB 71MM, Cap / From: K2000001	$12.49	2
13K046B	LR091768	COVER - BULB	LR091768 COVER - BULB 64MM, Cap / From: K2000001	$12.49	2
13N021A	LR000703	BULB	LR000703 BULB H7 12V 55W / From: K2000001	$15.92	2
13N021B	LR086132	BULB	LR086132 BULB H/Lamp Operation FM VSS 108 Pattern / 28/8W / From: K2000001	$24.57	2
68D11	LR025160	CAP - SCREW	LR025160 CAP - SCREW H/Lamp Operation FM VSS 108 Pattern / From: K2000001	$0.96	2
13008	LR085633	HEADLAMP AND FLASHER	LR085633 HEADLAMP AND FLASHER H/Lamp Operation RHD - Left Justify, RHD / RH / From: K2000001 / To: L2443562	$433.19	1
13008	LR085634	HEADLAMP AND FLASHER	LR085634 HEADLAMP AND FLASHER H/Lamp Operation LHD-Right Justify, LHD / RH / From: K2000001 / To: L2443562	$673.69	1
13008	LR085636	HEADLAMP AND FLASHER	LR085636 HEADLAMP AND FLASHER H/Lamp Operation RHD - Left Justify, RHD / LH / From: K2000001 / To: L2443562	$433.19	1
13008	LR085637	HEADLAMP AND FLASHER	LR085637 HEADLAMP AND FLASHER H/Lamp Operation LHD-Right Justify, LHD / LH / From: K2000001 / To: L2443562	$673.69	1
13008	LR103560	HEADLAMP AND FLASHER	LR103560 HEADLAMP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, LHD / RH / From: K2000001	$541.05	1
13008	LR103575	HEADLAMP AND FLASHER	LR103575 HEADLAMP AND FLASHER H/Lamp Operation FM VSS 108 Pattern, LHD / LH / From: K2000001	$541.05	1
13008	LR144908	HEADLAMP AND FLASHER	LR144908 HEADLAMP AND FLASHER H/Lamp Operation RHD - Left Justify, RHD / RH / From: L2443563 / To: L2999999	$611.06	1
13008	LR144910	HEADLAMP AND FLASHER	LR144910 HEADLAMP AND FLASHER H/Lamp Operation RHD - Left Justify, RHD / LH / From: L2443563 / To: L2999999	$611.06	1
13008	LR144911	HEADLAMP AND FLASHER	LR144911 HEADLAMP AND FLASHER H/Lamp Operation LHD-Right Justify, LHD / LH / From: L2443563 / To: L2999999	$673.69	1
13008	LR144909	HEADLAMP AND FLASHER	LR144909 HEADLAMP AND FLASHER H/Lamp Operation LHD-Right Justify, LHD / RH / From: L2443563 / To: L2999999	$673.69	1
13466A	LR066962	BULB	LR066962 BULB H/Lamp Operation RHD - Left Justify / Amber, Indicator Bulb, PWY24W / From: K2000001	$54.62	2
13466B	LR044760	BULB	LR044760 BULB H/Lamp Operation RHD - Left Justify / 21/5 WATT / From: K2000001	$6.59	2
