Parking Distance Control (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Parking Distance Control (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR081446 CAP - PARKING SENSOR Enquire To Order
LR081447 CAP - PARKING SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR093843 SENSOR - PARKING AID SYSTEM Enquire To Order
LR081451 SENSOR - PARKING AID SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR081444 SENSOR - PARKING AID SYSTEM Enquire To Order
LR093753 SENSOR - PARKING AID SYSTEM Enquire To Order
LR081448 SENSOR - PARKING AID SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR081449 SENSOR - PARKING AID SYSTEM Enquire To Order
LR081449 SENSOR - PARKING AID SYSTEM Enquire To Order
LR095414 SENSOR - PARKING AID SYSTEM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR024299 SENSOR - PARKING AID SYSTEM Enquire To Order
LR024299 SENSOR - PARKING AID SYSTEM Enquire To Order
LR093754 SENSOR - PARKING AID SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR081442 MODULE - PARKING AID SYSTEM Enquire To Order
LR108391 MODULE - PARKING AID SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR081443 MODULE - PARKING AID SYSTEM Enquire To Order
LR117587 MODULE - PARKING AID SYSTEM Enquire To Order
LR109363 MODULE - PARKING AID SYSTEM Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

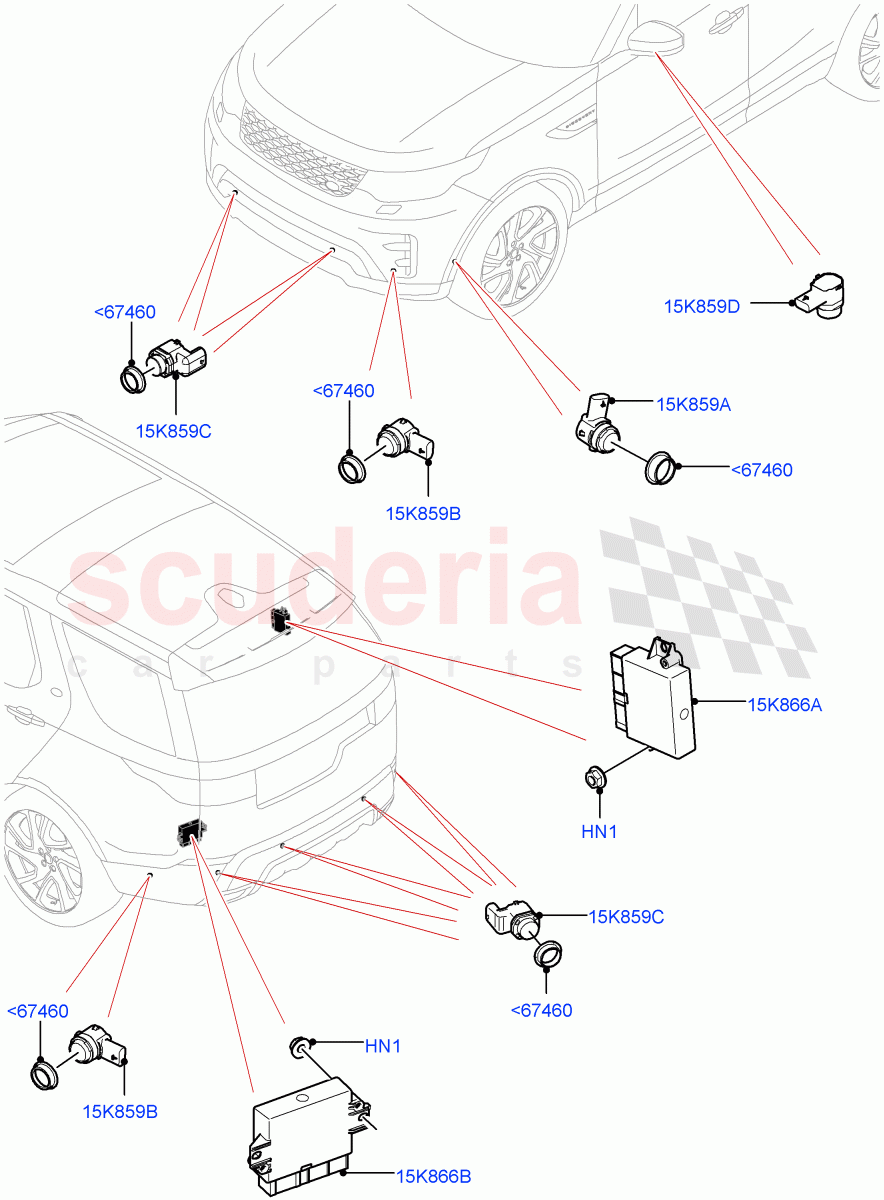

Parking Distance Control (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<67460 LR081446
CAP - PARKING SENSOR
Black Cap, To Park Aid Sensors 		- - Enquire
<67460 LR081447
CAP - PARKING SENSOR
To Park Aid Sensors, Transparent 		- - Enquire
HN1 FN106042
NUT
Hexagonal Head, M6 		- 4 Enquire
15K859A LR093843
SENSOR - PARKING AID SYSTEM
360 Parking Aid / 90 Degree Connector, Side / From: KA000001 		- 2 Enquire
15K859A LR081451
SENSOR - PARKING AID SYSTEM
With Park Side Flank Guard / Side / To: JA999999 		- 2 Enquire
15K859B LR081444
SENSOR - PARKING AID SYSTEM
Less Park Side Guard, With Front Parking Aid / Front Outer / To: JA999999 		- 2 Enquire
15K859B LR093753
SENSOR - PARKING AID SYSTEM
360 Parking Aid / Front Outer, Rear Side / From: KA000001 		- 4 Enquire
15K859B LR081448
SENSOR - PARKING AID SYSTEM
With Park Side Flank Guard / Front Outer, Rear Side / To: JA999999 		- 4 Enquire
15K859C LR081449
SENSOR - PARKING AID SYSTEM
With Front Parking Aid / Front Inner / To: JA999999 		- 2 Enquire
15K859C LR081449
SENSOR - PARKING AID SYSTEM
With Rear Parking Aid / Rear / To: JA999999 		- 4 Enquire
15K859C LR095414
SENSOR - PARKING AID SYSTEM
With Front Parking Aid / Front Inner / From: KA000001 		- 2 Enquire
15K859C LR095414
SENSOR - PARKING AID SYSTEM
With Rear Parking Aid / Rear / From: KA000001 		- 4 Enquire
15K859D LR024299
SENSOR - PARKING AID SYSTEM
Water Wading Aid - Electronic / RH And LH, Side View Mirror / To: JA999999 		- 2 Enquire
15K859D LR024299
SENSOR - PARKING AID SYSTEM
Water Wading Aid / RH And LH, Side View Mirror / From: KA000001 		- 2 Enquire
15K859D LR093754
SENSOR - PARKING AID SYSTEM
With Front Parking Aid / 90 Degree Connector, RH And LH, Side View Mirror / From: KA000001 		- 2 Enquire
15K866A LR081442
MODULE - PARKING AID SYSTEM
Water Wading Aid - Electronic / To: HA350436 		- 1 Enquire
15K866A LR108391
MODULE - PARKING AID SYSTEM
Water Wading Aid - Electronic / From: HA350437 / To: JA999999 		- 1 Enquire
15K866B LR081443
MODULE - PARKING AID SYSTEM
With Rear Parking Aid / To: JA079336 		- 1 Enquire
15K866B LR117587
MODULE - PARKING AID SYSTEM
From: KA000001 / To: KA096384 		- 1 Enquire
15K866B LR109363
MODULE - PARKING AID SYSTEM
With Rear Parking Aid / From: JA079337 / To: JA999999 		- 1 Enquire
15K866B LR136989
MODULE - PARKING AID SYSTEM
From: KA096385 		- 1 Enquire
