Side Trim (Luggage Compartment) (Changsu (China), With 60/40 Split - Folding Rr Seat, Less Chiller Unit) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Side Trim (Luggage Compartment) (Changsu (China), With 60/40 Split - Folding Rr Seat, Less Chiller...

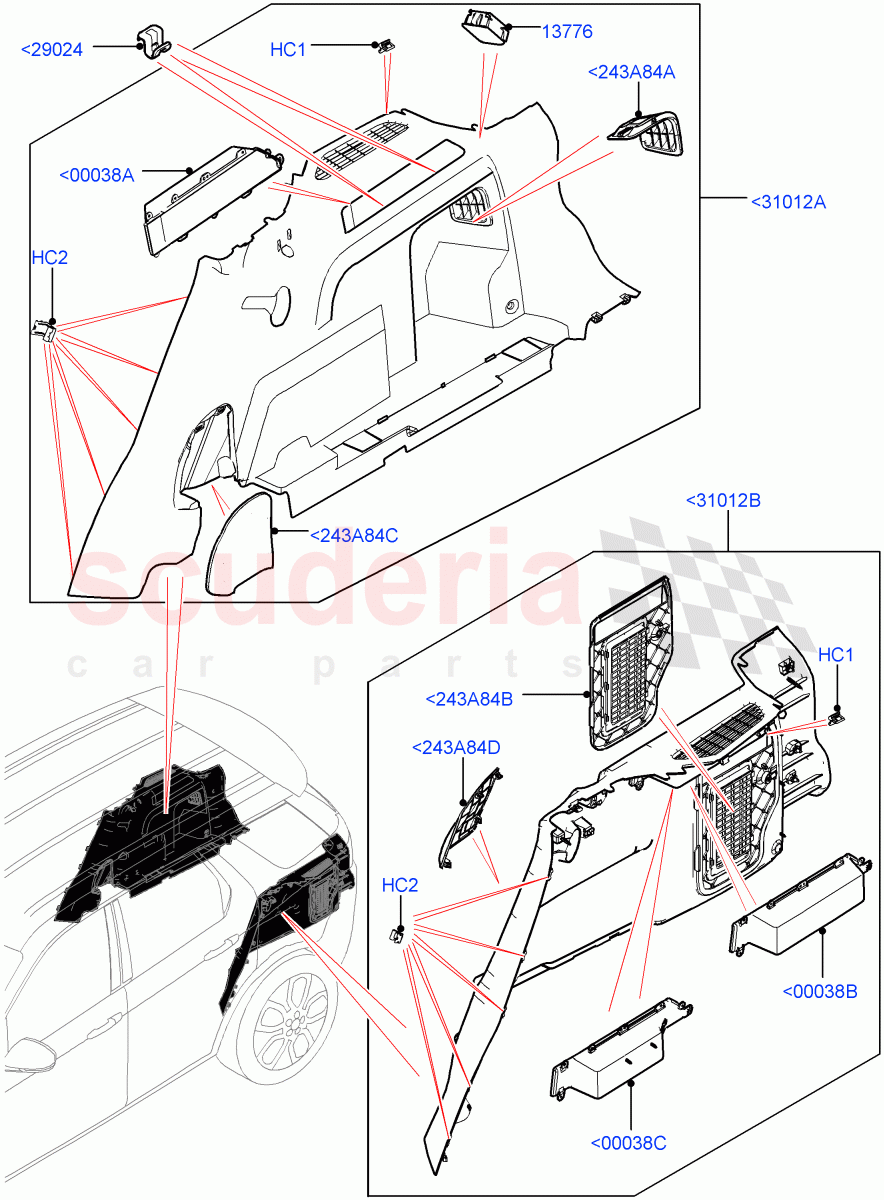

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR036129	CLIP - TRIM	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031782	CLIP - TRIM	$1.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034050	LAMP - INTERIOR	$40.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066322	HOOK - LOADING COMPARTMENT	$8.62	To Order
	LR066324	HOOK - LOADING COMPARTMENT	$8.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062345	POCKET - LOAD COMPARTMENT	$28.20	To Order
	LR062346	POCKET - LOAD COMPARTMENT	$28.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062353	POCKET - LOAD COMPARTMENT	$28.20	To Order
	LR062354	POCKET - LOAD COMPARTMENT	$28.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062355	POCKET - LOAD COMPARTMENT	$28.20	To Order
	LR062356	POCKET - LOAD COMPARTMENT	$28.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076936	TRIM - LOAD COMPARTMENT - SIDE	$609.88	To Order
	LR076937	TRIM - LOAD COMPARTMENT - SIDE	$549.91	To Order
	LR076938	TRIM - LOAD COMPARTMENT - SIDE	$560.99	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR076920	TRIM - LOAD COMPARTMENT - SIDE	$608.46	To Order
	LR076921	TRIM - LOAD COMPARTMENT - SIDE	$471.79	To Order
	LR089493	TRIM - LOAD COMPARTMENT - SIDE	$542.16	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR062339	COVER - VENT AIR	$16.21	To Order
	LR062340	COVER - VENT AIR	$16.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074786	COVER - VENT AIR	$42.72	To Order
	LR074787	COVER - VENT AIR	$45.41	To Order
	LR089498	COVER - VENT AIR	$40.39	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR065820	COVER - LOADING COMPARTMENT	$16.51	To Order
	LR065821	COVER - LOADING COMPARTMENT	$16.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065822	COVER - LOADING COMPARTMENT	$16.51	To Order
	LR065823	COVER - LOADING COMPARTMENT	$16.51	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<243A84A	LR062339	COVER - VENT AIR	LR062339 COVER - VENT AIR I/P Facia Contrast - Lunar/Glacia / From: FG000001	$16.21	1
<243A84A	LR062340	COVER - VENT AIR	LR062340 COVER - VENT AIR I/P Facia Contrast - Ebony/Ivory / From: FG000001	$16.84	1
<243A84B	LR074786	COVER - VENT AIR	LR074786 COVER - VENT AIR I/P Facia Contrast - Cirrus/Lunar / From: FG000001 / To: GG319004	$42.72	1
<243A84B	LR074787	COVER - VENT AIR	LR074787 COVER - VENT AIR I/P Facia Cntr-Ebony Black/Almond / From: FG000001 / To: GG319004	$45.41	1
<243A84B	LR089498	COVER - VENT AIR	LR089498 COVER - VENT AIR I/P Facia Contrast - Lunar/Glacia / From: GG319005	$40.39	1
<243A84B	LR089499	COVER - VENT AIR	LR089499 COVER - VENT AIR I/P Facia Contrast - Ebony/Ivory / From: GG319005	$40.39	1
<243A84C	LR065820	COVER - LOADING COMPARTMENT	LR065820 COVER - LOADING COMPARTMENT I/P Facia Contrast - Lunar/Glacia / RH / From: FG000001	$16.51	1
<243A84C	LR065821	COVER - LOADING COMPARTMENT	LR065821 COVER - LOADING COMPARTMENT I/P Facia Contrast - Ebony/Ivory / RH / From: FG000001	$16.51	1
<243A84D	LR065822	COVER - LOADING COMPARTMENT	LR065822 COVER - LOADING COMPARTMENT I/P Facia Contrast - Lunar/Glacia / LH / From: FG000001	$16.51	1
<243A84D	LR065823	COVER - LOADING COMPARTMENT	LR065823 COVER - LOADING COMPARTMENT I/P Facia Contrast - Ebony/Ivory / LH / From: FG000001	$16.51	1
<00038A	LR062345	POCKET - LOAD COMPARTMENT	LR062345 POCKET - LOAD COMPARTMENT I/P Facia Contrast - Lunar/Glacia / RH / From: FG000001	$28.20	1
<00038A	LR062346	POCKET - LOAD COMPARTMENT	LR062346 POCKET - LOAD COMPARTMENT I/P Facia Contrast - Ebony/Ivory / RH / From: FG000001	$28.20	1
<00038B	LR062353	POCKET - LOAD COMPARTMENT	LR062353 POCKET - LOAD COMPARTMENT I/P Facia Contrast - Cirrus/Lunar, Less Power Point Plug - Rear / LH / From: FG000001	$28.20	1
<00038B	LR062354	POCKET - LOAD COMPARTMENT	LR062354 POCKET - LOAD COMPARTMENT I/P Facia Contrast - Ebony/Lunar, Less Power Point Plug - Rear / LH / From: FG000001	$28.20	1
<00038C	LR062355	POCKET - LOAD COMPARTMENT	LR062355 POCKET - LOAD COMPARTMENT I/P Facia Contrast - Lunar/Glacia, With Power Point Plug - Rear, With X-Bar Trailer Prep - NAS / LH / From: FG000001	$28.20	1
<00038C	LR062356	POCKET - LOAD COMPARTMENT	LR062356 POCKET - LOAD COMPARTMENT I/P Facia Contrast - Ebony/Lunar, Less Trailer Towing Hitch, With Power Point Plug - Rear / LH / From: FG000001	$28.20	1
<29024	LR066322	HOOK - LOADING COMPARTMENT	LR066322 HOOK - LOADING COMPARTMENT I/P Facia Contrast - Lunar/Glacia / RH/LH / From: FG000001	$8.62	4
<29024	LR066324	HOOK - LOADING COMPARTMENT	LR066324 HOOK - LOADING COMPARTMENT I/P Facia Contrast - Ebony/Ivory / RH/LH / From: FG000001	$8.62	4
<31012A	LR076936	TRIM - LOAD COMPARTMENT - SIDE	LR076936 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Lunar/Glacia / RH / From: FG000001 / To: KG422268	$609.88	1
<31012A	LR076937	TRIM - LOAD COMPARTMENT - SIDE	LR076937 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Ebony/Ivory / RH / From: FG000001 / To: KG446856	$549.91	1
<31012A	LR076938	TRIM - LOAD COMPARTMENT - SIDE	LR076938 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Lunar/Glacia, With 60/40 Manual Fold Thru Rr Seat / RH / From: HG347885 / To: KG446856	$560.99	1
<31012A	LR112258	TRIM - LOAD COMPARTMENT - SIDE	LR112258 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Cirrus/Lunar / RH / From: KG422269 / To: KG446856	$525.21	1
<31012A	LR135832	TRIM - QUARTER	LR135832 TRIM - QUARTER RH / From: KG446857	$531.67	1
<31012B	LR076920	TRIM - LOAD COMPARTMENT - SIDE	LR076920 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Cirrus/Lunar / LH / From: FG000001 / To: GG319004	$608.46	1
<31012B	LR076921	TRIM - LOAD COMPARTMENT - SIDE	LR076921 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Cntr-Ebony Black/Almond / LH / From: FG000001 / To: GG319004	$471.79	1
<31012B	LR089493	TRIM - LOAD COMPARTMENT - SIDE	LR089493 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Ebony/Ivory / LH / From: GG319005 / To: HG347883	$542.16	1
<31012B	LR089492	TRIM - LOAD COMPARTMENT - SIDE	LR089492 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Lunar/Glacia / LH / From: GG319005 / To: HG347883	$526.99	1
<31012B	LR083712	TRIM - LOAD COMPARTMENT - SIDE	LR083712 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Lunar/Glacia / LH / From: HG347884 / To: KG446856	$559.83	1
<31012B	LR083711	TRIM - LOAD COMPARTMENT - SIDE	LR083711 TRIM - LOAD COMPARTMENT - SIDE I/P Facia Contrast - Ebony Black / LH / From: HG347884 / To: KG446856	$504.38	1
<31012B	LR133845	TRIM - LOAD COMPARTMENT - SIDE	LR133845 TRIM - LOAD COMPARTMENT - SIDE Less Trailer Towing Hitch, Power Pack 2(Row2,Row3 USB) / LH / From: KG446857	$443.36	1
HC1	LR036129	CLIP - TRIM	LR036129 CLIP - TRIM Clip 0.8 + 18.4 X 4.5 X 1.25 Push In Steel / From: FG000001	$0.93	4
HC2	LR031782	CLIP - TRIM	LR031782 CLIP - TRIM 0.8-1.4 / From: FG000001	$1.58	10
13776	LR034050	LAMP - INTERIOR	LR034050 LAMP - INTERIOR Lamp - Ambient Lighting / From: FG000001	$40.16	1
