Load Compartment Trim (Floor) (Changsu (China), With 3rd Row Double Seat, With 7 Seat Configuration) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Load Compartment Trim (Floor) (Changsu (China), With 3rd Row Double Seat, With 7 Seat...

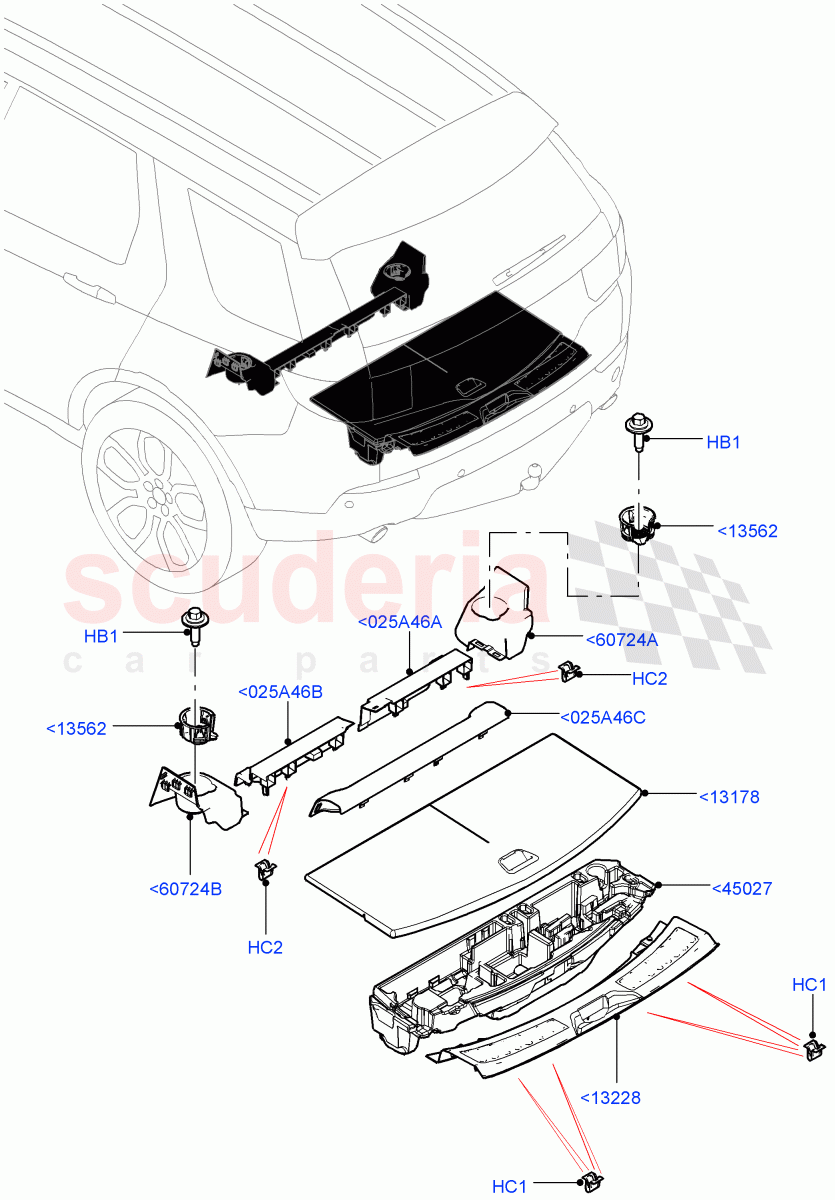

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024183	BOLT	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016993	CLIP	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038293	CLIP - CENTRE CONSOLE	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065267	COVER - SPARE WHEEL PANEL	$281.90	To Order
	LR065268	COVER - SPARE WHEEL PANEL	$281.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060583	PANEL - SILL - INNER	$166.52	To Order
	LR060584	PANEL - SILL - INNER	$166.52	To Order
	VPLCS0582PVJ	PLATE - DOOR SCUFF	$211.95	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR021330	HOLDER - CUP	$27.53	To Order
	LR087454	HOLDER - CUP	$29.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078865	COVER - SPARE WHEEL PANEL	$114.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074809	PANEL - CUP HOLDER	$99.68	To Order
	LR074810	PANEL - CUP HOLDER	$97.69	To Order
	LR127315	PANEL - CUP HOLDER	$94.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074812	PANEL - CUP HOLDER	$99.68	To Order
	LR074811	PANEL - CUP HOLDER	$99.68	To Order
	LR127314	PANEL - CUP HOLDER	$94.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074805	COVER - HEELBOARD	$30.11	To Order
	LR074806	COVER - HEELBOARD	$31.16	To Order
	LR079654	COVER - HEELBOARD	$31.77	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR074807	COVER - HEELBOARD	$30.11	To Order
	LR074808	COVER - HEELBOARD	$29.51	To Order
	LR079652	COVER - HEELBOARD	$61.35	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR127310	COVER - HEELBOARD	$166.84	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<025A46A	LR074805	COVER - HEELBOARD	LR074805 COVER - HEELBOARD I/P Facia Contrast - Lunar/Glacia / RH / From: FG000001 / To: GG313188	$30.11	1
<025A46A	LR074806	COVER - HEELBOARD	LR074806 COVER - HEELBOARD I/P Facia Contrast - Ebony Black / RH / From: FG000001 / To: GG313188	$31.16	1
<025A46A	LR079654	COVER - HEELBOARD	LR079654 COVER - HEELBOARD I/P Facia Contrast - Ebony Black / RH / From: GG313189	$31.77	1
<025A46A	LR079653	COVER - HEELBOARD	LR079653 COVER - HEELBOARD I/P Facia Contrast - Lunar/Glacia / RH / From: GG313189	$61.35	1
<025A46B	LR074807	COVER - HEELBOARD	LR074807 COVER - HEELBOARD I/P Facia Contrast - Lunar/Glacia / LH / From: FG000001 / To: GG313188	$30.11	1
<025A46B	LR074808	COVER - HEELBOARD	LR074808 COVER - HEELBOARD I/P Facia Contrast - Ebony Black / LH / From: FG000001 / To: GG313188	$29.51	1
<025A46B	LR079652	COVER - HEELBOARD	LR079652 COVER - HEELBOARD I/P Facia Contrast - Ebony Black / LH / From: GG313189	$61.35	1
<025A46B	LR079651	COVER - HEELBOARD	LR079651 COVER - HEELBOARD I/P Facia Contrast - Lunar/Glacia / LH / From: GG313189	$30.11	1
<025A46C	LR127310	COVER - HEELBOARD	LR127310 COVER - HEELBOARD With 3rd Row Double Seat / From: KG446857	$166.84	1
<13178	LR065267	COVER - SPARE WHEEL PANEL	LR065267 COVER - SPARE WHEEL PANEL I/P Facia Contrast - Lunar/Glacia / From: FG000001	$281.90	1
<13178	LR065268	COVER - SPARE WHEEL PANEL	LR065268 COVER - SPARE WHEEL PANEL I/P Facia Contrast - Ebony/Ivory / From: FG000001	$281.90	1
<13228	LR060583	PANEL - SILL - INNER	LR060583 PANEL - SILL - INNER I/P Facia Contrast - Cirrus/Lunar / From: FG000001 / To: KG446856	$166.52	1
<13228	LR060584	PANEL - SILL - INNER	LR060584 PANEL - SILL - INNER I/P Facia Cntr-Ebony Black/Almond / From: FG000001 / To: KG446856	$166.52	1
<13228	VPLCS0582PVJ	PLATE - DOOR SCUFF	VPLCS0582PVJ PLATE - DOOR SCUFF Frt Dr Scuff Plate-Metal Brand Scpt / From: KG446857	$211.95	1
<13228	LR060584	PANEL - SILL - INNER	LR060584 PANEL - SILL - INNER Side Door Scuff Plates / From: KG446857	$166.52	1
<13562	LR021330	HOLDER - CUP	LR021330 HOLDER - CUP RH/LH / From: FG000001 / To: GG346815	$27.53	2
<13562	LR087454	HOLDER - CUP	LR087454 HOLDER - CUP RH/LH / From: GG346816	$29.28	2
<45027	LR078865	COVER - SPARE WHEEL PANEL	LR078865 COVER - SPARE WHEEL PANEL From: FG000001	$114.77	1
<60724A	LR074809	PANEL - CUP HOLDER	LR074809 PANEL - CUP HOLDER I/P Facia Contrast - Cirrus/Lunar / RH / From: FG000001 / To: KG446856	$99.68	1
<60724A	LR074810	PANEL - CUP HOLDER	LR074810 PANEL - CUP HOLDER I/P Facia Cntr-Ebony Black/Almond / RH / From: FG000001 / To: KG446856	$97.69	1
<60724A	LR127315	PANEL - CUP HOLDER	LR127315 PANEL - CUP HOLDER With 3rd Row Double Seat / RH / From: KG446857	$94.36	1
<60724B	LR074812	PANEL - CUP HOLDER	LR074812 PANEL - CUP HOLDER I/P Facia Contrast - Cirrus/Lunar / LH / From: HG386098 / To: KG446856	$99.68	1
<60724B	LR074811	PANEL - CUP HOLDER	LR074811 PANEL - CUP HOLDER I/P Facia Contrast - Ebony/Ivory / LH / From: GG329500 / To: KG446856	$99.68	1
<60724B	LR127314	PANEL - CUP HOLDER	LR127314 PANEL - CUP HOLDER With 3rd Row Double Seat / LH / From: KG446857	$94.36	1
HB1	LR024183	BOLT	LR024183 BOLT Hexagonal Head, M8 X 25MM / From: FG000001	$1.70	2
HC1	LR016993	CLIP	LR016993 CLIP 6 x 22MM / From: FG000001	$2.54	7
HC2	LR038293	CLIP - CENTRE CONSOLE	LR038293 CLIP - CENTRE CONSOLE 1.35 X 6 X 22 X 0.7 - 1.2 / From: FG000001	$1.05	6
