Front Door Trim Installation (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Front Door Trim Installation (Itatiaia (Brazil)) ((V) FROMGT000001)

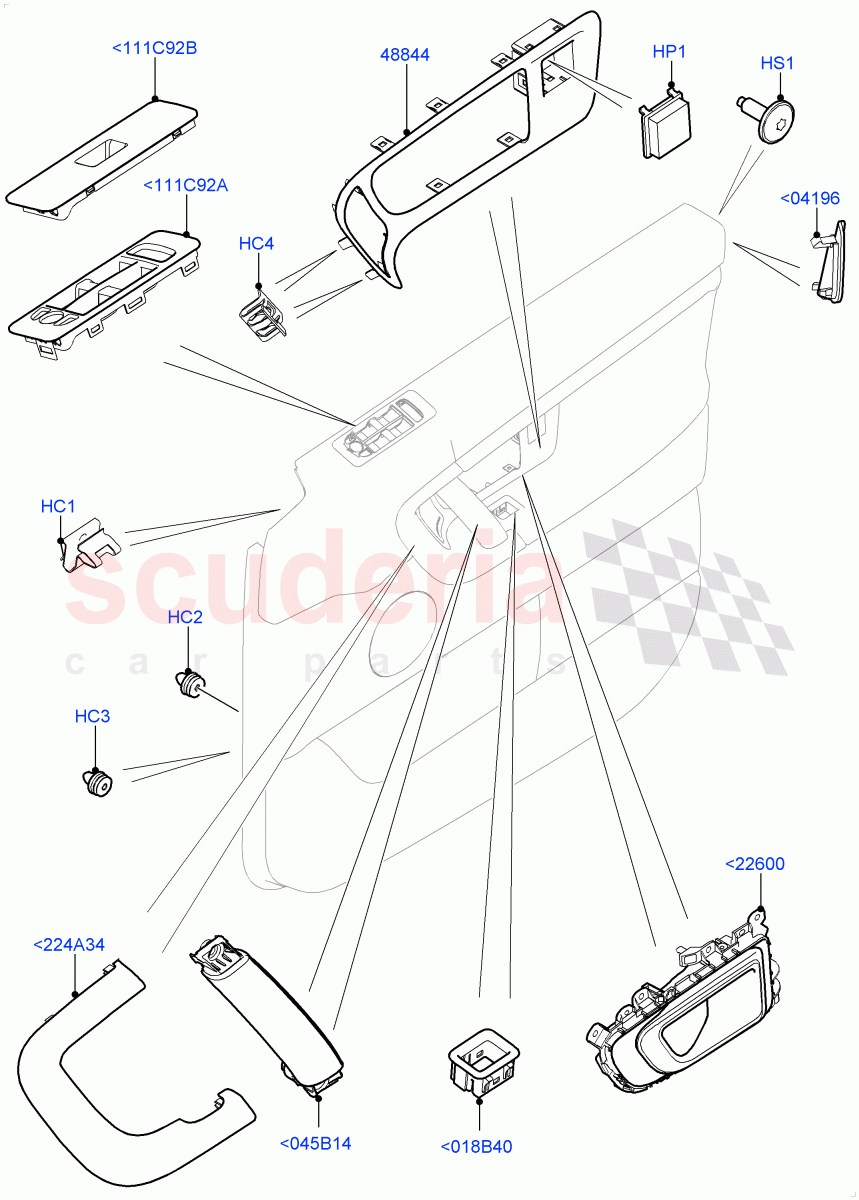

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001790	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013135	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044885	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077426	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068825	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003493	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073072	GRILLE - SPEAKER	Enquire	To Order
	LR073073	GRILLE - SPEAKER	Enquire	To Order
	LR073074	GRILLE - SPEAKER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR063729	COVER - DOOR TRIM	Enquire	To Order
	LR063731	COVER - DOOR TRIM	Enquire	To Order
	LR063732	COVER - DOOR TRIM	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR059559	HANDLE - DOOR - INNER	Enquire	To Order
	LR059560	HANDLE - DOOR - INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063726	BEZEL - SWITCH	Enquire	To Order
	LR063727	BEZEL - SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076128	HANDLE - DOOR PULL	Enquire	To Order
	LR076150	HANDLE - DOOR PULL	Enquire	To Order
	LR076151	HANDLE - DOOR PULL	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR076647	COVER - DOOR INNER PANEL	Enquire	To Order
	LR076648	COVER - DOOR INNER PANEL	Enquire	To Order
	LR076649	COVER - DOOR INNER PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR075871	COVER - DOOR SWITCH	Enquire	To Order
	LR075870	COVER - DOOR SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063714	COVER - DOOR SWITCH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<018B40	LR063726	BEZEL - SWITCH	LR063726 BEZEL - SWITCH RH / From: GT000001	-	1	Enquire
<018B40	LR063727	BEZEL - SWITCH	LR063727 BEZEL - SWITCH LH / From: GT000001	-	1	Enquire
<045B14	LR076128	HANDLE - DOOR PULL	LR076128 HANDLE - DOOR PULL PVC/Painted Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076150	HANDLE - DOOR PULL	LR076150 HANDLE - DOOR PULL I/P Facia Contrast - Cirrus/Lunar, PVC Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076151	HANDLE - DOOR PULL	LR076151 HANDLE - DOOR PULL I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR063696	HANDLE - DOOR PULL	LR063696 HANDLE - DOOR PULL I/P Facia Contrast - Ebony/Ivory, Windsor Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076153	HANDLE - DOOR PULL	LR076153 HANDLE - DOOR PULL Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, Windsor Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076154	HANDLE - DOOR PULL	LR076154 HANDLE - DOOR PULL I/P Facia Contrast - Lunar/Glacia, Windsor Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076157	HANDLE - DOOR PULL	LR076157 HANDLE - DOOR PULL I/P Facia Contrast - Ebony Black, Tan, Windsor Door Trim Panel / RH / From: GT000001	-	1	Enquire
<045B14	LR076171	HANDLE - DOOR PULL	LR076171 HANDLE - DOOR PULL PVC/Painted Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076160	HANDLE - DOOR PULL	LR076160 HANDLE - DOOR PULL I/P Facia Contrast - Cirrus/Lunar, PVC Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076161	HANDLE - DOOR PULL	LR076161 HANDLE - DOOR PULL I/P Facia Contrast - Ebony Black, PVC Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR063707	HANDLE - DOOR PULL	LR063707 HANDLE - DOOR PULL I/P Facia Contrast - Ebony/Ivory, Windsor Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076163	HANDLE - DOOR PULL	LR076163 HANDLE - DOOR PULL Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, Windsor Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076164	HANDLE - DOOR PULL	LR076164 HANDLE - DOOR PULL I/P Facia Contrast - Lunar/Glacia, Windsor Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076166	HANDLE - DOOR PULL	LR076166 HANDLE - DOOR PULL I/P Facia Contrast - Ebony Black, Tan, Windsor Door Trim Panel / LH / From: GT000001	-	1	Enquire
<045B14	LR076165	HANDLE - DOOR PULL	LR076165 HANDLE - DOOR PULL I/P Facia Cntr-Ebony Black/Almond, Velour Trim / LH / From: GT000001	-	1	Enquire
<045B14	LR076156	HANDLE - DOOR PULL	LR076156 HANDLE - DOOR PULL I/P Facia Cntr-Ebony Black/Almond, Velour Trim / RH / From: GT000001	-	1	Enquire
<111C92A	LR075871	COVER - DOOR SWITCH	LR075871 COVER - DOOR SWITCH Dual Power Heated Exterior Mirrors / For Drivers Side / From: GT000001	-	1	Enquire
<111C92A	LR075870	COVER - DOOR SWITCH	LR075870 COVER - DOOR SWITCH Dual Power Heated Fold Back Mirror / For Drivers Side / From: GT000001	-	1	Enquire
<111C92B	LR063714	COVER - DOOR SWITCH	LR063714 COVER - DOOR SWITCH For Passengers Side / From: GT000001	-	2	Enquire
<224A34	LR076647	COVER - DOOR INNER PANEL	LR076647 COVER - DOOR INNER PANEL PVC/Painted Door Trim Panel / RH / From: GT000001	-	1	Enquire
<224A34	LR076648	COVER - DOOR INNER PANEL	LR076648 COVER - DOOR INNER PANEL PVC Door Trim Panel / RH / From: GT000001	-	1	Enquire
<224A34	LR076649	COVER - DOOR INNER PANEL	LR076649 COVER - DOOR INNER PANEL PVC/Painted Door Trim Panel / LH / From: GT000001	-	1	Enquire
<224A34	LR076651	COVER - DOOR INNER PANEL	LR076651 COVER - DOOR INNER PANEL PVC Door Trim Panel / LH / From: GT000001	-	1	Enquire
<04196	LR063729	COVER - DOOR TRIM	LR063729 COVER - DOOR TRIM I/P Facia Contrast - Lunar/Glacia / RH / From: GT000001	-	1	Enquire
<04196	LR063731	COVER - DOOR TRIM	LR063731 COVER - DOOR TRIM I/P Facia Contrast - Ebony/Cirrus / RH / From: GT000001	-	1	Enquire
<04196	LR063732	COVER - DOOR TRIM	LR063732 COVER - DOOR TRIM I/P Facia Contrast - Ebony/Ivory / RH / From: GT000001	-	1	Enquire
<04196	LR063733	COVER - DOOR TRIM	LR063733 COVER - DOOR TRIM I/P Facia Contrast - Ebony/Lunar / RH / From: GT000001	-	1	Enquire
<04196	LR063734	COVER - DOOR TRIM	LR063734 COVER - DOOR TRIM I/P Facia Cntr-Ebony Black/Almond / RH / From: GT000001	-	1	Enquire
<04196	LR063735	COVER - DOOR TRIM	LR063735 COVER - DOOR TRIM I/P Facia Contrast - Lunar/Glacia / LH / From: GT000001	-	1	Enquire
<04196	LR063736	COVER - DOOR TRIM	LR063736 COVER - DOOR TRIM I/P Facia Contrast - Ebony/Cirrus / LH / From: GT000001	-	1	Enquire
<04196	LR063737	COVER - DOOR TRIM	LR063737 COVER - DOOR TRIM I/P Facia Contrast - Ebony/Ivory / LH / From: GT000001	-	1	Enquire
<04196	LR063738	COVER - DOOR TRIM	LR063738 COVER - DOOR TRIM I/P Facia Contrast - Ebony/Lunar / LH / From: GT000001	-	1	Enquire
<04196	LR063739	COVER - DOOR TRIM	LR063739 COVER - DOOR TRIM I/P Facia Cntr-Ebony Black/Almond / LH / From: GT000001	-	1	Enquire
<22600	LR059559	HANDLE - DOOR - INNER	LR059559 HANDLE - DOOR - INNER RH / From: GT000001	-	2	Enquire
<22600	LR059560	HANDLE - DOOR - INNER	LR059560 HANDLE - DOOR - INNER LH / From: GT000001	-	2	Enquire
HC1	LR001790	CLIP	LR001790 CLIP Support / From: GT000001	-	10	Enquire
HC2	LR013135	CLIP - TRIM	LR013135 CLIP - TRIM 8.5 X 0.8 - 2.2, Front / Rear / From: GT000001	-	20	Enquire
HC3	LR044885	CLIP	LR044885 CLIP Clip Lantern 8.2 X 1.2 + 2.5 Plastic / From: GT000001	-	2	Enquire
HC4	LR077426	CLIP	LR077426 CLIP Support / From: GT000001	-	2	Enquire
HP1	LR068825	PLUG - BLANKING	LR068825 PLUG - BLANKING Manual Front Seat Adj Driver & Pass / RH/LH / From: GT000001	-	2	Enquire
HS1	LR003493	SCREW	LR003493 SCREW 4.2 x 22MM / From: GT000001	-	2	Enquire
48844	LR073072	GRILLE - SPEAKER	LR073072 GRILLE - SPEAKER Midline Sound System / RH / From: GT000001 / To: GT999999	-	1	Enquire
48844	LR073073	GRILLE - SPEAKER	LR073073 GRILLE - SPEAKER Premium Audio 1280 W / RH / From: GT000001	-	1	Enquire
48844	LR073074	GRILLE - SPEAKER	LR073074 GRILLE - SPEAKER Midline Sound System / LH / From: GT000001 / To: GT999999	-	1	Enquire
48844	LR073075	GRILLE - SPEAKER	LR073075 GRILLE - SPEAKER Premium Audio 1280 W / LH / From: GT000001	-	1	Enquire
48844	LR094054	GRILLE - SPEAKER	LR094054 GRILLE - SPEAKER Midline Sound System / RH, Meridian / From: HT000001	-	1	Enquire
48844	LR094055	GRILLE - SPEAKER	LR094055 GRILLE - SPEAKER Midline Sound System / LH, Meridian / From: HT000001	-	1	Enquire
48844	LR073074	GRILLE - SPEAKER	LR073074 GRILLE - SPEAKER Standard Audio (Base) / LH / From: HT000001	-	1	Enquire
48844	LR073072	GRILLE - SPEAKER	LR073072 GRILLE - SPEAKER Standard Audio (Base) / RH / From: HT000001	-	1	Enquire
