Fuel Injectors And Pipes (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Fuel Injectors And Pipes (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12)

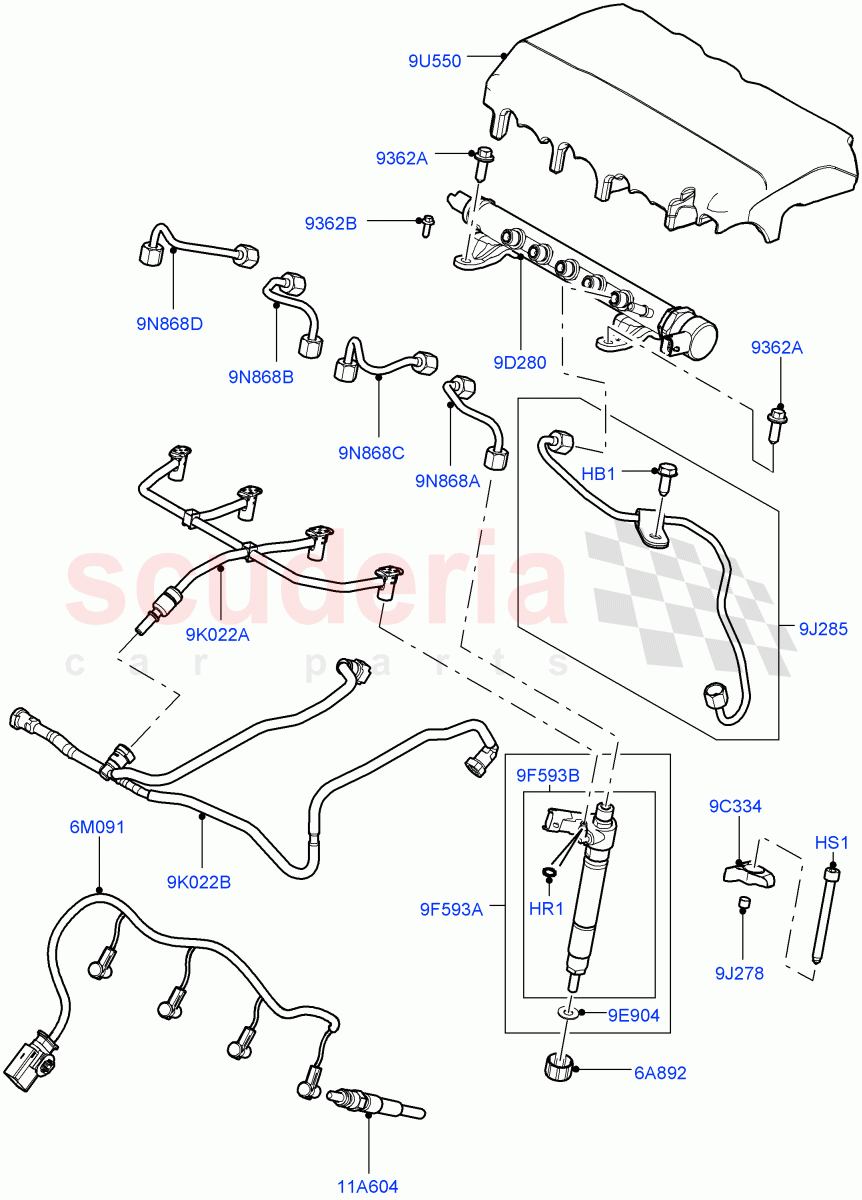

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000296	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054612	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001323	SCREW - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001297	RETAINER - INJECTION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001303	WIRE - GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002857	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001331	CLAMP - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022334	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032818	WASHER - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002968	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009014	TUBE - FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038763	INSULATOR - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022300	GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056366	INJECTOR - FUEL	Enquire	To Order
	LR056367	INJECTOR - FUEL	Enquire	To Order
	LR065508	INJECTOR - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051528	TUBE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022350	TUBE - INJECTION PUMP LEAK-OFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012751	PIPE - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012752	PIPE - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012753	PIPE - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012754	PIPE - FUEL INJECTION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000296	BOLT	LR000296 BOLT M6 x 30MM	-	1	Enquire
HR1	LR054612	O-RING	LR054612 O-RING Lower, O-Ring Seal For Fuel Return Tube	-	4	Enquire
HS1	LR001323	SCREW - SPECIAL	LR001323 SCREW - SPECIAL M8 X 82MM	-	4	Enquire
6A892	LR001297	RETAINER - INJECTION VALVE	LR001297 RETAINER - INJECTION VALVE	-	4	Enquire
6M091	LR001303	WIRE - GLOW PLUG	LR001303 WIRE - GLOW PLUG	-	1	Enquire
9C334	LR001331	CLAMP - FUEL INJECTION	LR001331 CLAMP - FUEL INJECTION	-	4	Enquire
9D280	LR022334	MANIFOLD - FUEL SUPPLY	LR022334 MANIFOLD - FUEL SUPPLY	-	1	Enquire
9E904	LR032818	WASHER - SEALING	LR032818 WASHER - SEALING To Fuel Injectors	-	4	Enquire
9F593A	LR056366	INJECTOR - FUEL	LR056366 INJECTOR - FUEL Engine Power Source - 190PS/420NM / New Part-Please Check For Reman Version, With Washer	-	4	Enquire
9F593A	LR056367	INJECTOR - FUEL	LR056367 INJECTOR - FUEL Engine Power Source - 150PS/380NM / With Washer	-	4	Enquire
9F593A	LR065508	INJECTOR - FUEL	LR065508 INJECTOR - FUEL Engine Power Source - 190PS/420NM / For UK and ROW markets except Russia, China, Brazil, Remanufactured Part, With Washer	-	4	Enquire
9J278	LR002968	PIN - RETAINING	LR002968 PIN - RETAINING Pin	-	4	Enquire
9J285	LR009014	TUBE - FUEL PUMP	LR009014 TUBE - FUEL PUMP	-	1	Enquire
9K022A	LR051528	TUBE - FUEL RETURN	LR051528 TUBE - FUEL RETURN Return	-	1	Enquire
9K022B	LR022350	TUBE - INJECTION PUMP LEAK-OFF	LR022350 TUBE - INJECTION PUMP LEAK-OFF Leak Off	-	1	Enquire
9N868A	LR012751	PIPE - FUEL INJECTION	LR012751 PIPE - FUEL INJECTION Cylinder No.1	-	1	Enquire
9N868B	LR012752	PIPE - FUEL INJECTION	LR012752 PIPE - FUEL INJECTION Cylinder No.2	-	1	Enquire
9N868C	LR012753	PIPE - FUEL INJECTION	LR012753 PIPE - FUEL INJECTION Cylinder No.3	-	1	Enquire
9N868D	LR012754	PIPE - FUEL INJECTION	LR012754 PIPE - FUEL INJECTION Cylinder No.4	-	1	Enquire
9U550	LR038763	INSULATOR - FUEL SUPPLY	LR038763 INSULATOR - FUEL SUPPLY	-	1	Enquire
11A604	LR022300	GLOW PLUG	LR022300 GLOW PLUG	-	4	Enquire
9362A	LR002857	BOLT	LR002857 BOLT M8 X 30MM	-	2	Enquire
