Fuel Filter (2.2L Cr Di 16V Diesel, 2.2L Dohc Efi Tc Dw12)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Fuel Filter (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4469260 BOLT $3.38 To Order
Photo Part No Description Price (each) Stock
LR002859 BOLT - SPECIAL $7.82 To Order
Photo Part No Description Price (each) Stock
LR002861 BOLT - SPECIAL $8.23 To Order
Photo Part No Description Price (each) Stock
LR002845 STUD $4.84 To Order
Photo Part No Description Price (each) Stock
LR002992 STUD $3.90 To Order
Photo Part No Description Price (each) Stock
LR024832 CLIP $1.00 To Order
Photo Part No Description Price (each) Stock
LR001122 STUD $7.62 To Order
Photo Part No Description Price (each) Stock
LR008986 NUT $4.13 To Order
Photo Part No Description Price (each) Stock
LR001313 FILTER - FUEL $65.17 IN STOCK
Photo Part No Description Price (each) Stock
LR001205 SHIELD - ALTERNATOR SPLASH $12.87 To Order
Photo Part No Description Price (each) Stock
LR001314 BRACKET - FUEL FILTER $55.57 To Order
Photo Part No Description Price (each) Stock
LR006662 SHIELD - FUEL FILTER $170.95 To Order
Photo Part No Description Price (each) Stock
LR033976 SHIELD - FUEL FILTER $50.68 To Order
Photo Part No Description Price (each) Stock
LR021621 SHIELD - FUEL FILTER $37.29 To Order
Photo Part No Description Price (each) Stock
LR002843 CLIP $3.30 To Order
Photo Part No Description Price (each) Stock
LR029269 SENSOR $103.02 To Order
Photo Part No Description Price (each) Stock
LR022350 TUBE - INJECTION PUMP LEAK-OFF $85.00 To Order
Photo Part No Description Price (each) Stock
LR023064 TUBE - FUEL FILTER TO FUEL PUMP $63.01 To Order
Photo Part No Description Price (each) Stock
LR024609 TUBE - FUEL $163.09 To Order
View All

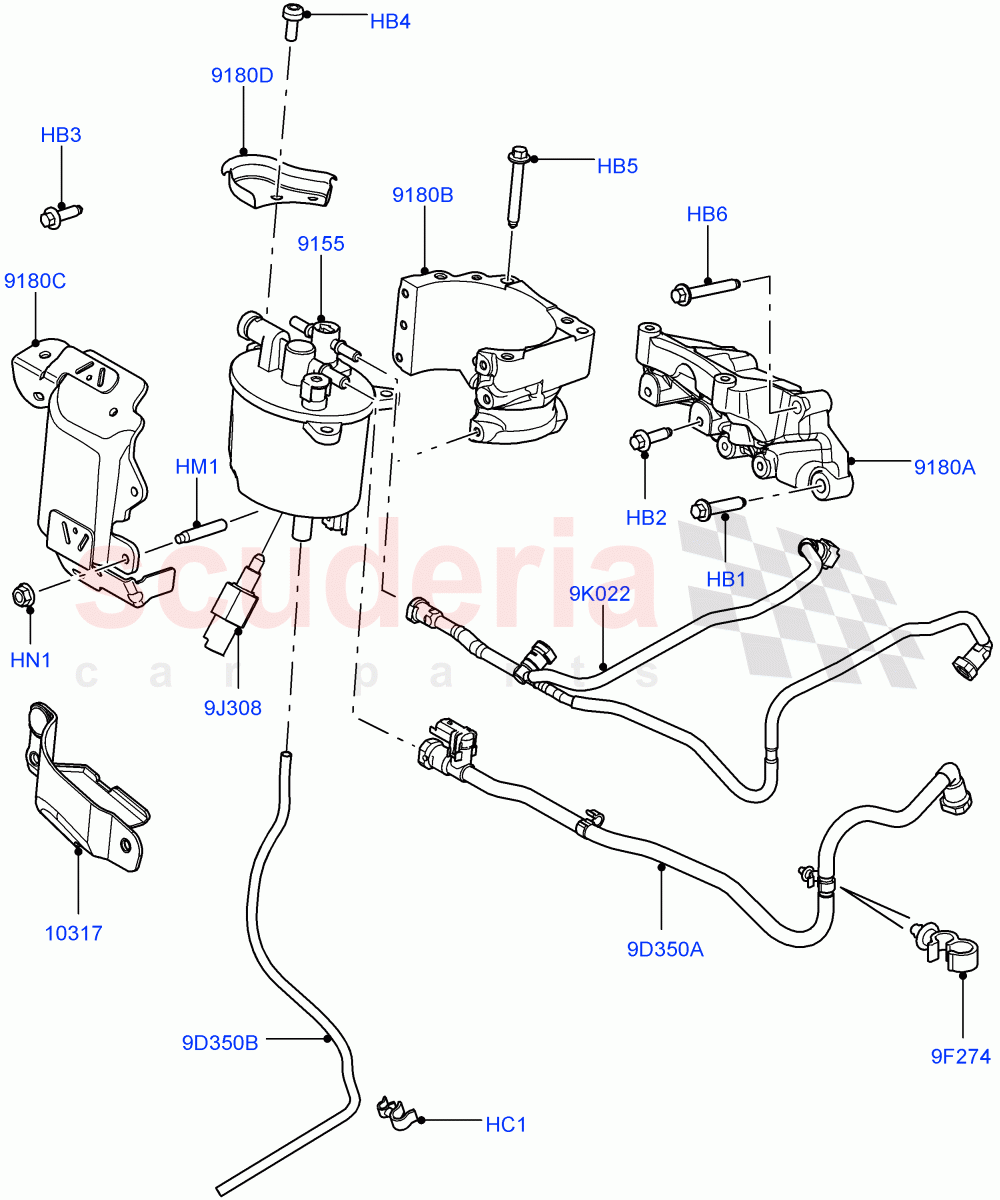

Fuel Filter (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4469260
BOLT
M8 X 35MM 		$3.38 2
HB2 LR002859
BOLT - SPECIAL
Hex Head, M8 x 55MM 		$7.82 2
HB4 LR002861
BOLT - SPECIAL
M8 X 20MM 		$8.23 3
HB5 LR002845
STUD
M8 x 60MM 		$4.84 2
HB6 LR002992
STUD
M8 X 30MM 		$3.90 2
HC1 LR024832
CLIP
6-6.5 + 9.5-10.5 Pipe Swivel Plastic 		$1.00 1
HM1 LR001122
STUD
M6 x 25MM, Stud 		$7.62 4
HN1 LR008986
NUT
M6 		$4.13 4
9D350A LR023064
TUBE - FUEL FILTER TO FUEL PUMP
Includes Fuel Temperature Sensor 		$63.01 1
9D350B LR024609
TUBE - FUEL
Drain 		$163.09 1
9F274 LR002843
CLIP 		$3.30 2
9J308 LR029269
SENSOR
Euro Stage 4 Emissions / Sensor, Water In Fuel 		$103.02 1
9K022 LR022350
TUBE - INJECTION PUMP LEAK-OFF
Leak Off 		$85.00 1
9155 LR001313
FILTER - FUEL
IN STOCK 		$65.17 1
9180A LR001314
BRACKET - FUEL FILTER 		$55.57 1
9180B LR006662
SHIELD - FUEL FILTER
Shield Assy 		$170.95 1
9180C LR033976
SHIELD - FUEL FILTER
Shield Assy 		$50.68 1
9180D LR021621
SHIELD - FUEL FILTER 		$37.29 1
10317 LR001205
SHIELD - ALTERNATOR SPLASH 		$12.87 1
