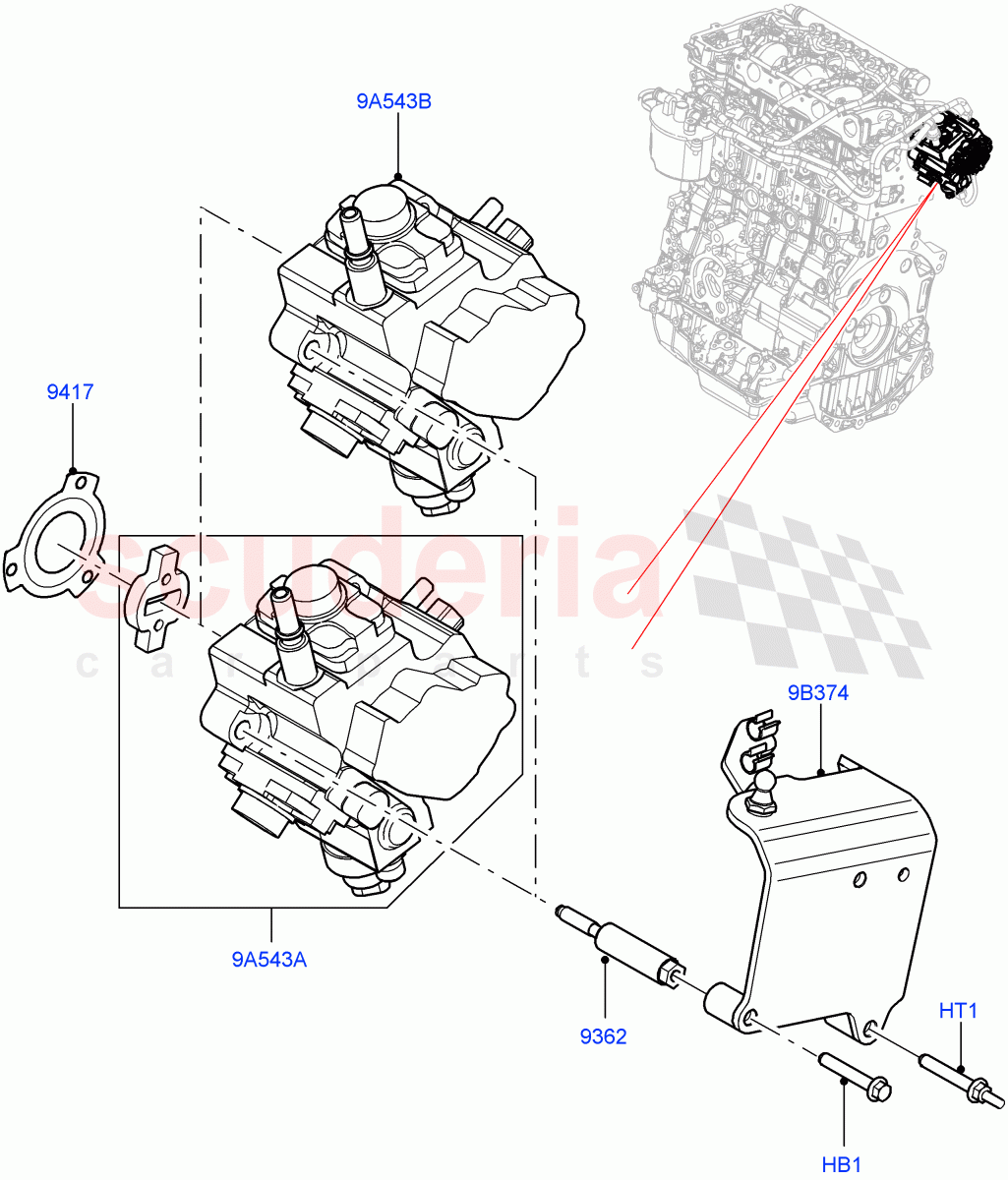

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR043999	BOLT - HEX.HEAD	$4.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039641	STUD	$4.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002830	BOLT	$83.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009028	GASKET - FUEL PUMP COVER	$49.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022447	COVER - FUEL PUMP	$41.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047217	PUMP - FUEL INJECTION	$2,050.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093850	PUMP - FUEL INJECTION	$999.61	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR043999	BOLT - HEX.HEAD	LR043999 BOLT - HEX.HEAD M6 X 40MM	$4.46	3
HT1	LR039641	STUD	LR039641 STUD M6 X 14 + M6 X 40	$4.08	1
9A543A	LR047217	PUMP - FUEL INJECTION	LR047217 PUMP - FUEL INJECTION New Part-Please Check For Reman Version, Supplied With Fuel Pump Drive	$2,050.54	1
9A543B	LR093850	PUMP - FUEL INJECTION	LR093850 PUMP - FUEL INJECTION For UK and ROW markets except Russia, China, Brazil, Remanufactured Part, Supplied Without Fuel Pump Drive	$999.61	1
9B374	LR022447	COVER - FUEL PUMP	LR022447 COVER - FUEL PUMP	$41.06	1
9362	LR002830	BOLT	LR002830 BOLT	$83.07	3
9417	LR009028	GASKET - FUEL PUMP COVER	LR009028 GASKET - FUEL PUMP COVER	$49.52	1
