Insulators - Front (Engine Compartment) (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Insulators - Front (Engine Compartment) (Halewood (UK)) ((V) TOKH999999)

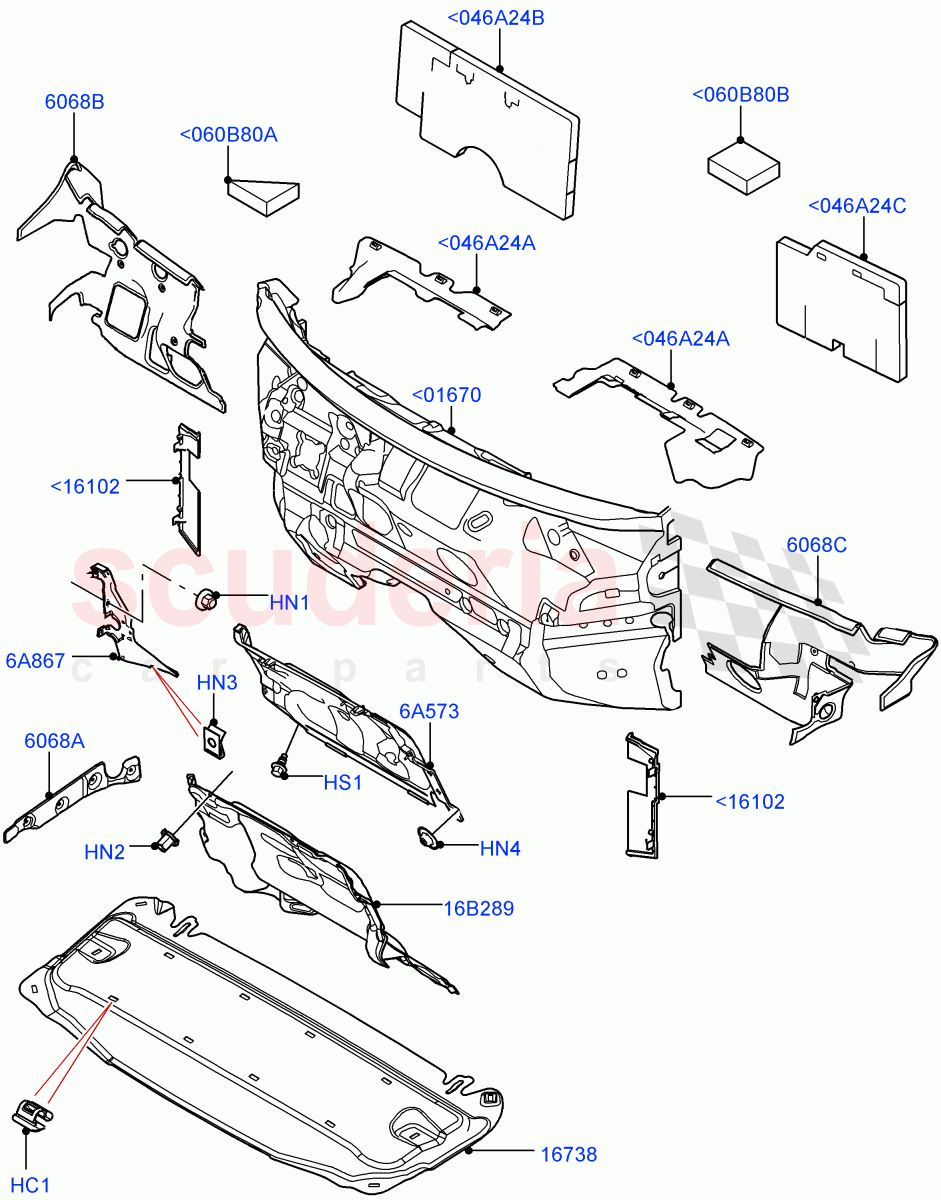

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR027039	CLIP	Enquire	To Order
	LR027039	CLIP	Enquire	To Order
	LR106753	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000808	NUT - ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500760	NUT	Enquire	To Order
	LR088583	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003643	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059778	INSULATOR - HOOD	Enquire	To Order
	LR110253	INSULATOR - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048042	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094355	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order
	LR094356	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094357	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order
	LR094358	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027026	COVER - ENGINE COMPARTMENT	Enquire	To Order
	LR073274	INSULATOR - HOOD	Enquire	To Order
	LR073276	INSULATOR - HOOD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027167	BRACKET - ENGINE COVER	Enquire	To Order
	LR073277	BRACKET - ENGINE COVER	Enquire	To Order
	LR094269	BRACKET - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059527	INSULATOR - DASH PANEL	Enquire	To Order
	LR059528	INSULATOR - DASH PANEL	Enquire	To Order
	LR077003	INSULATOR - DASH PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR068871	INSULATOR - SOUND - BODY	Enquire	To Order
	LR068870	INSULATOR - SOUND - BODY	Enquire	To Order
	LR075309	INSULATOR - SOUND - BODY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027033	INSULATOR - DASH PANEL	Enquire	To Order
	LR047936	INSULATOR - DASH PANEL	Enquire	To Order
	LR069710	INSULATOR - DASH PANEL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR059529	INSULATOR - INSTRUMENT PANEL	Enquire	To Order
	LR059530	INSULATOR - INSTRUMENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093846	INSULATOR - AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093847	INSULATOR - AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065318	INSULATOR - "A" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065317	INSULATOR - "A" PILLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<046A24A	LR059529	INSULATOR - INSTRUMENT PANEL	LR059529 INSULATOR - INSTRUMENT PANEL LHD / LH / To: KH999999	-	1	Enquire
<046A24A	LR059530	INSULATOR - INSTRUMENT PANEL	LR059530 INSULATOR - INSTRUMENT PANEL RHD / RH / To: KH999999	-	1	Enquire
<046A24B	LR093846	INSULATOR - AIR VENT	LR093846 INSULATOR - AIR VENT For Drivers Side / From: JH000001 / To: KH999999	-	1	Enquire
<046A24C	LR093847	INSULATOR - AIR VENT	LR093847 INSULATOR - AIR VENT For Passengers Side / From: JH000001 / To: KH999999	-	1	Enquire
<060B80A	LR065318	INSULATOR - "A" PILLAR	LR065318 INSULATOR - "A" PILLAR RH	-	1	Enquire
<060B80B	LR065317	INSULATOR - "A" PILLAR	LR065317 INSULATOR - "A" PILLAR Center And Lower	-	1	Enquire
<01670	LR059527	INSULATOR - DASH PANEL	LR059527 INSULATOR - DASH PANEL RHD / To: FH518161	-	1	Enquire
<01670	LR059528	INSULATOR - DASH PANEL	LR059528 INSULATOR - DASH PANEL LHD / To: FH518161	-	1	Enquire
<01670	LR077003	INSULATOR - DASH PANEL	LR077003 INSULATOR - DASH PANEL RHD / From: FH518162 / To: KH999999	-	1	Enquire
<01670	LR077004	INSULATOR - DASH PANEL	LR077004 INSULATOR - DASH PANEL LHD / From: FH518162 / To: KH999999	-	1	Enquire
<16102	LR068871	INSULATOR - SOUND - BODY	LR068871 INSULATOR - SOUND - BODY LH / To: FH520231	-	1	Enquire
<16102	LR068870	INSULATOR - SOUND - BODY	LR068870 INSULATOR - SOUND - BODY RH / To: FH521703	-	1	Enquire
<16102	LR075309	INSULATOR - SOUND - BODY	LR075309 INSULATOR - SOUND - BODY LH / From: FH520232	-	1	Enquire
<16102	LR075308	INSULATOR - SOUND - BODY	LR075308 INSULATOR - SOUND - BODY RH / From: FH521704	-	1	Enquire
HC1	LR027039	CLIP	LR027039 CLIP Bonnet Liner Fixing, Clip 21 X 13 / To: HH999999	-	14	Enquire
HC1	LR027039	CLIP	LR027039 CLIP Clip 21 X 13, Insulator, Knee Protection	-	6	Enquire
HC1	LR106753	CLIP	LR106753 CLIP Bonnet Liner Fixing, Clip 21 X 13 / From: JH000001	-	14	Enquire
HN1	LR000808	NUT - ADJUSTING	LR000808 NUT - ADJUSTING 4.25MM, Nylon, Push On	-	3	Enquire
HN2	RYH500760	NUT	RYH500760 NUT M5, Plastic / To: GH625796	-	4	Enquire
HN2	LR088583	NUT	LR088583 NUT M5, Plastic / From: GH625797	-	4	Enquire
HN3	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring	-	1	Enquire
HN4	LR003643	NUT - SPECIAL	LR003643 NUT - SPECIAL 2.0L I4 High DOHC AJ200 Petrol / M5 / From: JH000001	-	2	Enquire
HS1	LR007651	SCREW	LR007651 SCREW M6 X 10MM	-	7	Enquire
6A573	LR027026	COVER - ENGINE COMPARTMENT	LR027026 COVER - ENGINE COMPARTMENT To: FH999999	-	1	Enquire
6A573	LR073274	INSULATOR - HOOD	LR073274 INSULATOR - HOOD 2.0L I4 DSL MID DOHC AJ200, Proconve L6 Emissions / From: GH000001 / To: GH999999	-	1	Enquire
6A573	LR073276	INSULATOR - HOOD	LR073276 INSULATOR - HOOD 2.2L CR DI 16V Diesel / From: GH000001	-	1	Enquire
6A573	LR085556	INSULATOR - HOOD	LR085556 INSULATOR - HOOD 2.0L I4 DSL MID DOHC AJ200 / From: HH000001	-	1	Enquire
6A573	LR085556	INSULATOR - HOOD	LR085556 INSULATOR - HOOD 2.0L I4 High DOHC AJ200 Petrol / From: JH000001	-	1	Enquire
6A867	LR027167	BRACKET - ENGINE COVER	LR027167 BRACKET - ENGINE COVER To: FH999999	-	1	Enquire
6A867	LR073277	BRACKET - ENGINE COVER	LR073277 BRACKET - ENGINE COVER From: GH000001 / To: HH999999	-	1	Enquire
6A867	LR094269	BRACKET - ENGINE COVER	LR094269 BRACKET - ENGINE COVER From: JH000001	-	1	Enquire
16B289	LR027033	INSULATOR - DASH PANEL	LR027033 INSULATOR - DASH PANEL 2.2L CR DI 16V Diesel / Bulkhead, Centre / To: FH547798	-	1	Enquire
16B289	LR047936	INSULATOR - DASH PANEL	LR047936 INSULATOR - DASH PANEL 2.0L 16V TIVCT T/C 240PS Petrol / Bulkhead, Centre / To: FH547798	-	1	Enquire
16B289	LR069710	INSULATOR - DASH PANEL	LR069710 INSULATOR - DASH PANEL 2.0L I4 DSL HIGH DOHC AJ200 / Bulkhead, Centre / From: GH000001 / To: KH793168	-	1	Enquire
16B289	LR077451	INSULATOR - DASH PANEL	LR077451 INSULATOR - DASH PANEL 2.2L CR DI 16V Diesel / Bulkhead, Centre / From: FH547799	-	1	Enquire
16B289	LR077458	INSULATOR - DASH PANEL	LR077458 INSULATOR - DASH PANEL 2.0L 16V TIVCT T/C Gen2 Petrol / Bulkhead, Centre / From: FH547799	-	1	Enquire
16B289	LR094266	INSULATOR - DASH PANEL	LR094266 INSULATOR - DASH PANEL 2.0L I4 Mid DOHC AJ200 Petrol / Bulkhead, Centre / From: HH000001 / To: HH999999	-	1	Enquire
16B289	LR101952	INSULATOR - DASH PANEL	LR101952 INSULATOR - DASH PANEL 2.0L I4 High DOHC AJ200 Petrol / Bulkhead, Centre / From: JH000001	-	1	Enquire
16B289	LR118375	INSULATOR - DASH PANEL	LR118375 INSULATOR - DASH PANEL 2.0L I4 DSL MID DOHC AJ200 / Bulkhead, Centre / From: KH793169	-	1	Enquire
6068A	LR048042	INSULATOR - ENGINE COMPARTMENT	LR048042 INSULATOR - ENGINE COMPARTMENT 2.2L CR DI 16V Diesel / From: FH504106 / To: GH553116	-	1	Enquire
6068B	LR094355	INSULATOR - ENGINE COMPARTMENT	LR094355 INSULATOR - ENGINE COMPARTMENT RHD / RH / From: JH000001	-	1	Enquire
6068B	LR094356	INSULATOR - ENGINE COMPARTMENT	LR094356 INSULATOR - ENGINE COMPARTMENT LHD / RH / From: JH000001	-	1	Enquire
6068C	LR094357	INSULATOR - ENGINE COMPARTMENT	LR094357 INSULATOR - ENGINE COMPARTMENT RHD / LH / From: JH000001	-	1	Enquire
6068C	LR094358	INSULATOR - ENGINE COMPARTMENT	LR094358 INSULATOR - ENGINE COMPARTMENT LHD / LH / From: JH000001	-	1	Enquire
16738	LR059778	INSULATOR - HOOD	LR059778 INSULATOR - HOOD To: KH789628	-	1	Enquire
16738	LR110253	INSULATOR - HOOD	LR110253 INSULATOR - HOOD From: KH789629 / To: KH999999	-	1	Enquire
