Luggage Compartment Door (Door And Fixings) (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Luggage Compartment Door (Door And Fixings) (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037087 BOLT AND WASHER - HEX.HEAD $1.92 To Order
Photo Part No Description Price (each) Stock
LR002225 BOLT AND WASHER - HEX.HEAD $4.08 To Order
Photo Part No Description Price (each) Stock
LR012710 PLUG - BODY SEALING $1.26 To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP $2.16 To Order
Photo Part No Description Price (each) Stock
SGG000020 GROMMET - TRIM PANEL $1.00 To Order
Photo Part No Description Price (each) Stock
LR061391 TAILGATE - LESS HINGES $924.74 To Order
LR133105 TAILGATE - LESS HINGES $1,252.73 To Order
Photo Part No Description Price (each) Stock
LR088322 HINGE - TAILGATE $59.34 To Order
LR088323 HINGE - TAILGATE $57.32 To Order
Photo Part No Description Price (each) Stock
LR060855 BUMP STOP - TAILGATE $15.67 To Order
Photo Part No Description Price (each) Stock
LR065838 BRACKET - TAILGATE $31.48 To Order
LR065839 BRACKET - TAILGATE $29.84 To Order
Photo Part No Description Price (each) Stock
LR138284 STUD - BALL $6.20 To Order
Photo Part No Description Price (each) Stock
LR075419 STRUT - TAILGATE $411.19 To Order
LR075420 STRUT - TAILGATE $369.21 To Order
Photo Part No Description Price (each) Stock
LR058520 STRUT - TAILGATE $69.64 To Order
View All

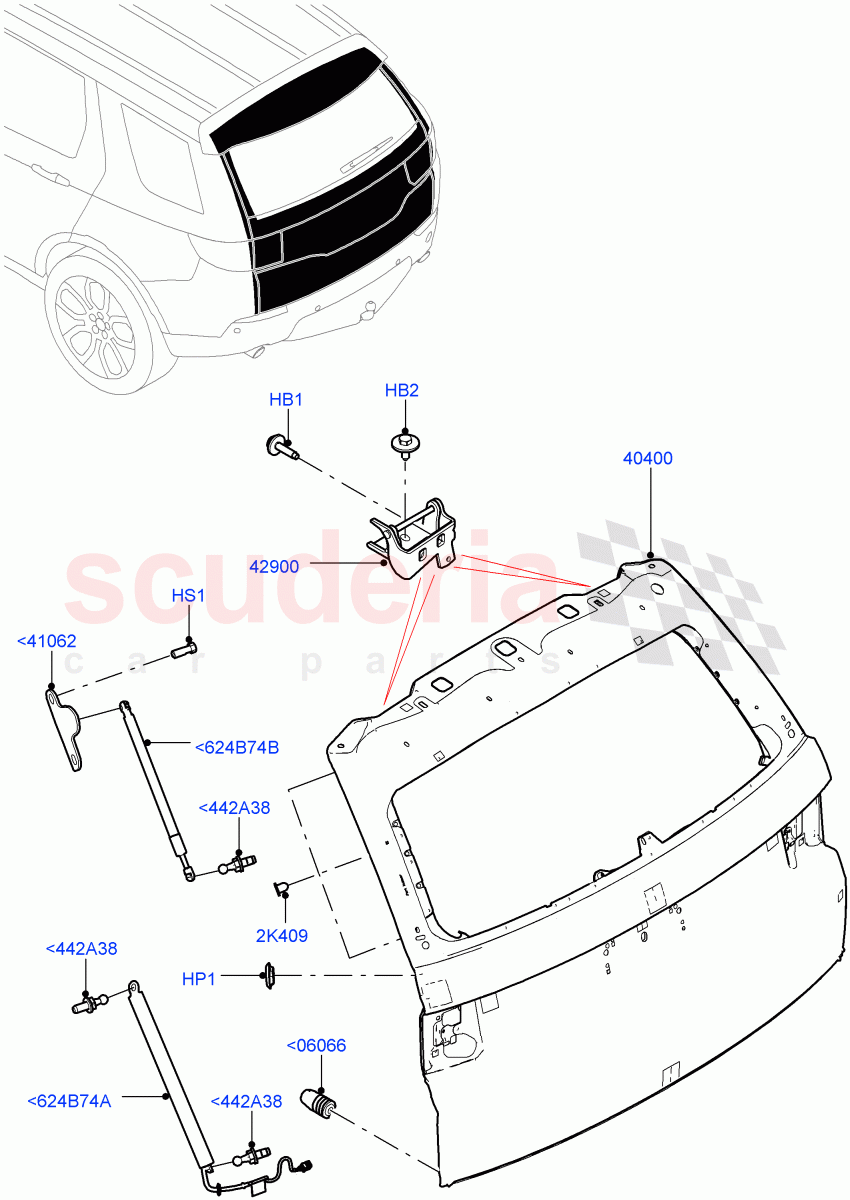

Luggage Compartment Door (Door And Fixings) (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<442A38 LR138284
STUD - BALL
With Conventional Tailgate / M8 x 19MM / From: GT000001 		$6.20 4
<624B74A LR075419
STRUT - TAILGATE
Tailgate - Hands Free / RH / From: GT000001 		$411.19 1
<624B74A LR075420
STRUT - TAILGATE
Tailgate - Hands Free / LH / From: GT000001 		$369.21 1
<624B74B LR058520
STRUT - TAILGATE
With Conventional Tailgate / RH/LH / From: GT000001 		$69.64 2
<06066 LR060855
BUMP STOP - TAILGATE
RH/LH / From: GT000001 		$15.67 2
<41062 LR065838
BRACKET - TAILGATE
With Conventional Tailgate / RH / From: GT000001 		$31.48 1
<41062 LR065839
BRACKET - TAILGATE
With Conventional Tailgate / LH / From: GT000001 		$29.84 1
HB1 LR037087
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 30MM / From: GT000001 		$1.92 4
HB2 LR002225
BOLT AND WASHER - HEX.HEAD
M8 X 21MM / From: GT000001 		$4.08 2
HP1 LR012710
PLUG - BODY SEALING 		$1.26 16
HS1 FS108186
SCREW - SOCKET HEAD CAP
With Conventional Tailgate / M8 x 18MM / From: GT000001 		$2.16 4
2K409 SGG000020
GROMMET - TRIM PANEL
With Conventional Tailgate / From: GT000001 		$1.00 2
40400 LR061391
TAILGATE - LESS HINGES
From: GT000001 / To: KT999999 		$924.74 1
40400 LR133105
TAILGATE - LESS HINGES
From: LT000001 		$1,252.73 1
42900 LR088322
HINGE - TAILGATE
RH / From: GT000001 		$59.34 1
42900 LR088323
HINGE - TAILGATE
LH / From: GT000001 		$57.32 1
