Rear Doors, Hinges & Weatherstrips (Finishers) (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Rear Doors, Hinges & Weatherstrips (Finishers) (Changsu (China)) ((V) FROMFG000001)

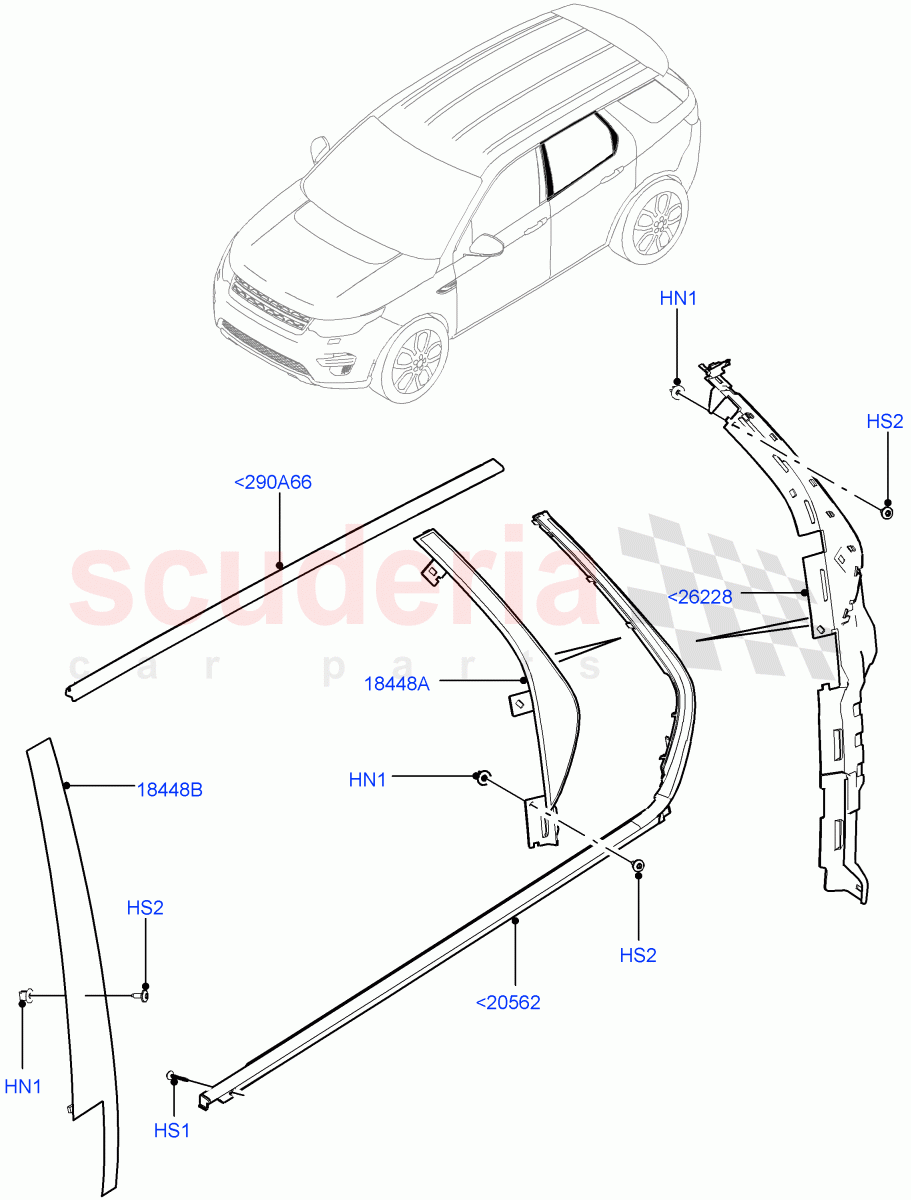

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR128940	NUT	Enquire	To Order
	LR128940	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026429	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010155	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076576	WEATHERSTRIP - DOOR BELT	Enquire	To Order
	LR076577	WEATHERSTRIP - DOOR BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074802	GUIDE - DOOR GLASS	Enquire	To Order
	LR074803	GUIDE - DOOR GLASS	Enquire	To Order
	LR149372	GUIDE - DOOR GLASS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR058483	FINISHER - OUTER - PILLAR	Enquire	To Order
	LR058484	FINISHER - OUTER - PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058490	FINISHER - OUTER - PILLAR	Enquire	To Order
	LR058489	FINISHER - OUTER - PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR058485	MOULDING - DOOR TRIM	Enquire	To Order
	LR058486	MOULDING - DOOR TRIM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<290A66	LR058485	MOULDING - DOOR TRIM	LR058485 MOULDING - DOOR TRIM RH, Upper / From: FG000001	-	1	Enquire
<290A66	LR058486	MOULDING - DOOR TRIM	LR058486 MOULDING - DOOR TRIM LH, Upper / From: FG000001	-	1	Enquire
<20562	LR076576	WEATHERSTRIP - DOOR BELT	LR076576 WEATHERSTRIP - DOOR BELT RH, Outer / From: FG000001	-	1	Enquire
<20562	LR076577	WEATHERSTRIP - DOOR BELT	LR076577 WEATHERSTRIP - DOOR BELT LH, Outer / From: FG000001	-	1	Enquire
<26228	LR074802	GUIDE - DOOR GLASS	LR074802 GUIDE - DOOR GLASS RH / From: FG000001 / To: MG137388	-	1	Enquire
<26228	LR074803	GUIDE - DOOR GLASS	LR074803 GUIDE - DOOR GLASS LH / From: FG000001 / To: MG136825	-	1	Enquire
<26228	LR149372	GUIDE - DOOR GLASS	LR149372 GUIDE - DOOR GLASS LH / From: MG136826	-	1	Enquire
<26228	LR149371	GUIDE - DOOR GLASS	LR149371 GUIDE - DOOR GLASS RH / From: MG137389	-	1	Enquire
HN1	LR128940	NUT	LR128940 NUT 7.5 x 11.5MM / From: FG000001 / To: KG444443	-	8	Enquire
HN1	LR128940	NUT	LR128940 NUT 7.5 x 11.5MM / From: KG444443	-	14	Enquire
HS1	LR026429	SCREW	LR026429 SCREW M4 x 30MM / From: FG000001	-	2	Enquire
HS2	LR010155	SCREW	LR010155 SCREW M5 X 16MM, Torx, Woofer / From: FG000001	-	8	Enquire
18448A	LR058483	FINISHER - OUTER - PILLAR	LR058483 FINISHER - OUTER - PILLAR RH, Rear / From: FG000001	-	1	Enquire
18448A	LR058484	FINISHER - OUTER - PILLAR	LR058484 FINISHER - OUTER - PILLAR LH, Rear / From: FG000001	-	1	Enquire
18448B	LR058490	FINISHER - OUTER - PILLAR	LR058490 FINISHER - OUTER - PILLAR LH, Front / From: FG000001	-	1	Enquire
18448B	LR058489	FINISHER - OUTER - PILLAR	LR058489 FINISHER - OUTER - PILLAR RH, Front / From: FG000001	-	1	Enquire
