Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)

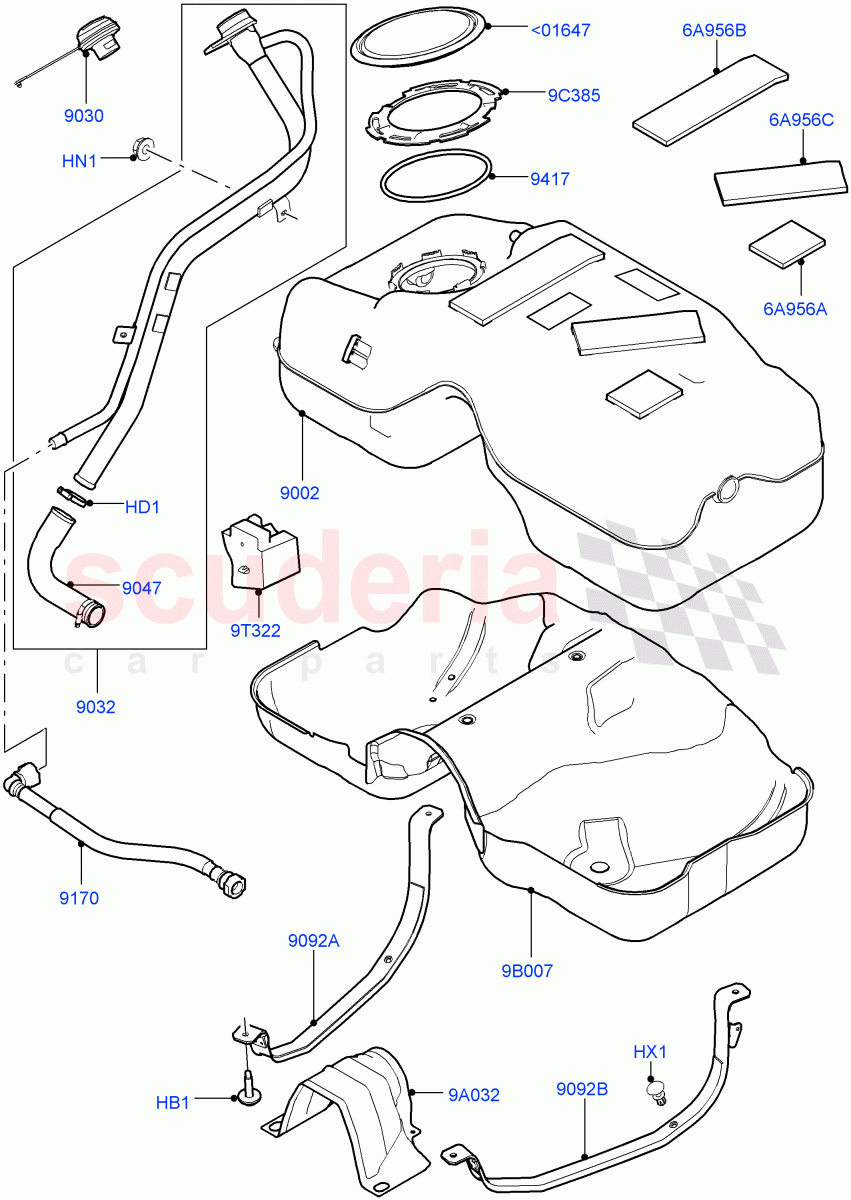

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501020	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500170	RETAINER - RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084558	TANK - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053665	CAP - FUEL TANK FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072674	PIPE - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061055	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060352	HOSE - VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060831	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063940	STRAP - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077096	HEAT SHIELD - PROPSHAFT BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076312	SHIELD - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038796	Ring - Retaining	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063975	MOULDING - FUEL TANK PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061062	PLUG - FLOOR PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060825	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060826	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01647	LR061062	PLUG - FLOOR PAN	LR061062 PLUG - FLOOR PAN Cover, Plug / From: GT000001	-	1	Enquire
HB1	RYG501020	BOLT	RYG501020 BOLT Fuel Tank Strap, M8 X 30MM / From: GT000001	-	4	Enquire
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9, ESCORT, Fuel Tank To Filler Pipe / From: GT000001	-	1	Enquire
HN1	FN106042	NUT	FN106042 NUT Hexagonal Head, M6 / From: GT000001	-	2	Enquire
HX1	RYQ500170	RETAINER - RIVET	RYQ500170 RETAINER - RIVET Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: GT000001	-	2	Enquire
6A956A	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING LH Front / From: GT000001	-	1	Enquire
6A956B	LR060825	FOAM PAD - ENERGY ABSORBING	LR060825 FOAM PAD - ENERGY ABSORBING From: GT000001	-	1	Enquire
6A956C	LR060826	FOAM PAD - ENERGY ABSORBING	LR060826 FOAM PAD - ENERGY ABSORBING From: GT000001	-	1	Enquire
9A032	LR077096	HEAT SHIELD - PROPSHAFT BEARING	LR077096 HEAT SHIELD - PROPSHAFT BEARING From: GT000001	-	1	Enquire
9B007	LR076312	SHIELD - FUEL TANK	LR076312 SHIELD - FUEL TANK Bottom, Fuel Tank / From: GT000001	-	1	Enquire
9C385	LR038796	Ring - Retaining	LR038796 Ring - Retaining From: GT000001	-	1	Enquire
9T322	LR063975	MOULDING - FUEL TANK PROTECTION	LR063975 MOULDING - FUEL TANK PROTECTION From: GT000001	-	1	Enquire
9002	LR084558	TANK - FUEL	LR084558 TANK - FUEL From: GT000001	-	1	Enquire
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER From: GT000001	-	1	Enquire
9032	LR072674	PIPE - FUEL FILLER	LR072674 PIPE - FUEL FILLER From: GT000001	-	1	Enquire
9047	LR061055	HOSE - FILLER PIPE	LR061055 HOSE - FILLER PIPE From: GT000001	-	1	Enquire
9092A	LR060831	STRAP - FUEL TANK	LR060831 STRAP - FUEL TANK RH / From: GT000001	-	1	Enquire
9092B	LR063940	STRAP - FUEL TANK	LR063940 STRAP - FUEL TANK LH / From: GT000001	-	1	Enquire
9170	LR060352	HOSE - VENT	LR060352 HOSE - VENT From: GT000001	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET O-Ring / From: GT000001	-	1	Enquire
