Name: Fuel Lines (Rear) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK), Fuel Tank Filler Neck - Unleaded)
Rating: 5.0 (1 reviews)

View All

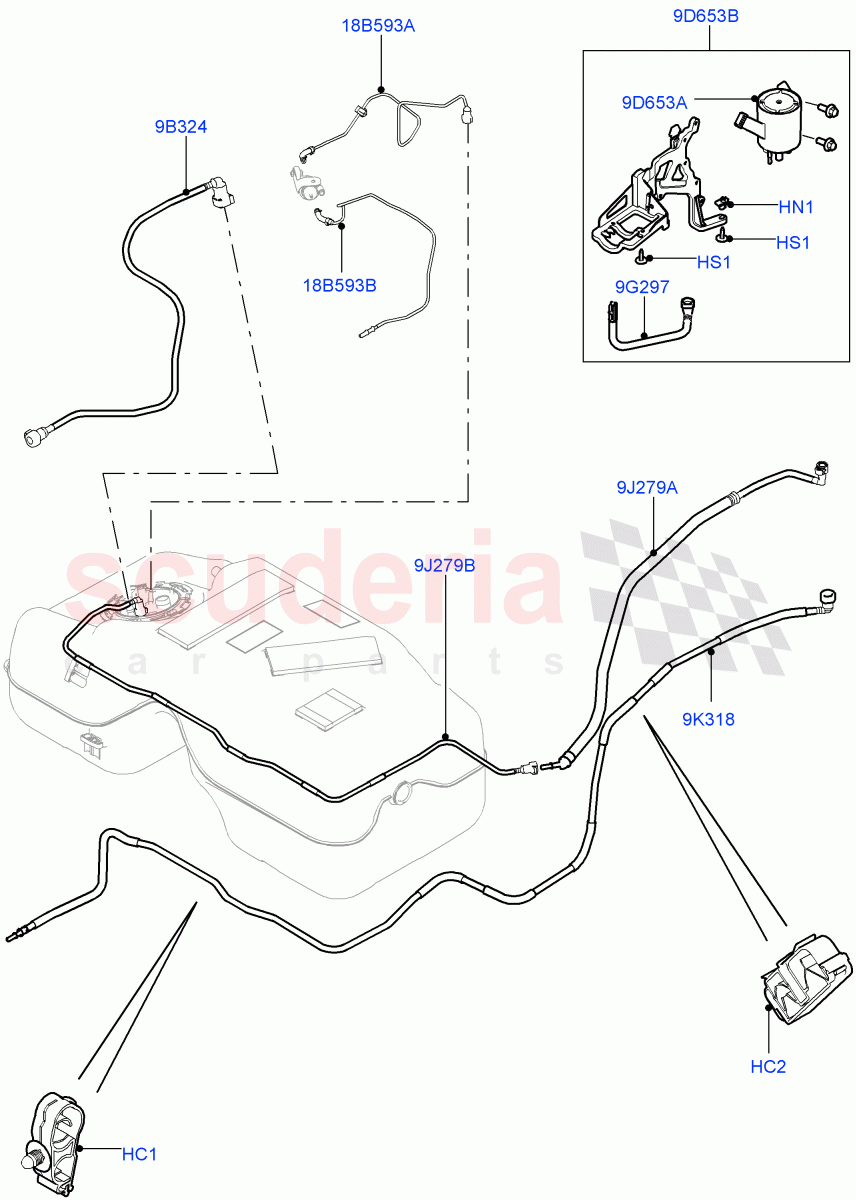

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SDG500030	SCREW	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060841	TUBE - FUEL FEED	$39.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027068	TUBE - FUEL VAPOUR	$39.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060357	TUBE - FUEL VAPOUR	$57.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003486	RESERVOIR - FUEL TANK VENT SYSTEM	$50.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027057	CANNISTER - FUEL VAPOUR STORE	$94.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060356	HOSE - FUEL VAPOUR	$42.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060353	TUBE - FUEL VAPOUR	$39.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060836	TUBE - FUEL SUPPLY	$41.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060837	TUBE - FUEL SUPPLY	$38.62	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3	$1.18	3
HC2	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Hose	$4.25	3
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 IN STOCK	$1.57	1
HS1	SDG500030	SCREW	SDG500030 SCREW M6 x 27MM, Screw And Washer	$1.11	2
9B324	LR060841	TUBE - FUEL FEED	LR060841 TUBE - FUEL FEED From Fuel Tank To Under Floor Pipes	$39.13	1
9D653A	LR003486	RESERVOIR - FUEL TANK VENT SYSTEM	LR003486 RESERVOIR - FUEL TANK VENT SYSTEM Charcoal Cannister	$50.66	1
9D653B	LR027057	CANNISTER - FUEL VAPOUR STORE	LR027057 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket	$94.67	1
9G297	LR027068	TUBE - FUEL VAPOUR	LR027068 TUBE - FUEL VAPOUR Charcoal Cannister	$39.91	1
9J279A	LR060356	HOSE - FUEL VAPOUR	LR060356 HOSE - FUEL VAPOUR Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister	$42.41	1
9J279B	LR060353	TUBE - FUEL VAPOUR	LR060353 TUBE - FUEL VAPOUR Purge Line From Fuel Tank To Charcoal Canister	$39.40	1
9K318	LR060357	TUBE - FUEL VAPOUR	LR060357 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet	$57.09	1
18B593A	LR060836	TUBE - FUEL SUPPLY	LR060836 TUBE - FUEL SUPPLY Fuel Fired Heater With Park Heat / Fuel Tank To Fuel Burning Heater, Pump To Heater	$41.45	1
18B593B	LR060837	TUBE - FUEL SUPPLY	LR060837 TUBE - FUEL SUPPLY Fuel Fired Heater With Park Heat / Fuel Tank To Fuel Burning Heater, Pump To Heater	$38.62	1

Fuel Lines (Rear) (2.0L 16V Tivct T/C 240Ps Petrol, Halewood (Uk), Fuel Tank Filler Neck - Unleaded)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]
