Fuel Lines (Rear) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK), Fuel Tank Filler Neck - DMTL, 2.0L 16V TIVCT T/C Gen2 Petrol) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Fuel Lines (Rear) (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK), Fuel Tank Filler Neck - DMTL,...

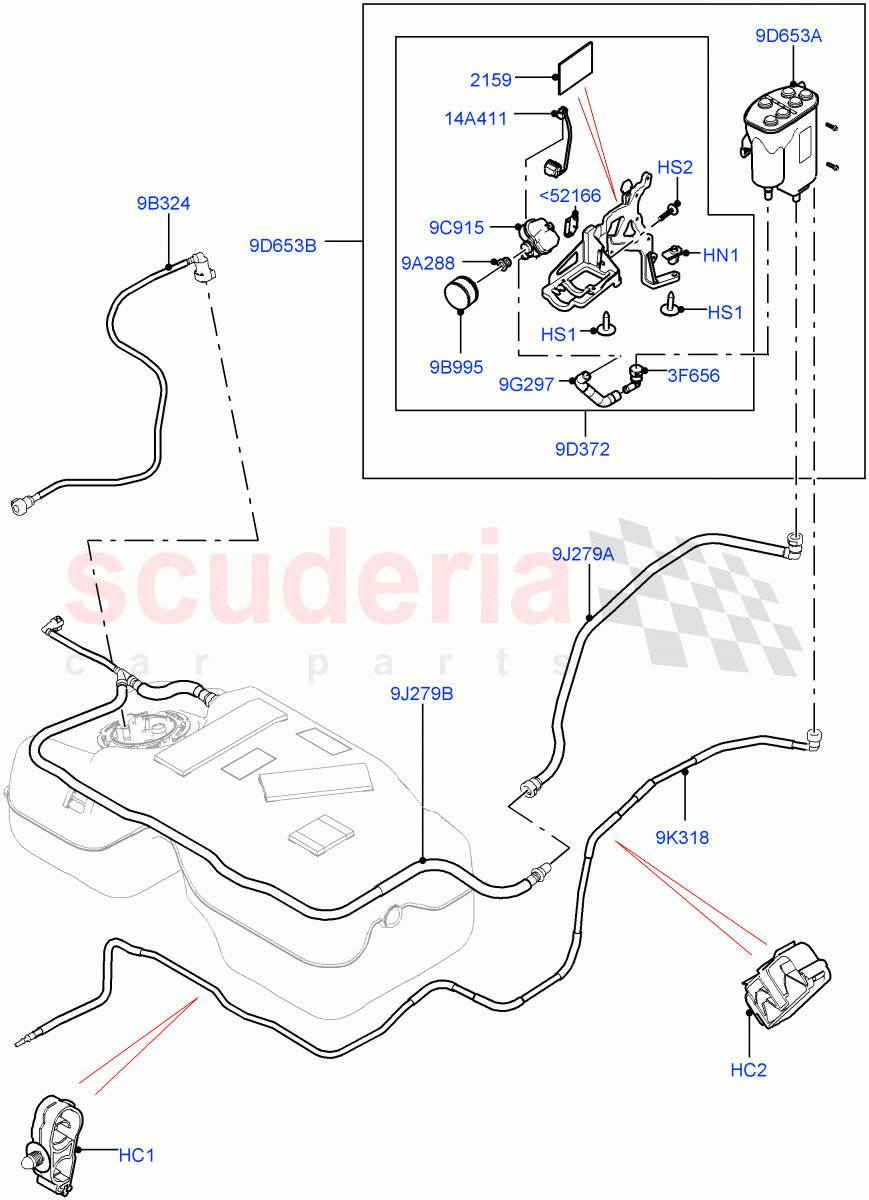

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDG500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155109	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048459	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155318	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003198	INSULATOR - CHARCOAL CANISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060841	TUBE - FUEL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027066	FILTER - FUEL	Enquire	To Order
	LR155104	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155122	HOSE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091260	FILTER - FUEL	Enquire	To Order
	LR155124	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060357	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155317	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027062	WIRE - JUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048421	CANNISTER - FUEL VAPOUR STORE	Enquire	To Order
	LR155134	CANNISTER - FUEL VAPOUR STORE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060355	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060354	TUBE - FUEL VAPOUR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<52166	LR155317	BRACKET - SUPPORT	LR155317 BRACKET - SUPPORT Valve / From: FH501010	-	1	Enquire
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3	-	3	Enquire
HC2	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE Hose	-	3	Enquire
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6	-	1	Enquire
HS1	SDG500030	SCREW	SDG500030 SCREW M6 x 27MM, Screw And Washer	-	2	Enquire
HS2	LR155109	SCREW	LR155109 SCREW 5 x 20MM / From: FH501010	-	4	Enquire
3F656	LR155318	BRACKET - SUPPORT	LR155318 BRACKET - SUPPORT From: FH501010	-	1	Enquire
9A288	LR003198	INSULATOR - CHARCOAL CANISTER	LR003198 INSULATOR - CHARCOAL CANISTER Charcoal Cannister	-	1	Enquire
9B324	LR060841	TUBE - FUEL FEED	LR060841 TUBE - FUEL FEED From Fuel Tank To Under Floor Pipes	-	1	Enquire
9B995	LR027066	FILTER - FUEL	LR027066 FILTER - FUEL Charcoal Cannister / To: FH501009	-	1	Enquire
9B995	LR155104	FILTER - FUEL	LR155104 FILTER - FUEL Charcoal Cannister / From: FH501010	-	1	Enquire
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Charcoal Cannister	-	1	Enquire
9D372	LR155122	HOSE - FUEL VAPOUR	LR155122 HOSE - FUEL VAPOUR From: FH501010	-	1	Enquire
9D653A	LR027061	RESERVOIR - FUEL VAPOUR SYSTEM	LR027061 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister	-	1	Enquire
9D653B	LR048421	CANNISTER - FUEL VAPOUR STORE	LR048421 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / To: FH501009	-	1	Enquire
9D653B	LR155134	CANNISTER - FUEL VAPOUR STORE	LR155134 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: FH501010	-	1	Enquire
9G297	LR091260	FILTER - FUEL	LR091260 FILTER - FUEL To: FH501009	-	1	Enquire
9G297	LR155124	FILTER - FUEL	LR155124 FILTER - FUEL Charcoal Cannister / From: FH501010	-	1	Enquire
9J279A	LR060355	TUBE - FUEL VAPOUR	LR060355 TUBE - FUEL VAPOUR Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister	-	1	Enquire
9J279B	LR060354	TUBE - FUEL VAPOUR	LR060354 TUBE - FUEL VAPOUR Purge Line From Fuel Tank To Charcoal Canister	-	1	Enquire
9K318	LR060357	TUBE - FUEL VAPOUR	LR060357 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet	-	1	Enquire
14A411	LR027062	WIRE - JUMPER	LR027062 WIRE - JUMPER Charcoal Cannister	-	1	Enquire
2159	LR048459	PAD - FOAM	LR048459 PAD - FOAM	-	1	Enquire
