Rear Seat Pads/Valances & Heating (Row 3) (Changsu (China), Third Row Dual Individual Seat, With...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Rear Seat Pads/Valances & Heating (Row 3) (Changsu (China), Third Row Dual Individual Seat, With...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR060761 MAT - SEAT SUSPENSION Enquire To Order
Photo Part No Description Price (each) Stock
LR079610 BRACKET - SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR059451 COVER - RECLINE MECHANISM Enquire To Order
LR059456 COVER - RECLINE MECHANISM Enquire To Order
LR059457 COVER - RECLINE MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR059461 COVER - RECLINE MECHANISM Enquire To Order
LR059463 COVER - RECLINE MECHANISM Enquire To Order
LR059464 COVER - RECLINE MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR059468 COVER - RECLINE MECHANISM Enquire To Order
LR059472 COVER - RECLINE MECHANISM Enquire To Order
LR059473 COVER - RECLINE MECHANISM Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR065948 COVER - RECLINE MECHANISM Enquire To Order
LR065952 COVER - RECLINE MECHANISM Enquire To Order
LR065953 COVER - RECLINE MECHANISM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR065954 COVER - RECLINE MECHANISM Enquire To Order
LR065958 COVER - RECLINE MECHANISM Enquire To Order
LR065959 COVER - RECLINE MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR065950 COVER - RECLINE MECHANISM Enquire To Order
LR065962 COVER - RECLINE MECHANISM Enquire To Order
LR065963 COVER - RECLINE MECHANISM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR065964 COVER - RECLINE MECHANISM Enquire To Order
LR065967 COVER - RECLINE MECHANISM Enquire To Order
LR065968 COVER - RECLINE MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR059494 PAD - REAR SEAT CUSHION Enquire To Order
LR097611 PAD - REAR SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR059495 PAD - REAR SEAT CUSHION Enquire To Order
LR097612 PAD - REAR SEAT CUSHION Enquire To Order
Photo Part No Description Price (each) Stock
LR137545 GAP HIDER - REAR SEAT Enquire To Order
LR126519 GAP HIDER - REAR SEAT Enquire To Order
Photo Part No Description Price (each) Stock
LR073380 GAP HIDER - REAR SEAT Enquire To Order
LR073384 GAP HIDER - REAR SEAT Enquire To Order
LR078927 GAP HIDER - REAR SEAT Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR077051 PAD - REAR SEAT BACK Enquire To Order
LR097635 PAD - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR077052 PAD - REAR SEAT BACK Enquire To Order
LR097636 PAD - REAR SEAT BACK Enquire To Order
View All

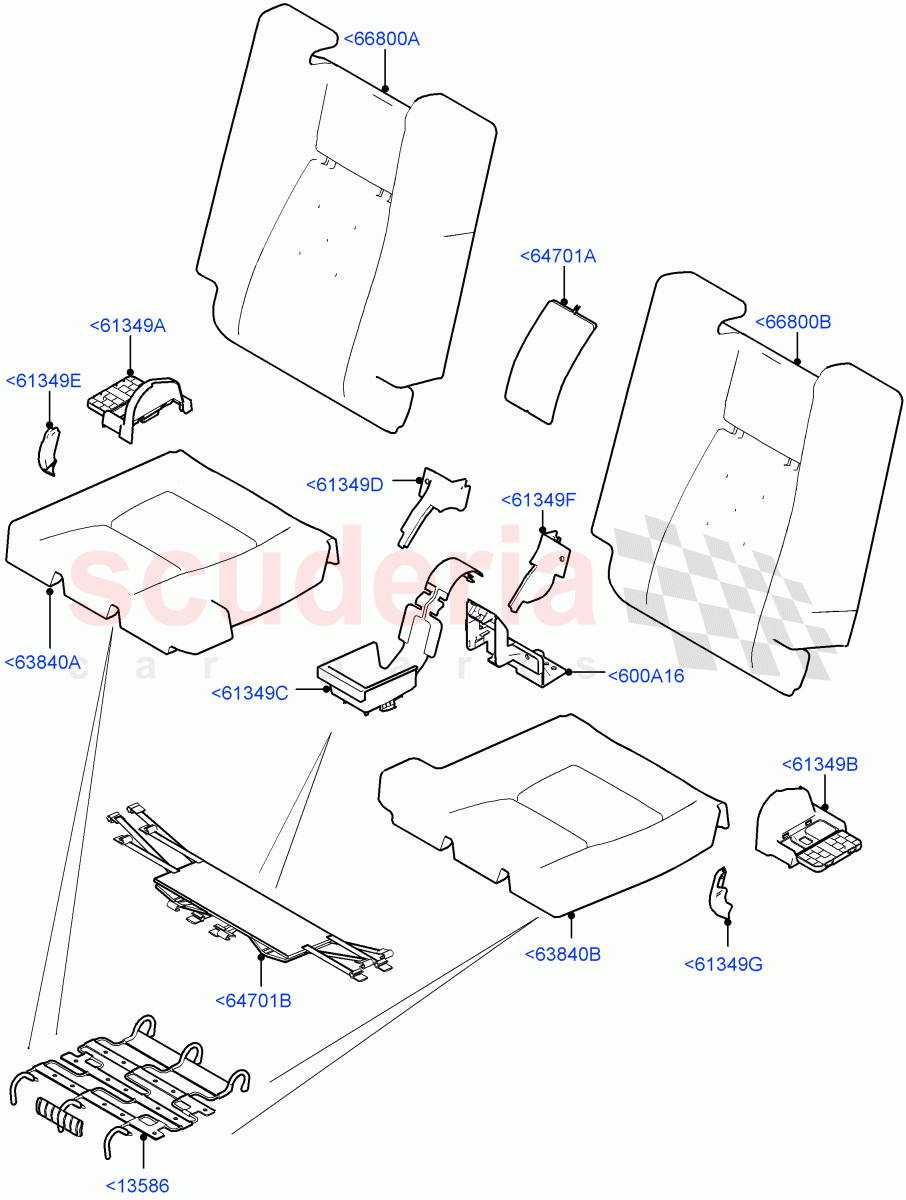

Rear Seat Pads/Valances & Heating (Row 3) (Changsu (China), Third Row Dual Individual Seat, With 3rd Row Double Seat) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<600A16 LR079610
BRACKET - SEAT CUSHION
Centre / From: FG000001 		- 1 Enquire
<13586 LR060761
MAT - SEAT SUSPENSION
RH/LH / From: FG000001 		- 2 Enquire
<61349A LR059451
COVER - RECLINE MECHANISM
Glacier / RH / From: FG000001 		- 1 Enquire
<61349A LR059456
COVER - RECLINE MECHANISM
Vintage Tan / RH / From: FG000001 		- 1 Enquire
<61349A LR059457
COVER - RECLINE MECHANISM
Almond / RH / From: FG000001 		- 1 Enquire
<61349B LR059461
COVER - RECLINE MECHANISM
Glacier / LH / From: FG000001 		- 1 Enquire
<61349B LR059463
COVER - RECLINE MECHANISM
Vintage Tan / LH / From: FG000001 		- 1 Enquire
<61349B LR059464
COVER - RECLINE MECHANISM
Almond / LH / From: FG000001 		- 1 Enquire
<61349C LR059468
COVER - RECLINE MECHANISM
Glacier / Centre / From: FG000001 / To: GG334932 		- 1 Enquire
<61349C LR059472
COVER - RECLINE MECHANISM
Tan / Centre / From: FG000001 / To: GG334932 		- 1 Enquire
<61349C LR059473
COVER - RECLINE MECHANISM
Almond / Centre / From: FG000001 / To: GG334932 		- 1 Enquire
<61349C LR090457
COVER - RECLINE MECHANISM
Glacier / Centre / From: GG334933 		- 1 Enquire
<61349C LR090460
COVER - RECLINE MECHANISM
Ebony Black/Ebony Black Interior / Centre / From: GG334933 		- 1 Enquire
<61349C LR090461
COVER - RECLINE MECHANISM
Almond / Centre / From: GG334933 		- 1 Enquire
<61349D LR065948
COVER - RECLINE MECHANISM
Glacier / RH, Inner / From: FG000001 		- 1 Enquire
<61349D LR065952
COVER - RECLINE MECHANISM
Tan / RH, Inner / From: FG000001 / To: KG446856 		- 1 Enquire
<61349D LR065953
COVER - RECLINE MECHANISM
Almond / RH, Inner / From: FG000001 		- 1 Enquire
<61349D LR124899
COVER - RECLINE MECHANISM
Light Oyster/Ebony / RH, Inner / From: KG446857 		- 2 Enquire
<61349E LR065954
COVER - RECLINE MECHANISM
Glacier / RH, Outer / From: FG000001 		- 1 Enquire
<61349E LR065958
COVER - RECLINE MECHANISM
Vintage Tan / RH, Outer / From: FG000001 		- 1 Enquire
<61349E LR065959
COVER - RECLINE MECHANISM
Almond / RH, Outer / From: FG000001 		- 1 Enquire
<61349F LR065950
COVER - RECLINE MECHANISM
Glacier / LH, Inner / From: FG000001 		- 1 Enquire
<61349F LR065962
COVER - RECLINE MECHANISM
Vintage Tan / LH, Inner / From: FG000001 / To: KG446856 		- 1 Enquire
<61349F LR065963
COVER - RECLINE MECHANISM
Almond / LH, Inner / From: FG000001 		- 1 Enquire
<61349F LR124905
COVER - RECLINE MECHANISM
Ebony Black/Ebony Black Interior / LH, Inner / From: KG446857 		- 1 Enquire
<61349G LR065964
COVER - RECLINE MECHANISM
Glacier / LH, Outer / From: FG000001 		- 1 Enquire
<61349G LR065967
COVER - RECLINE MECHANISM
Vintage Tan / LH, Outer / From: FG000001 		- 1 Enquire
<61349G LR065968
COVER - RECLINE MECHANISM
Almond / LH, Outer / From: FG000001 		- 1 Enquire
<63840A LR059494
PAD - REAR SEAT CUSHION
RH / From: FG000001 / To: HG379387 		- 1 Enquire
<63840A LR097611
PAD - REAR SEAT CUSHION
RH / From: HG379388 		- 1 Enquire
<63840B LR059495
PAD - REAR SEAT CUSHION
LH / From: FG000001 / To: HG379387 		- 1 Enquire
<63840B LR097612
PAD - REAR SEAT CUSHION
LH / From: HG379388 		- 1 Enquire
<64701A LR137545
GAP HIDER - REAR SEAT
Light Oyster/Ebony / Centre, Upper / From: KG446857 		- 1 Enquire
<64701A LR126519
GAP HIDER - REAR SEAT
Ebony/Pimento Red / Centre, Upper / From: JG421299 / To: KG446856 		- 1 Enquire
<64701B LR073380
GAP HIDER - REAR SEAT
Glacier / Centre, Lower / From: FG000001 / To: HG379387 		- 1 Enquire
<64701B LR073384
GAP HIDER - REAR SEAT
Ebony/Pimento Red / Centre, Lower / From: FG000001 / To: HG379387 		- 1 Enquire
<64701B LR078927
GAP HIDER - REAR SEAT
Tan / Centre, Lower / From: FG000001 / To: HG379387 		- 1 Enquire
<64701B LR073385
GAP HIDER - REAR SEAT
Almond / Centre, Lower / From: FG000001 / To: HG379387 		- 1 Enquire
<64701B LR097637
GAP HIDER - REAR SEAT
Glacier / Centre, Lower / From: HG379388 		- 1 Enquire
<64701B LR097640
GAP HIDER - REAR SEAT
Ebony Black/Ebony Black Interior / Centre, Lower / From: HG379388 		- 1 Enquire
<64701B LR097641
GAP HIDER - REAR SEAT
Vintage Tan / Centre, Lower / From: HG379388 		- 1 Enquire
<64701B LR097642
GAP HIDER - REAR SEAT
Almond / Centre, Lower / From: HG379388 		- 1 Enquire
<66800A LR077051
PAD - REAR SEAT BACK
RH / From: FG000001 / To: HG379387 		- 1 Enquire
<66800A LR097635
PAD - REAR SEAT BACK
RH / From: HG379388 		- 1 Enquire
<66800B LR077052
PAD - REAR SEAT BACK
LH / From: FG000001 / To: HG379387 		- 1 Enquire
<66800B LR097636
PAD - REAR SEAT BACK
LH / From: HG379388 		- 1 Enquire
