Rear Seat Base (Itatiaia (Brazil), 60/40 Load Through With Slide) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Rear Seat Base (Itatiaia (Brazil), 60/40 Load Through With Slide) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR079232 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR059291 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR059292 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR069789 WASHER Enquire To Order
LR085506 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR056867 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR079034 COVER - CROSS TUBE ISOFIX Enquire To Order
Photo Part No Description Price (each) Stock
LR073387 MOTOR - SEAT BACK RECLINING Enquire To Order
Photo Part No Description Price (each) Stock
LR073389 MOTOR - SEAT BACK RECLINING Enquire To Order
Photo Part No Description Price (each) Stock
LR066233 COVER - HINGE Enquire To Order
LR066235 COVER - HINGE Enquire To Order
LR066236 COVER - HINGE Enquire To Order
Photo Part No Description Price (each) Stock
LR059064 COVER - SEAT TRACK Enquire To Order
LR112671 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR059065 COVER - SEAT TRACK Enquire To Order
LR100965 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR059066 COVER - SEAT TRACK Enquire To Order
LR112667 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR059067 COVER - SEAT TRACK Enquire To Order
LR100967 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR073390 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR059070 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR066142 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR073392 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR076055 COVER - SEAT TRACK Enquire To Order
Photo Part No Description Price (each) Stock
LR026762 RETAINER - SEAT Enquire To Order
Photo Part No Description Price (each) Stock
LR079289 FRAME - REAR SEAT BACK RETAINING Enquire To Order
LR104470 FRAME - REAR SEAT BACK RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR079290 FRAME - REAR SEAT BACK RETAINING Enquire To Order
LR104472 FRAME - REAR SEAT BACK RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR066134 BRACKET - SEAT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR066135 BRACKET - SEAT SUPPORT Enquire To Order
View All

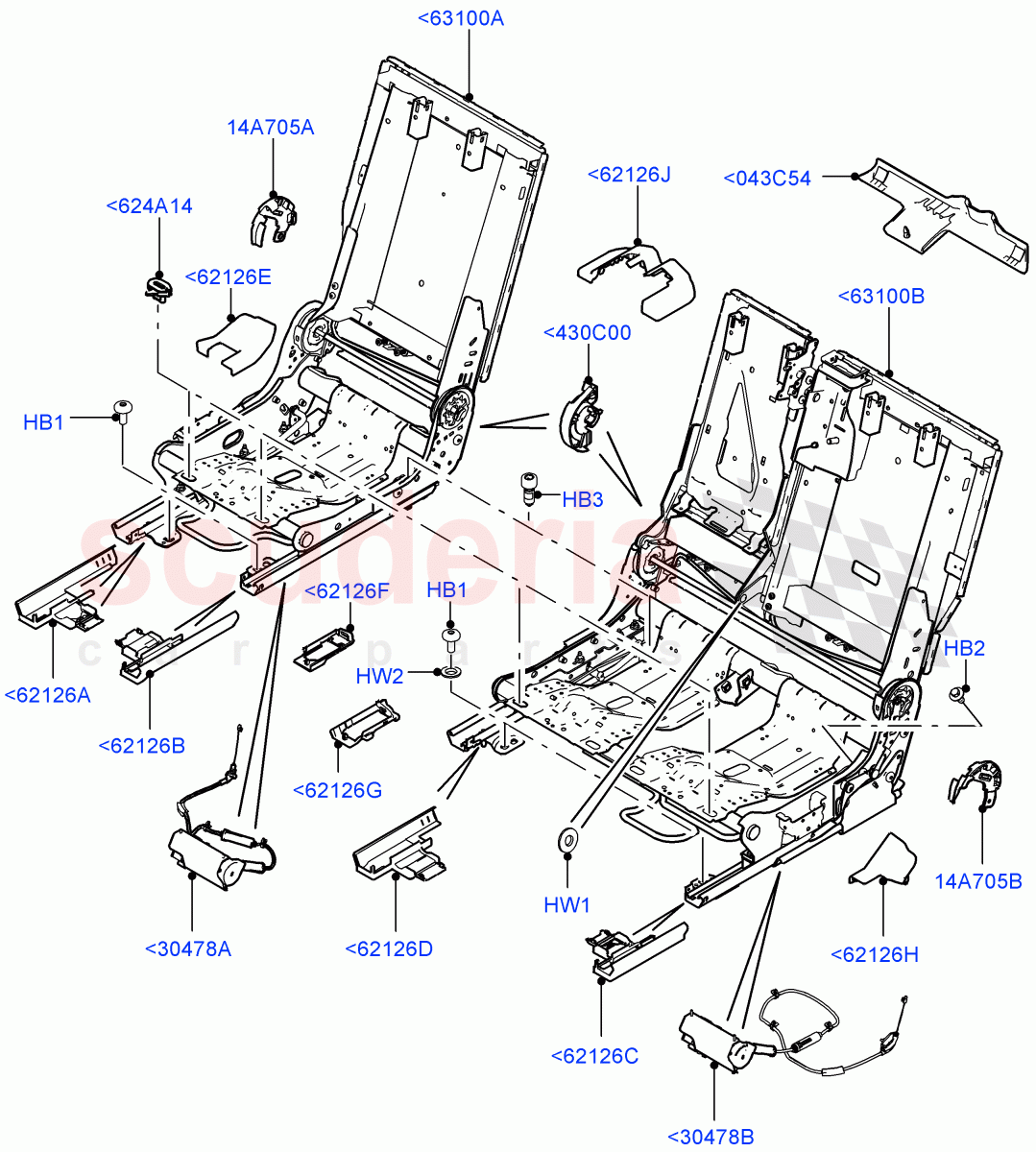

Rear Seat Base (Itatiaia (Brazil), 60/40 Load Through With Slide) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<043C54 LR079034
COVER - CROSS TUBE ISOFIX
Ebony Black / From: GT000001 		- 1 Enquire
<430C00 LR066233
COVER - HINGE
Cirrus / LH, 40% Seat, Inner / From: GT000001 		- 1 Enquire
<430C00 LR066235
COVER - HINGE
Ebony Black/Ebony Black Interior / LH, 40% Seat, Inner / From: GT000001 		- 1 Enquire
<430C00 LR066236
COVER - HINGE
Almond / LH, 40% Seat, Inner / From: GT000001 		- 1 Enquire
<624A14 LR026762
RETAINER - SEAT
From: GT000001 		- 4 Enquire
<30478A LR073387
MOTOR - SEAT BACK RECLINING
RH / From: GT000001 		- 1 Enquire
<30478B LR073389
MOTOR - SEAT BACK RECLINING
LH / From: GT000001 		- 1 Enquire
<62126A LR059064
COVER - SEAT TRACK
Outer, RH Seat / From: GT000001 / To: JT205379 		- 1 Enquire
<62126A LR112671
COVER - SEAT TRACK
Outer, RH Seat / From: JT205380 		- 1 Enquire
<62126B LR059065
COVER - SEAT TRACK
Inner, RH Seat / From: GT000001 / To: JT205379 		- 1 Enquire
<62126B LR100965
COVER - SEAT TRACK
Inner, RH Seat / From: JT205380 		- 1 Enquire
<62126C LR059066
COVER - SEAT TRACK
LH Seat, Outer / From: GT000001 / To: JT205379 		- 1 Enquire
<62126C LR112667
COVER - SEAT TRACK
LH Seat, Outer / From: JT205380 		- 1 Enquire
<62126D LR059067
COVER - SEAT TRACK
Inner, LH Seat / From: GT000001 / To: JT205379 		- 1 Enquire
<62126D LR100967
COVER - SEAT TRACK
Inner, LH Seat / From: JT205380 		- 1 Enquire
<62126E LR073390
COVER - SEAT TRACK
RH, Outer / From: GT000001 		- 1 Enquire
<62126F LR059070
COVER - SEAT TRACK
RH, 40% Seat, Inner / From: GT000001 		- 1 Enquire
<62126G LR066142
COVER - SEAT TRACK
LH, 60% Seat, Inner / From: GT000001 		- 1 Enquire
<62126H LR073392
COVER - SEAT TRACK
LH, Outer / From: GT000001 		- 1 Enquire
<62126J LR076055
COVER - SEAT TRACK
Centre / From: GT000001 		- 1 Enquire
<63100A LR079289
FRAME - REAR SEAT BACK RETAINING
40% Seat / From: GT000001 / To: JT205379 		- 1 Enquire
<63100A LR104470
FRAME - REAR SEAT BACK RETAINING
40% Seat / From: JT205380 		- 1 Enquire
<63100B LR079290
FRAME - REAR SEAT BACK RETAINING
60% Seat / From: GT000001 / To: JT205379 		- 1 Enquire
<63100B LR104472
FRAME - REAR SEAT BACK RETAINING
60% Seat / From: JT205380 		- 1 Enquire
HB1 LR079232
BOLT
M10 X 25MM / From: GT000001 		- 4 Enquire
HB2 LR059291
BOLT
M12 x 25MM / From: GT000001 		- 2 Enquire
HB3 LR059292
BOLT
M12 x 25MM / From: GT000001 		- 2 Enquire
HW1 LR069789
WASHER
60% Seat, Seat Back / From: GT000001 / To: JT205379 		- 1 Enquire
HW1 LR085506
WASHER
60% Seat, Seat Back / From: JT205380 		- 1 Enquire
HW2 LR056867
WASHER
M12 / From: GT000001 		- 6 Enquire
14A705A LR066134
BRACKET - SEAT SUPPORT
RH / From: GT000001 		- 1 Enquire
14A705B LR066135
BRACKET - SEAT SUPPORT
LH / From: GT000001 		- 1 Enquire
