Rear Seat Back (Changsu (China), With 60/40 Split - Folding Rr Seat) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Rear Seat Back (Changsu (China), With 60/40 Split - Folding Rr Seat) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000802 SCREW - PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR063173 COVER - ARMREST Enquire To Order
LR063175 COVER - ARMREST Enquire To Order
LR063176 COVER - ARMREST Enquire To Order
Photo Part No Description Price (each) Stock
LR000727 INSERT - REAR SEAT ARMREST Enquire To Order
Photo Part No Description Price (each) Stock
LR000728 BUSHING - ARMREST Enquire To Order
Photo Part No Description Price (each) Stock
LR068937 BRACKET - ARMREST Enquire To Order
Photo Part No Description Price (each) Stock
LR003770 LID - STORAGE COMPARTMENT Enquire To Order
LR009579 LID - STORAGE COMPARTMENT Enquire To Order
Photo Part No Description Price (each) Stock
LR004803 FASTENER - SEAT ARMREST Enquire To Order
Photo Part No Description Price (each) Stock
LR002419 CARPET - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR002420 CARPET - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR020537 LATCH - REAR SEAT BACK Enquire To Order
LR059288 LATCH - REAR SEAT BACK Enquire To Order
LR022375 LATCH - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR059289 LATCH - REAR SEAT BACK Enquire To Order
LR020538 LATCH - REAR SEAT BACK Enquire To Order
LR022373 LATCH - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR068920 HINGE - REAR SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR000370 STRIKER - LATCH Enquire To Order
Photo Part No Description Price (each) Stock
LR000371 STRIKER Enquire To Order
Photo Part No Description Price (each) Stock
LR078159 FRAME - REAR SEAT BACK RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR078160 FRAME - REAR SEAT BACK RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR000732 CLIP - PAD Enquire To Order
Photo Part No Description Price (each) Stock
LR000731 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR066217 COVER - TETHER SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR066219 COVER - TETHER SEAT BACK Enquire To Order
Photo Part No Description Price (each) Stock
LR068927 BEZEL - HEADREST Enquire To Order
LR068929 BEZEL - HEADREST Enquire To Order
LR070454 SLEEVE - HEADREST GUIDE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR068933 BEZEL - HEADREST Enquire To Order
LR068934 BEZEL - HEADREST Enquire To Order
LR070455 SLEEVE - HEADREST GUIDE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR068940 BEZEL - SEAT BACK LOCKING MECHANISM Enquire To Order
LR094564 BEZEL - SEAT BACK LOCKING MECHANISM Enquire To Order
LR128420 BEZEL - SEAT BACK LOCKING MECHANISM Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR000730 BEZEL Enquire To Order
View All

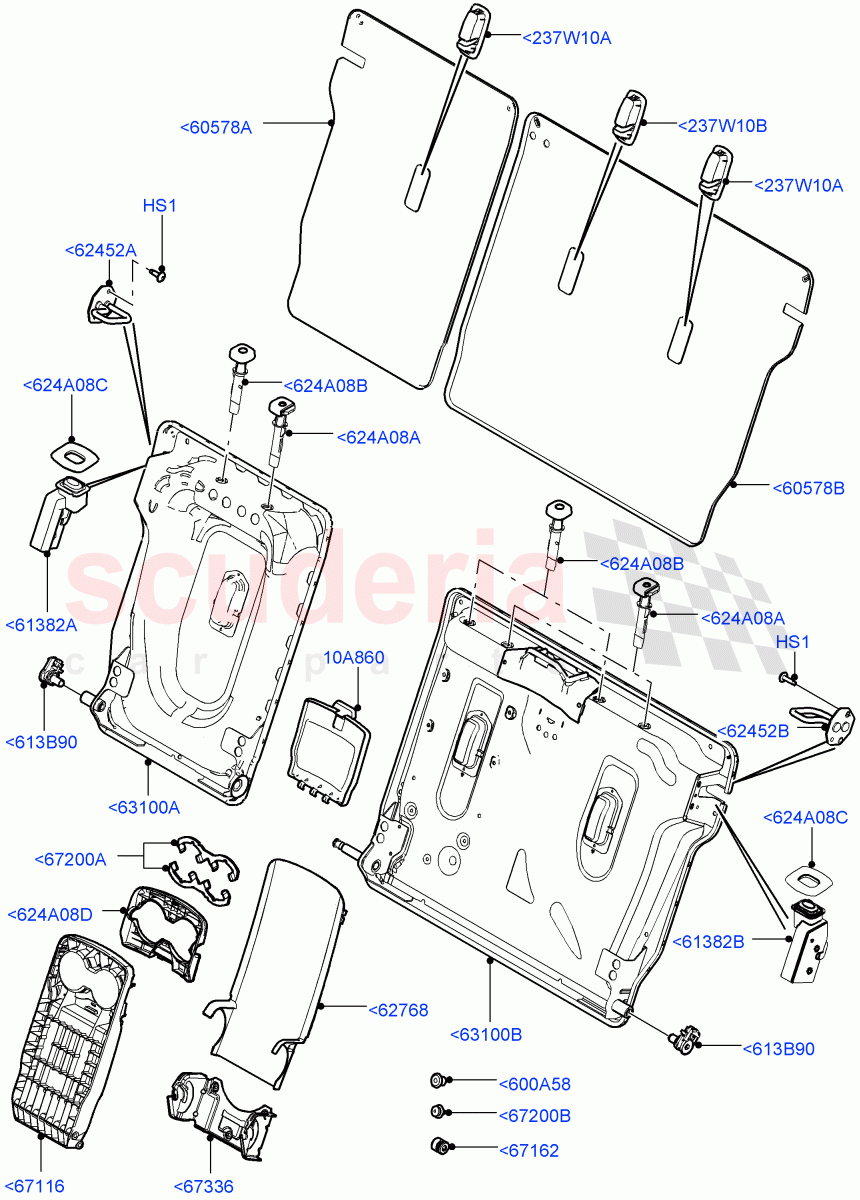

Rear Seat Back (Changsu (China), With 60/40 Split - Folding Rr Seat) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<237W10A LR066217
COVER - TETHER SEAT BACK
LH Side, RH Side, With Painted Logo / From: FG000001 		- 2 Enquire
<237W10B LR066219
COVER - TETHER SEAT BACK
Centre, Less Logo / From: FG000001 		- 1 Enquire
<600A58 LR004803
FASTENER - SEAT ARMREST
From: FG000001 		- 3 Enquire
<613B90 LR068920
HINGE - REAR SEAT BACK
From: FG000001 		- 2 Enquire
<624A08A LR068927
BEZEL - HEADREST
Ebony Black/Ebony Black Interior / Non Locking / From: FG000001 		- 3 Enquire
<624A08A LR068929
BEZEL - HEADREST
Almond / Non Locking / From: FG000001 		- 3 Enquire
<624A08A LR070454
SLEEVE - HEADREST GUIDE
Glacier / Non Locking / From: FG000001 		- 3 Enquire
<624A08A LR128422
BEZEL - HEADREST
Oyster Beige / Non Locking / From: KG446856 		- 3 Enquire
<624A08A LR128423
BEZEL - HEADREST
Acorn / Non Locking / From: KG446856 		- 3 Enquire
<624A08B LR068933
BEZEL - HEADREST
Ebony Black/Ebony Black Interior / Locking Type / From: FG000001 		- 3 Enquire
<624A08B LR068934
BEZEL - HEADREST
Almond / Locking Type / From: FG000001 		- 3 Enquire
<624A08B LR070455
SLEEVE - HEADREST GUIDE
Glacier / Locking Type / From: FG000001 		- 3 Enquire
<624A08B LR127906
BEZEL - HEADREST
Light Oyster/Ebony / Locking Type / From: KG446856 		- 3 Enquire
<624A08B LR127907
BEZEL - HEADREST
Acorn / Locking Type / From: KG446856 		- 3 Enquire
<624A08C LR068940
BEZEL - SEAT BACK LOCKING MECHANISM
Almond / From: FG000001 		- 2 Enquire
<624A08C LR094564
BEZEL - SEAT BACK LOCKING MECHANISM
Glacier / From: FG000001 		- 2 Enquire
<624A08C LR128420
BEZEL - SEAT BACK LOCKING MECHANISM
Oyster Beige / From: KG446856 		- 2 Enquire
<624A08C LR068922
BEZEL - SEAT BACK LOCKING MECHANISM
Ebony Black/Ebony Black Interior / From: FG000001 		- 2 Enquire
<624A08C LR128421
BEZEL - SEAT BACK LOCKING MECHANISM
Acorn / From: KG446856 		- 2 Enquire
<624A08D LR000730
BEZEL
Rear Centre Armrest With Cupholder / From: FG000001 		- 1 Enquire
<60578A LR002419
CARPET - REAR SEAT BACK
Small / From: FG000001 		- 1 Enquire
<60578B LR002420
CARPET - REAR SEAT BACK
Large / From: FG000001 		- 1 Enquire
<61382A LR020537
LATCH - REAR SEAT BACK
Ebony Black/Ebony Black Interior / RH / From: FG000001 		- 1 Enquire
<61382A LR059288
LATCH - REAR SEAT BACK
Glacier / RH / From: FG000001 		- 1 Enquire
<61382A LR022375
LATCH - REAR SEAT BACK
Almond / RH / From: FG000001 		- 1 Enquire
<61382B LR059289
LATCH - REAR SEAT BACK
Glacier / LH / From: FG000001 		- 1 Enquire
<61382B LR020538
LATCH - REAR SEAT BACK
Ebony Black/Ebony Black Interior / LH / From: FG000001 		- 1 Enquire
<61382B LR022373
LATCH - REAR SEAT BACK
Almond / LH / From: FG000001 		- 1 Enquire
<62452A LR000370
STRIKER - LATCH
RH / From: FG000001 		- 1 Enquire
<62452B LR000371
STRIKER
LH / From: FG000001 		- 1 Enquire
<62768 LR063173
COVER - ARMREST
Glacier, Rear Centre Armrest With Cupholder / From: FG000001 		- 1 Enquire
<62768 LR063175
COVER - ARMREST
Ebony Black/Ebony Black Interior, Rear Centre Armrest With Cupholder / From: FG000001 		- 1 Enquire
<62768 LR063176
COVER - ARMREST
Almond, Rear Centre Armrest With Cupholder / From: FG000001 		- 1 Enquire
<63100A LR078159
FRAME - REAR SEAT BACK RETAINING
Small / From: FG000001 		- 1 Enquire
<63100B LR078160
FRAME - REAR SEAT BACK RETAINING
Large / From: FG000001 		- 1 Enquire
<67116 LR000727
INSERT - REAR SEAT ARMREST
Rear Centre Armrest With Cupholder / From: FG000001 		- 1 Enquire
<67162 LR000728
BUSHING - ARMREST
Rear Centre Armrest With Cupholder / From: FG000001 		- 1 Enquire
<67200A LR000732
CLIP - PAD
Rear Centre Armrest With Cupholder / From: FG000001 		- 2 Enquire
<67200B LR000731
CLIP
Rear Centre Armrest With Cupholder / From: FG000001 		- 4 Enquire
<67336 LR068937
BRACKET - ARMREST
Rear Centre Armrest With Cupholder / From: FG000001 		- 1 Enquire
HS1 LR000802
SCREW - PAN HEAD
M8 X 17MM / From: FG000001 		- 4 Enquire
10A860 LR003770
LID - STORAGE COMPARTMENT
Ebony Black/Ebony Black Interior, Rear Centre Armrest With Cupholder, Taurus Leather Perforated / From: FG000001 		- 1 Enquire
10A860 LR009579
LID - STORAGE COMPARTMENT
Almond, Rear Centre Armrest With Cupholder, Taurus Leather Perforated / From: FG000001 		- 1 Enquire
