Instrument Panel (Centre, External) (Changsu (China)) ((V) Fromfg000001, (V) Tokg446856)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Instrument Panel (Centre, External) (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

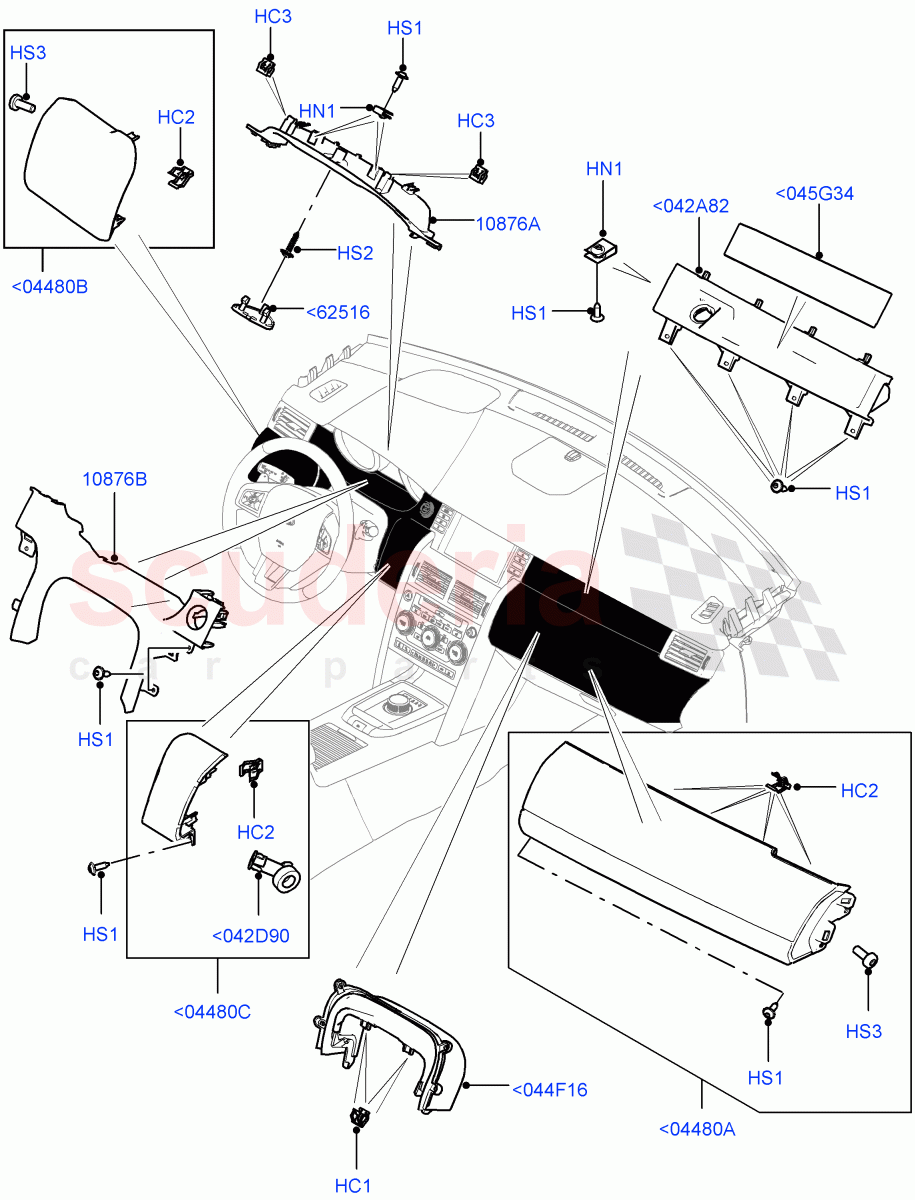

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR044894 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR006453 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR004023 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR006214 NUT Enquire To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR007312 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR027849 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR026088 CAP - SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR059837 BEZEL - INSTRUMENT CLUSTER Enquire To Order
Photo Part No Description Price (each) Stock
LR060672 COVER - INSTRUMENT CLUSTER Enquire To Order
Photo Part No Description Price (each) Stock
LR072461 STOWAGE - INSTRUMENT PANEL Enquire To Order
LR072463 STOWAGE - INSTRUMENT PANEL Enquire To Order
LR083787 STOWAGE - INSTRUMENT PANEL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR059809 GRILLE Enquire To Order
LR059815 GRILLE Enquire To Order
Photo Part No Description Price (each) Stock
LR076094 MOULDING - INSTRUMENT PANEL Enquire To Order
LR076103 MOULDING - INSTRUMENT PANEL Enquire To Order
LR076106 MOULDING - INSTRUMENT PANEL Enquire To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR059613 PANEL - INSTRUMENT Enquire To Order
LR067399 PANEL - INSTRUMENT Enquire To Order
LR059640 PANEL - INSTRUMENT Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR059655 PANEL - INSTRUMENT Enquire To Order
LR067402 PANEL - INSTRUMENT Enquire To Order
LR059667 PANEL - INSTRUMENT Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR059836 FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR073040 MAT - ANTISLIP - RUBBER Enquire To Order
LR073042 MAT - ANTISLIP - RUBBER Enquire To Order
View All
Instrument Panel (Centre, External) (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<042A82 LR072461
STOWAGE - INSTRUMENT PANEL
With Accessory USB 2 Unit / From: FG000001 / To: HG347883 		- 1 Enquire
<042A82 LR072463
STOWAGE - INSTRUMENT PANEL
With Center Console Accessory USB / From: FG000001 / To: GG325757 		- 1 Enquire
<042A82 LR083787
STOWAGE - INSTRUMENT PANEL
LHD, With Accessory USB 2 Unit / From: HG347884 		- 1 Enquire
<042A82 LR085573
STOWAGE - INSTRUMENT PANEL
Less Accessory USB Unit / From: GG325758 		- 1 Enquire
<042D90 LR059809
GRILLE
I/P Facia Contrast - Lunar/Glacia, With Leather Facia / From: FG000001 		- 1 Enquire
<042D90 LR059815
GRILLE
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black / From: FG000001 		- 1 Enquire
<044F16 LR059836
FILLER
From: FG000001 		- 1 Enquire
<045G34 LR073040
MAT - ANTISLIP - RUBBER
With Center Console Accessory USB / From: FG000001 		- 1 Enquire
<045G34 LR073042
MAT - ANTISLIP - RUBBER
With Accessory USB Unit / From: FG000001 		- 1 Enquire
<04480A LR076094
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony Black, With PVC Facia / From: FG000001 / To: HG347883 		- 1 Enquire
<04480A LR076103
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Lunar/Glacia, With Leather Facia / From: FG000001 / To: HG347883 		- 1 Enquire
<04480A LR076106
MOULDING - INSTRUMENT PANEL
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, With Leather Facia / From: FG000001 / To: HG347883 		- 1 Enquire
<04480A LR076108
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony Black, Tan, With Leather Facia / From: FG000001 / To: HG347883 		- 1 Enquire
<04480A LR076095
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Lunar/Glacia, With PVC Facia / From: FG000001 / To: HG347883 		- 1 Enquire
<04480A LR085443
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony Black, With PVC Facia / From: HG347884 		- 1 Enquire
<04480A LR085444
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Lunar/Glacia, With PVC Facia / From: HG347884 		- 1 Enquire
<04480A LR085445
MOULDING - INSTRUMENT PANEL
I/P Facia Cntr-Ebony Black/Almond, With PVC Facia / From: HG347884 		- 1 Enquire
<04480A LR085452
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Lunar/Glacia, With Leather Facia / From: HG347884 		- 1 Enquire
<04480A LR085455
MOULDING - INSTRUMENT PANEL
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, With Leather Facia / From: HG347884 		- 1 Enquire
<04480A LR096533
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony Black, Vintage Tan, With Leather Facia / From: HG379388 		- 1 Enquire
<04480A LR085457
MOULDING - INSTRUMENT PANEL
I/P Facia Contrast - Ebony Black, Tan, With Leather Facia / From: HG347884 		- 1 Enquire
<04480A LR077900
MOULDING - INSTRUMENT PANEL
Ebony/Pimento Red, I/P Facia Contrast - Ebony Black, PVC Triton Grain Facia / From: FG000001 		- 1 Enquire
<04480A LR077899
MOULDING - INSTRUMENT PANEL
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, PVC Triton Grain Facia / From: FG000001 		- 1 Enquire
<04480A LR076096
MOULDING - INSTRUMENT PANEL
I/P Facia Cntr-Ebony Black/Almond, With PVC Facia / From: FG000001 / To: HG347883 		- 1 Enquire
<04480B LR059613
PANEL - INSTRUMENT
I/P Facia Contrast - Ebony Black, With PVC Facia / From: FG000001 		- 1 Enquire
<04480B LR067399
PANEL - INSTRUMENT
I/P Facia Cntr-Ebony Black/Almond, With PVC Facia / From: FG000001 		- 1 Enquire
<04480B LR059640
PANEL - INSTRUMENT
I/P Facia Contrast - Lunar/Glacia, With Leather Facia / From: FG000001 		- 1 Enquire
<04480B LR059643
PANEL - INSTRUMENT
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, With Leather Facia / From: FG000001 		- 1 Enquire
<04480B LR059645
PANEL - INSTRUMENT
I/P Facia Contrast - Ebony Black, Tan, With Leather Facia / From: FG000001 		- 1 Enquire
<04480B LR096532
PANEL - INSTRUMENT
I/P Facia Contrast - Ebony Black, Vintage Tan, With Leather Facia / From: HG379388 		- 1 Enquire
<04480B LR059614
PANEL - INSTRUMENT
I/P Facia Contrast - Lunar/Glacia, With PVC Facia / From: FG000001 		- 1 Enquire
<04480B LR077906
PANEL - INSTRUMENT
Ebony/Pimento Red, I/P Facia Contrast - Ebony Black, PVC Triton Grain Facia / From: KG422269 		- 1 Enquire
<04480B LR077905
PANEL - INSTRUMENT
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, PVC Triton Grain Facia / From: KG422269 		- 1 Enquire
<04480C LR059655
PANEL - INSTRUMENT
I/P Facia Contrast - Ebony Black, With PVC Facia / From: FG000001 		- 1 Enquire
<04480C LR067402
PANEL - INSTRUMENT
I/P Facia Cntr-Ebony Black/Almond, With PVC Facia / From: FG000001 		- 1 Enquire
<04480C LR059667
PANEL - INSTRUMENT
I/P Facia Contrast - Lunar/Glacia, With Leather Facia / From: FG000001 		- 1 Enquire
<04480C LR059670
PANEL - INSTRUMENT
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, With Leather Facia / From: FG000001 		- 1 Enquire
<04480C LR059672
PANEL - INSTRUMENT
I/P Facia Contrast - Ebony Black, Tan, With Leather Facia / From: FG000001 		- 1 Enquire
<04480C LR096535
PANEL - INSTRUMENT
I/P Facia Contrast - Ebony Black, Vintage Tan, With Leather Facia / From: HG379388 		- 1 Enquire
<04480C LR059656
PANEL - INSTRUMENT
I/P Facia Contrast - Lunar/Glacia, With PVC Facia / From: FG000001 		- 1 Enquire
<04480C LR077911
PANEL - INSTRUMENT
Ebony Black/Ebony Black Interior, I/P Facia Contrast - Ebony Black, PVC Triton Grain Facia / From: KG422269 		- 1 Enquire
<04480C LR077912
PANEL - INSTRUMENT
Ebony/Pimento Red, I/P Facia Contrast - Ebony Black, PVC Triton Grain Facia / From: KG422269 		- 1 Enquire
<62516 LR026088
CAP - SCREW
From: FG000001 		- 1 Enquire
HC1 LR044894
CLIP
0.8 - 2.5 / From: FG000001 		- 1 Enquire
HC2 LR006453
CLIP
8.5 X 16 X 1.7 / From: FG000001 		- 1 Enquire
HC3 LR004023
CLIP
1.4 M, Push On / From: FG000001 		- 1 Enquire
HN1 LR006214
NUT
4.2 X 2.25 - 3 / From: FG000001 		- 1 Enquire
HS1 PYP500140
SCREW
4.2 x 13MM, Torx / From: FG000001 		- 1 Enquire
HS2 LR007312
SCREW
4.2 X 19MM / From: FG000001 		- 1 Enquire
HS3 LR027849
SCREW
M6 X 16MM / From: FG000001 		- 1 Enquire
10876A LR059837
BEZEL - INSTRUMENT CLUSTER
Upper / From: FG000001 / To: KG446856 		- 1 Enquire
10876B LR060672
COVER - INSTRUMENT CLUSTER
Lower / From: FG000001 		- 1 Enquire
