Console - Floor (External Components) (Halewood (Uk), Low Line Cubby Box) ((V) Tokh999999)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Console - Floor (External Components) (Halewood (UK), Low Line Cubby Box) ((V) TOKH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR044894 CLIP Enquire To Order
LR044894 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR004023 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR006214 NUT Enquire To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW Enquire To Order
PYP500140 SCREW Enquire To Order
PYP500140 SCREW Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
RYP500730 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000695 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR003016 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR060681 PANEL - CONSOLE - END FINISHER Enquire To Order
LR060682 PANEL - CONSOLE - END FINISHER Enquire To Order
LR060683 PANEL - CONSOLE - END FINISHER Enquire To Order
Photo Part No Description Price (each) Stock
LR005248 ASH TRAY Enquire To Order
Photo Part No Description Price (each) Stock
LR060735 HOLDER - CUP Enquire To Order
LR060736 HOLDER - CUP Enquire To Order
LR072443 HOLDER - CUP Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR073458 FINISHER - CENTRE FLOOR CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR060720 BEZEL - CENTRE CONSOLE Enquire To Order
LR076842 BEZEL - CENTRE CONSOLE Enquire To Order
Photo Part No Description Price (each) Stock
LR060739 INTAGLIO - CONSOLE CENTRE Enquire To Order
Photo Part No Description Price (each) Stock
LR060721 BEZEL - USB PORT Enquire To Order
LR076856 BEZEL - USB PORT Enquire To Order
Photo Part No Description Price (each) Stock
LR060722 BEZEL - USB PORT Enquire To Order
LR076857 BEZEL - USB PORT Enquire To Order
Photo Part No Description Price (each) Stock
LR060737 COMPARTMENT - REAR STOWAGE Enquire To Order
Photo Part No Description Price (each) Stock
FHE500012PVJ COVER - CONSOLE FIXING Enquire To Order
Photo Part No Description Price (each) Stock
LR060725 PANEL - CONSOLE SIDE Enquire To Order
LR060730 PANEL - CONSOLE SIDE Enquire To Order
LR060726 PANEL - CONSOLE SIDE Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060704 PANEL - CONSOLE SIDE Enquire To Order
LR060705 PANEL - CONSOLE SIDE Enquire To Order
LR060706 PANEL - CONSOLE SIDE Enquire To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060712 PANEL - CONSOLE - CENTRE FINISHER Enquire To Order
LR072472 PANEL - CONSOLE - CENTRE FINISHER Enquire To Order
LR112076 PANEL - CONSOLE - CENTRE FINISHER Enquire To Order
Photo Part No Description Price (each) Stock
LR060694 MAT - CONSOLE STOWAGE Enquire To Order
Photo Part No Description Price (each) Stock
LR111097 MAT - CONSOLE STOWAGE Enquire To Order
View All

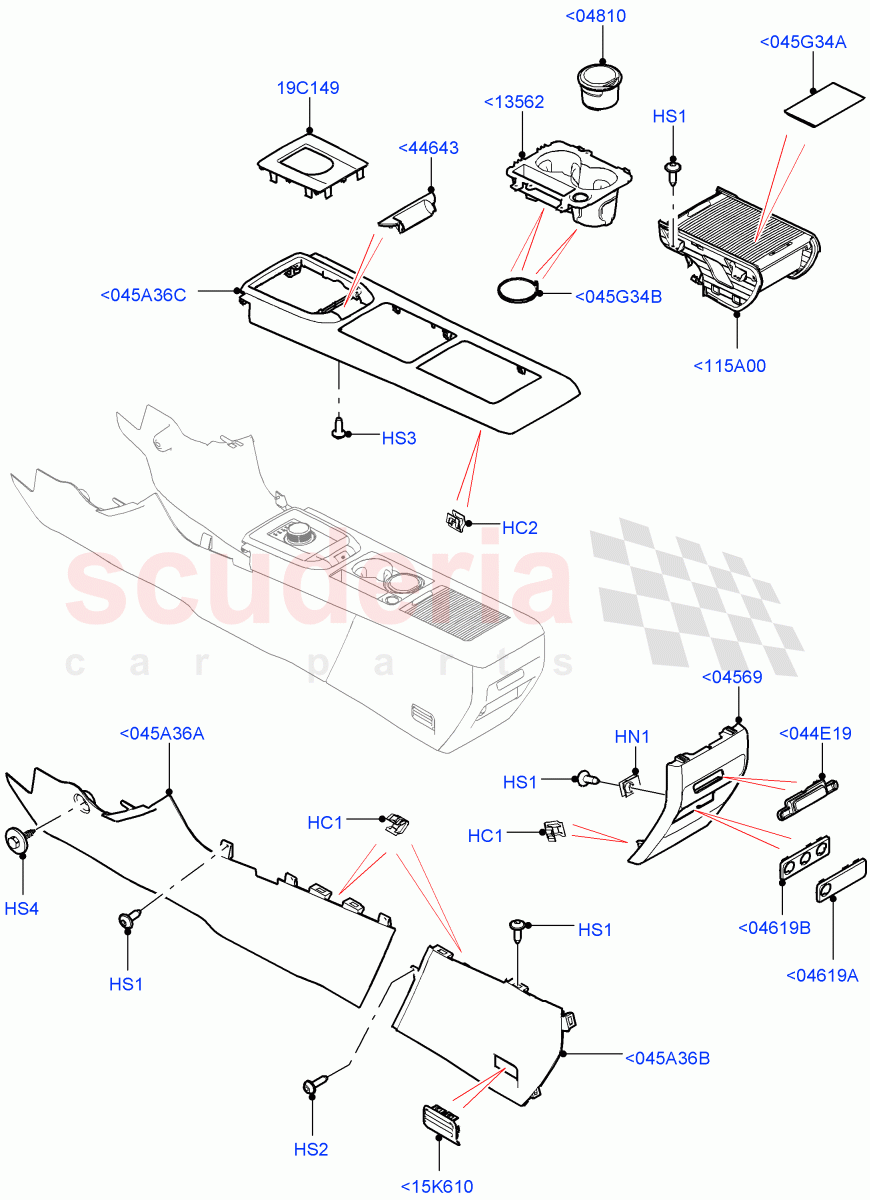

Console - Floor (External Components) (Halewood (UK), Low Line Cubby Box) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<15K610 FHE500012PVJ
COVER - CONSOLE FIXING 		- 2 Enquire
<044E19 LR060739
INTAGLIO - CONSOLE CENTRE
Less Seat Temperature Control 		- 1 Enquire
<045A36A LR060725
PANEL - CONSOLE SIDE
I/P Facia Contrast - Lunar/Glacia / RH, Front 		- 1 Enquire
<045A36A LR060730
PANEL - CONSOLE SIDE
I/P Facia Contrast - Lunar/Glacia / LH, Front 		- 1 Enquire
<045A36A LR060726
PANEL - CONSOLE SIDE
I/P Facia Contrast - Cirrus/Lunar / RH, Front 		- 1 Enquire
<045A36A LR060731
PANEL - CONSOLE SIDE
I/P Facia Contrast - Cirrus/Lunar / LH, Front 		- 1 Enquire
<045A36A LR060728
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony Black / RH, Front 		- 1 Enquire
<045A36A LR060733
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony Black / LH, Front 		- 1 Enquire
<045A36B LR060704
PANEL - CONSOLE SIDE
I/P Facia Contrast - Lunar/Glacia / LH, Rear / To: FH501436 		- 1 Enquire
<045A36B LR060705
PANEL - CONSOLE SIDE
I/P Facia Contrast - Cirrus/Lunar / LH, Rear / To: FH501436 		- 1 Enquire
<045A36B LR060706
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony/Lunar / LH, Rear / To: FH501436 		- 1 Enquire
<045A36B LR060696
PANEL - CONSOLE SIDE
I/P Facia Contrast - Lunar/Glacia / RH, Rear / To: FH501436 		- 1 Enquire
<045A36B LR060697
PANEL - CONSOLE SIDE
I/P Facia Contrast - Cirrus/Lunar / RH, Rear / To: FH501436 		- 1 Enquire
<045A36B LR060698
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony/Lunar / RH, Rear / To: FH501436 		- 1 Enquire
<045A36B LR072459
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony Black / LH, Rear / From: FH501437 		- 1 Enquire
<045A36B LR072456
PANEL - CONSOLE SIDE
I/P Facia Contrast - Lunar/Glacia / LH, Rear / From: FH501437 		- 1 Enquire
<045A36B LR072457
PANEL - CONSOLE SIDE
I/P Facia Contrast - Cirrus/Lunar / LH, Rear / From: FH501437 		- 1 Enquire
<045A36B LR072452
PANEL - CONSOLE SIDE
I/P Facia Contrast - Lunar/Glacia / RH, Rear / From: FH501437 		- 1 Enquire
<045A36B LR072453
PANEL - CONSOLE SIDE
I/P Facia Contrast - Cirrus/Lunar / RH, Rear / From: FH501437 		- 1 Enquire
<045A36B LR072455
PANEL - CONSOLE SIDE
I/P Facia Contrast - Ebony Black / RH, Rear / From: FH501437 		- 1 Enquire
<045A36C LR060712
PANEL - CONSOLE - CENTRE FINISHER
To: FH501421 		- 1 Enquire
<045A36C LR072472
PANEL - CONSOLE - CENTRE FINISHER
From: FH501422 / To: JH733017 		- 1 Enquire
<045A36C LR112076
PANEL - CONSOLE - CENTRE FINISHER
From: JH733018 		- 1 Enquire
<045G34A LR060694
MAT - CONSOLE STOWAGE 		- 1 Enquire
<045G34B LR111097
MAT - CONSOLE STOWAGE
Cup Holder / From: KH785740 		- 2 Enquire
<115A00 LR060737
COMPARTMENT - REAR STOWAGE 		- 1 Enquire
<04569 LR060681
PANEL - CONSOLE - END FINISHER
I/P Facia Contrast - Lunar/Glacia 		- 1 Enquire
<04569 LR060682
PANEL - CONSOLE - END FINISHER
I/P Facia Contrast - Cirrus/Lunar 		- 1 Enquire
<04569 LR060683
PANEL - CONSOLE - END FINISHER
I/P Facia Contrast - Ebony Black 		- 1 Enquire
<04619A LR060721
BEZEL - USB PORT
USB Power Socket Row 3 / With 1 Socket / To: FH502550 		- 1 Enquire
<04619A LR076856
BEZEL - USB PORT
USB Power Socket Row 3 / With 1 Socket / From: FH502551 		- 1 Enquire
<04619B LR060722
BEZEL - USB PORT
USB Power Socket Row 2 / With 3 Sockets / To: FH530536 		- 1 Enquire
<04619B LR076857
BEZEL - USB PORT
USB Power Socket Row 2 And 3 / With 3 Sockets / From: FH530537 		- 1 Enquire
<04810 LR005248
ASH TRAY
With 2nd Row Smokers Package / Ebony Black 		- 1 Enquire
<13562 LR060735
HOLDER - CUP
RHD / To: FH501421 		- 1 Enquire
<13562 LR060736
HOLDER - CUP
LHD / To: FH501421 		- 1 Enquire
<13562 LR072443
HOLDER - CUP
LHD / From: FH501422 / To: HH704275 		- 1 Enquire
<13562 LR072442
HOLDER - CUP
RHD / From: FH501422 / To: HH704275 		- 1 Enquire
<13562 LR096829
HOLDER - CUP
LHD, With Centre Console Top Finisher / From: HH704276 		- 1 Enquire
<13562 LR096830
HOLDER - CUP
RHD, With Centre Console Top Finisher / From: HH704276 		- 1 Enquire
<44643 LR073458
FINISHER - CENTRE FLOOR CONSOLE
From: FH501422 		- 1 Enquire
HC1 LR044894
CLIP
0.8 - 2.5, Fixes Side Panel 		- 6 Enquire
HC1 LR044894
CLIP
0.8 - 2.5, Fixes End Finisher 		- 4 Enquire
HC2 LR004023
CLIP
1.4 M, Push On 		- 8 Enquire
HN1 LR006214
NUT
4.2 X 2.25 - 3 		- 2 Enquire
HS1 PYP500140
SCREW
4.2 x 13MM, Fixes End Finisher, Torx 		- 2 Enquire
HS1 PYP500140
SCREW
4.2 x 13MM, Fixes Side Panel, Rear, Torx 		- 1 Enquire
HS1 PYP500140
SCREW
4.2 x 13MM, Fixes Stowage, Torx 		- 4 Enquire
HS1 PYP500140
SCREW
4.2 x 13MM, Fixes Side Panel, Front, Torx 		- 3 Enquire
HS2 RYP500730
SCREW
4 x 14MM, Torx 		- 1 Enquire
HS3 LR000695
SCREW
M4 x 10MM 		- 6 Enquire
HS4 LR003016
SCREW AND WASHER
17.0MM, 4.2 		- 1 Enquire
19C149 LR060720
BEZEL - CENTRE CONSOLE
9 Speed Auto AWD / To: FH501424 		- 1 Enquire
19C149 LR076842
BEZEL - CENTRE CONSOLE
9 Speed Auto AWD / From: FH501425 		- 1 Enquire
