Name: Console - Floor (Internal Components) (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)
Rating: 5.0 (1 reviews)

Console - Floor (Internal Components) (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Console - Floor (Internal Components) (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR027626	BOLT	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004023	CLIP	$3.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006214	NUT	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005270	NUT - SPECIAL	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500700	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.32	IN STOCK
	KYP500400	SCREW AND WASHER	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073098	BRACKET - SUPPORT	$69.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095125	COVER - MODULE	$95.13	To Order
	LR095363	COVER - MODULE	$44.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073373	CONSOLE - CENTRE FLOOR	$189.08	To Order
	LR088568	CONSOLE - CENTRE FLOOR	$219.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072301	BRACKET - CONSOLE	$32.81	To Order
	LR078668	BRACKET - CONSOLE	$53.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059704	BRACKET - CHILD SEAT MOUNTING	$76.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073046	BRACKET - CONSOLE	$96.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073424	BRACKET - CONSOLE	$53.32	To Order

View All

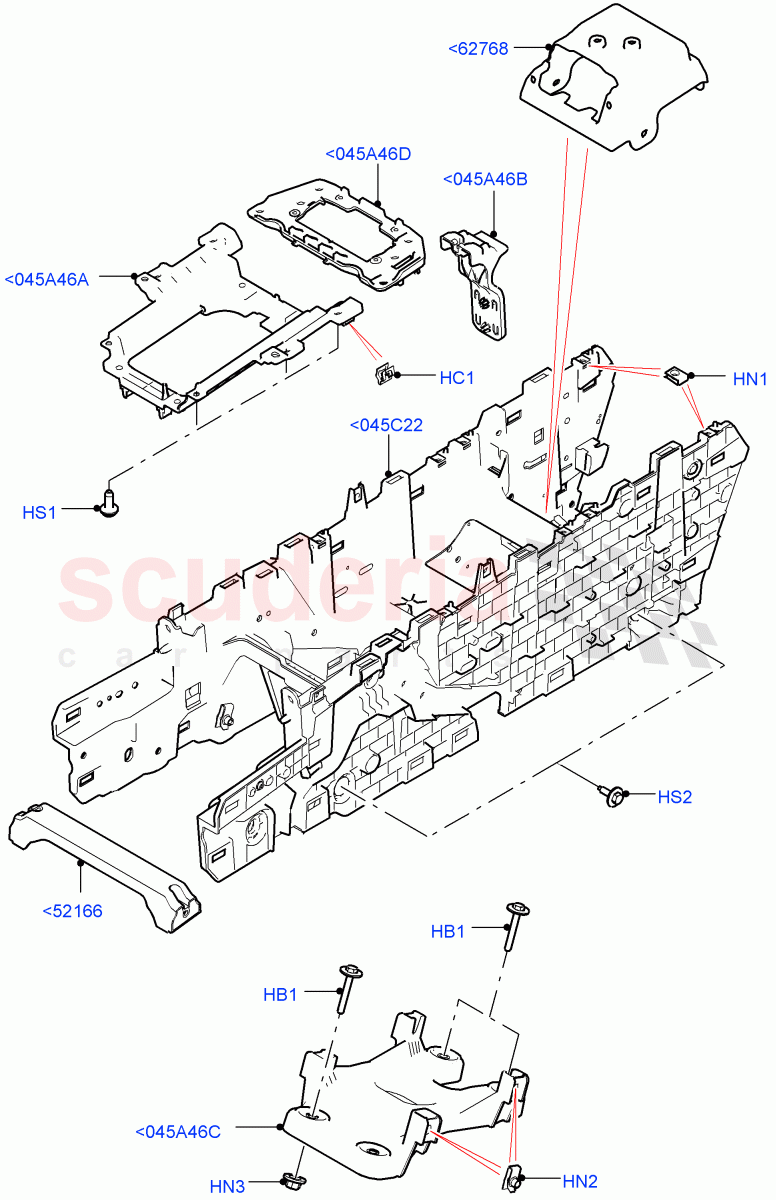

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<045A46A	LR072301	BRACKET - CONSOLE	LR072301 BRACKET - CONSOLE From: FG000001 / To: HG347883	$32.81	1
<045A46A	LR078668	BRACKET - CONSOLE	LR078668 BRACKET - CONSOLE From: HG347884	$53.32	1
<045A46B	LR059704	BRACKET - CHILD SEAT MOUNTING	LR059704 BRACKET - CHILD SEAT MOUNTING From: FG000001	$76.72	1
<045A46C	LR073046	BRACKET - CONSOLE	LR073046 BRACKET - CONSOLE From: FG000001	$96.51	1
<045A46D	LR073424	BRACKET - CONSOLE	LR073424 BRACKET - CONSOLE From: FG000001	$53.32	1
<045C22	LR073373	CONSOLE - CENTRE FLOOR	LR073373 CONSOLE - CENTRE FLOOR From: FG000001 / To: GG334820	$189.08	1
<045C22	LR088568	CONSOLE - CENTRE FLOOR	LR088568 CONSOLE - CENTRE FLOOR From: GG334821 / To: KG446856	$219.34	1
<52166	LR073098	BRACKET - SUPPORT	LR073098 BRACKET - SUPPORT Front / From: FG000001	$69.32	1
<62768	LR095125	COVER - MODULE	LR095125 COVER - MODULE Airbag Modules / From: FG000001 / To: HG347884	$95.13	1
<62768	LR095363	COVER - MODULE	LR095363 COVER - MODULE Airbag Modules / From: HG347885	$44.53	1
HB1	LR027626	BOLT	LR027626 BOLT M6 X 47.5 / From: FG000001	$2.27	4
HC1	LR004023	CLIP	LR004023 CLIP 1.4 M, Push On / From: FG000001	$3.50	4
HN1	LR006214	NUT IN STOCK	LR006214 NUT 4.2 X 2.25 - 3 / From: FG000001 IN STOCK	$0.45	12
HN2	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: FG000001 IN STOCK	$1.57	4
HN3	LR005270	NUT - SPECIAL	LR005270 NUT - SPECIAL M6 / From: FG000001	$0.45	1
HS1	RYP500700	SCREW	RYP500700 SCREW M5 X 12MM, Torx / From: FG000001	$0.62	6
HS2	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex / From: FG000001 / To: GG316395 IN STOCK	$1.32	10
HS2	KYP500400	SCREW AND WASHER	KYP500400 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: GG316396	$0.58	10
