Rear Window Wiper And Washer (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Rear Window Wiper And Washer (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR127671 HOSE - CAMERA WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR060921 MOTOR - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
LR062820 ARM - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
LR064430 BLADE - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
LR060000 JET Enquire To Order
LR076911 JET Enquire To Order
Photo Part No Description Price (each) Stock
LR077450 HOSE - REAR WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR127665 JET - CAMERA WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR064429 ARM - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
LR077443 GROMMET - WIPER Enquire To Order
View All

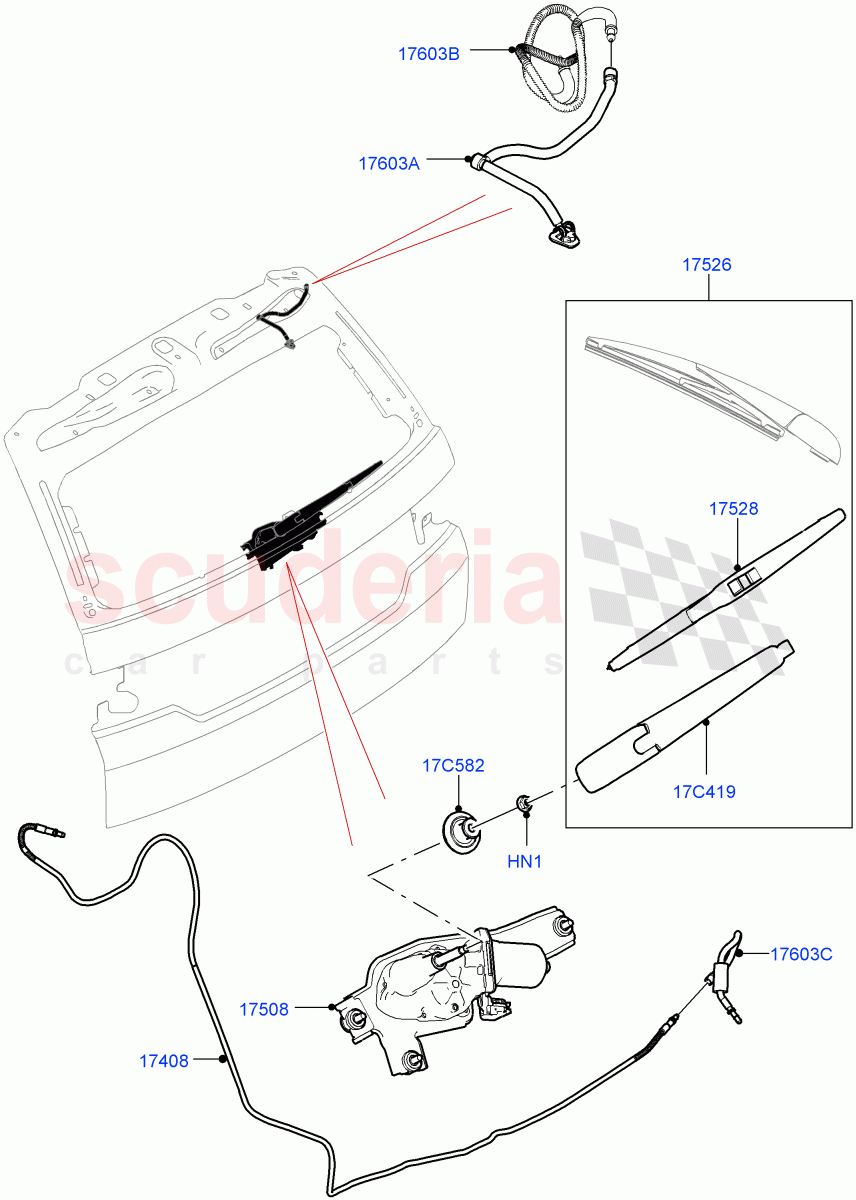

Rear Window Wiper And Washer (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106042
NUT
Hexagonal Head, M6 / From: FG000001 		- 1 Enquire
17C419 LR064429
ARM - WIPER
From: FG000001 		- 1 Enquire
17C582 LR077443
GROMMET - WIPER
From: FG000001 		- 1 Enquire
17408 LR127671
HOSE - CAMERA WASHER
From: KG446857 		- 1 Enquire
17508 LR060921
MOTOR - WIPER
From: FG000001 		- 1 Enquire
17526 LR062820
ARM - WIPER
From: FG000001 		- 1 Enquire
17528 LR064430
BLADE - WIPER
From: FG000001 		- 1 Enquire
17603A LR060000
JET
From: FG000001 / To: HG347884 		- 1 Enquire
17603A LR076911
JET
From: HG347885 		- 1 Enquire
17603B LR077450
HOSE - REAR WASHER
From: FG000001 		- 1 Enquire
17603C LR127665
JET - CAMERA WASHER
From: KG446857 		- 1 Enquire
