Exterior Rear View Mirror (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] - Exterior Rear View Mirror (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR011865 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR000075 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR038616 SCREW - PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR025172 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR048352 LAMP - EXTERIOR MIRROR Enquire To Order
LR048351 LAMP - EXTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
LR061303 PLUG - BLANKING Enquire To Order
LR061309 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR072912 MIRROR - REAR VIEW - OUTER Enquire To Order
LR072913 MIRROR - REAR VIEW - OUTER Enquire To Order
LR072942 MIRROR - REAR VIEW - OUTER Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061157 LAMP - EXTERIOR MIRROR Enquire To Order
LR061158 LAMP - EXTERIOR MIRROR Enquire To Order
Photo Part No Description Price (each) Stock
CRP500031 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
LR015050 MOTOR - EXTERIOR REAR VIEW MIRROR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048353 COVER - MIRROR HOUSING Enquire To Order
LR048354 COVER - MIRROR HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR048359 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR048360 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
LR048364 GLASS - REAR VIEW OUTER MIRROR Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

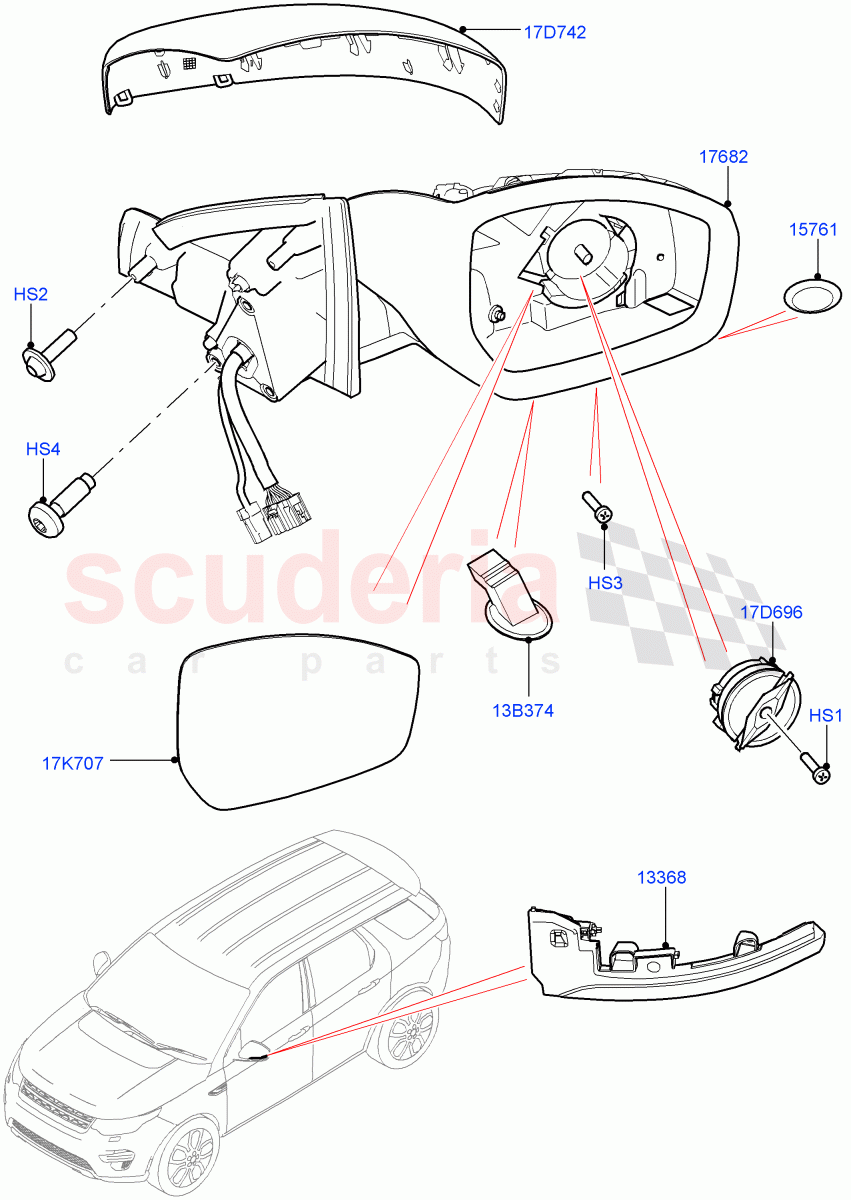

Exterior Rear View Mirror (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR011865
SCREW
M3 X 25MM / From: GT000001 		- 1 Enquire
HS2 LR000075
SCREW AND WASHER
M4 X 1.79 X 16 / From: GT000001 		- 4 Enquire
HS3 LR038616
SCREW - PAN HEAD
3 x 10 / From: GT000001 		- 2 Enquire
HS4 LR025172
SCREW
M6 X 16MM / From: GT000001 		- 3 Enquire
13B374 LR061157
LAMP - EXTERIOR MIRROR
Approach Lights / RH / From: GT000001 		- 1 Enquire
13B374 LR061158
LAMP - EXTERIOR MIRROR
Approach Lights / LH / From: GT000001 		- 1 Enquire
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Fold Back Mirror / RH, 3 Pin Connector, Less Memory / From: GT000001 		- 1 Enquire
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
Power/Heated/Memory Fold Back Mir / RH, 8 Pin Connector, With Memory / From: GT000001 		- 1 Enquire
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
Dual Power Heated Fold Back Mirror / LH, 3 Pin Connector, Less Memory / From: GT000001 		- 1 Enquire
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
Power/Heated/Memory Fold Back Mir / LH, 8 Pin Connector, With Memory / From: GT000001 		- 1 Enquire
17D742 LR048353
COVER - MIRROR HOUSING
RH, Primed / From: GT000001 		- 1 Enquire
17D742 LR048354
COVER - MIRROR HOUSING
LH, Primed / From: GT000001 		- 1 Enquire
17K707 LR048359
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Blind Spot Information System / RH, Convex Glass / From: GT000001 		- 1 Enquire
17K707 LR048360
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Blind Spot Information System / LH, Convex Glass / From: GT000001 		- 1 Enquire
17K707 LR048364
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass / LH, Arabic Script, Convex Glass / From: GT000001 		- 1 Enquire
17K707 LR048363
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex (SAS) Glass / RH, Arabic Script, Convex Glass / From: GT000001 		- 1 Enquire
17K707 LR048366
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Reverse Traffic Detection/CTA/LCMA / LH / From: GT000001 		- 1 Enquire
17K707 LR048365
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Reverse Traffic Detection/CTA/LCMA / RH / From: GT000001 		- 1 Enquire
13368 LR048352
LAMP - EXTERIOR MIRROR
LH / From: GT000001 		- 1 Enquire
13368 LR048351
LAMP - EXTERIOR MIRROR
RH / From: GT000001 		- 1 Enquire
15761 LR061303
PLUG - BLANKING
RH / From: GT000001 		- 1 Enquire
15761 LR061309
PLUG - BLANKING
LH / From: GT000001 		- 1 Enquire
17682 LR072912
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Lane Change Merge Aid, Power/Heated/Memory Fold Back Mir / RH / From: GT000001 		- 1 Enquire
17682 LR072913
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Lane Change Merge Aid, Power/Heated/Memory Fold Back Mir / LH / From: GT000001 		- 1 Enquire
17682 LR072942
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / RH / From: GT000001 		- 1 Enquire
17682 LR072947
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power Heated Exterior Mirrors, Less Blind Spot Information System / LH / From: GT000001 		- 1 Enquire
17682 LR072950
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System / RH / From: GT000001 / To: HT999999 		- 1 Enquire
17682 LR072951
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System / LH / From: GT000001 / To: HT999999 		- 1 Enquire
17682 LR072954
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power/Heated/Fold/App Mirrors, Less Blind Spot Information System / RH / From: JT000001 		- 1 Enquire
17682 LR072955
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Dual Power/Heated/Fold/App Mirrors, Less Blind Spot Information System / LH / From: JT000001 		- 1 Enquire
17682 LR072955
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Less Blind Spot Information System, Power/Heated/Memory Fold Back Mir / LH / From: GT000001 / To: HT999999 		- 1 Enquire
17682 LR072954
MIRROR - REAR VIEW - OUTER
2 1400MM Convex Mirror, Less Blind Spot Information System, Power/Heated/Memory Fold Back Mir / RH / From: GT000001 / To: HT999999 		- 1 Enquire
