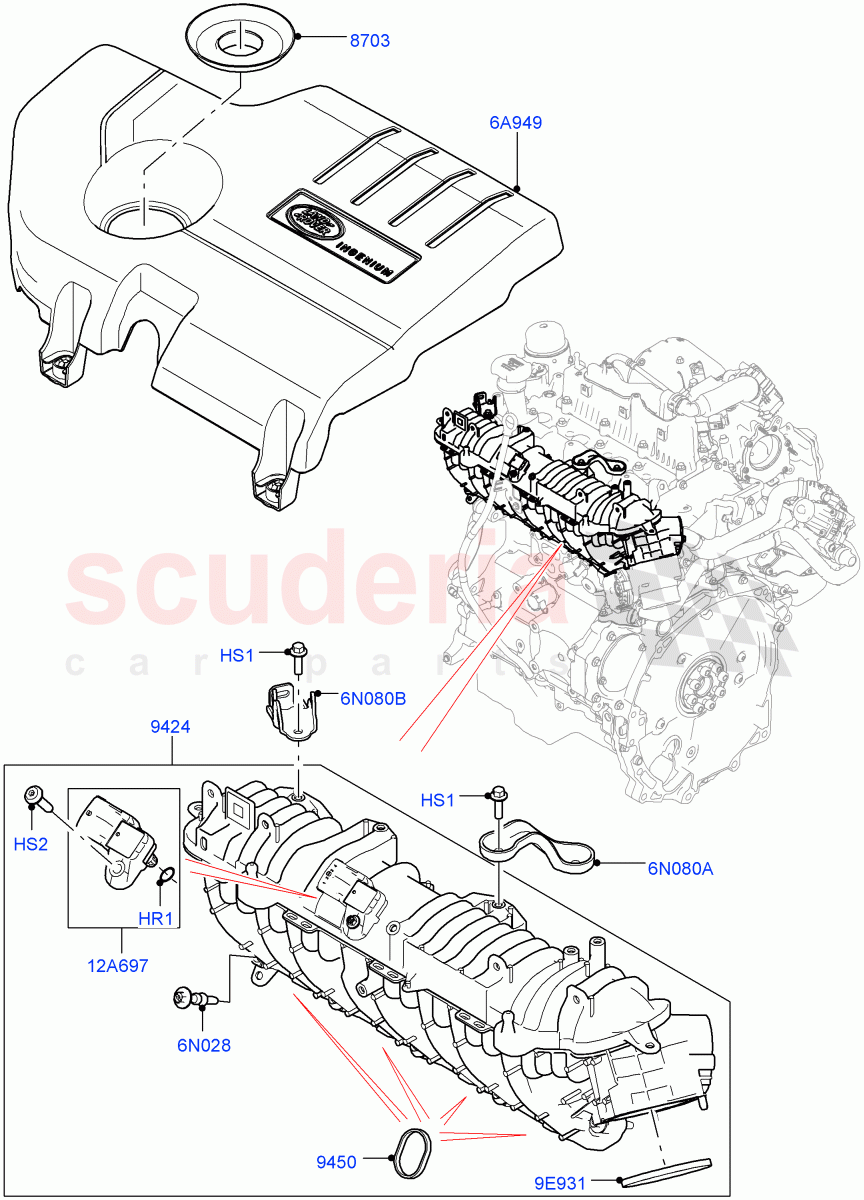

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073652	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074070	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094606	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073653	BRACKET - MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073654	BRACKET - MANIFOLD	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	LR095783	O-RING	LR095783 O-RING 7.5MM, MAP Sensor / From: LT000001	-	1	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: LT000001	-	4	Enquire
HS2	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor / From: LT000001	-	1	Enquire
6A949	LR094606	COVER - ENGINE TOP	LR094606 COVER - ENGINE TOP Engine / From: LT000001	-	1	Enquire
6N028	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head / From: LT000001	-	9	Enquire
6N080A	LR073653	BRACKET - MANIFOLD	LR073653 BRACKET - MANIFOLD LH / From: LT000001	-	1	Enquire
6N080B	LR073654	BRACKET - MANIFOLD	LR073654 BRACKET - MANIFOLD RH / From: LT000001	-	1	Enquire
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake / From: LT000001	-	1	Enquire
12A697	LR090375	SENSOR - AIR TEMPERATURE & PRESSURE	LR090375 SENSOR - AIR TEMPERATURE & PRESSURE Pressure, Temperature / From: LT000001	-	1	Enquire
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill / From: LT000001	-	1	Enquire
9424	LR073652	MANIFOLD - INLET	LR073652 MANIFOLD - INLET From: LT000001	-	1	Enquire
9450	LR074070	GASKET - INTAKE MANIFOLD	LR074070 GASKET - INTAKE MANIFOLD Inlet Manifold / From: LT000001	-	8	Enquire
