Cylinder Block And Plugs (2.0L Aj20D4 Diesel Mid Pta, Itatiaia (Brazil)) ((V) Fromlt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Cylinder Block And Plugs (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil)) ((V) FROMLT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR101794 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR073636 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR095786 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR106648 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR101795 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR126160 PIN - FASTENING Enquire To Order
Photo Part No Description Price (each) Stock
LR115700 COVER - CYLINDER FRONT Enquire To Order
Photo Part No Description Price (each) Stock
LR073684 VALVE - PISTON OIL COOLNG Enquire To Order
Photo Part No Description Price (each) Stock
LR095896 NOZZLE - PISTON COOLING Enquire To Order
Photo Part No Description Price (each) Stock
LR118109 SEAL - CRANKSHAFT OIL - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
LR074067 SENSOR - ENGINE TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR100574 CONNECTOR - VACUUM TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR084238 INSULATOR PAD - CYLINDER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
LR083682 INSULATOR - ENGINE COMPARTMENT Enquire To Order
View All

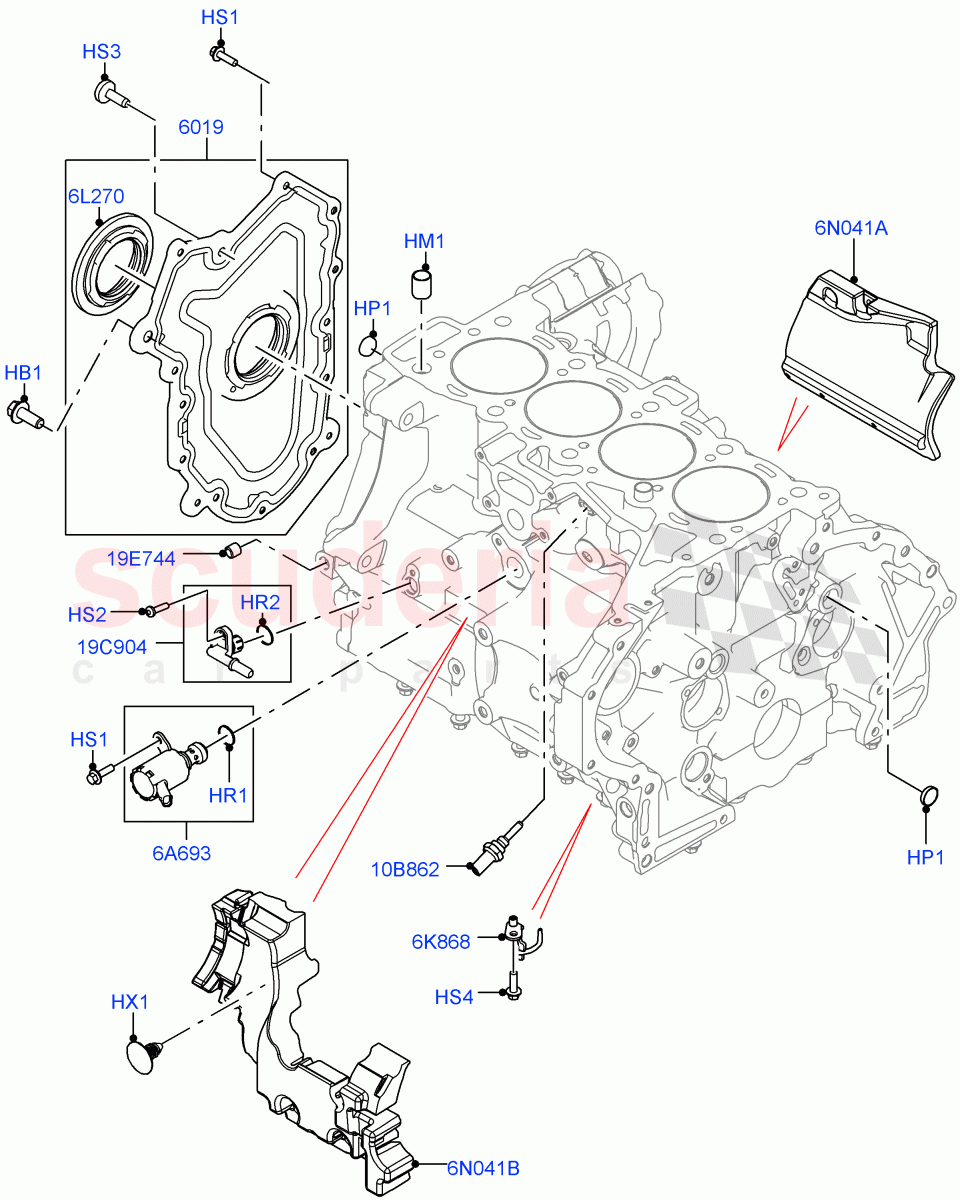

Cylinder Block And Plugs (2.0L AJ20D4 Diesel Mid PTA, Itatiaia (Brazil)) ((V) FROMLT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR101794
BOLT
Cover, M10 X 25MM, Torx / From: LT000001 		- 1 Enquire
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell / From: LT000001 		- 2 Enquire
HP1 LR073636
PLUG - BLANKING
18MM, Blanking / From: LT000001 		- 4 Enquire
HR1 LR095786
O-RING
15.3MM, Valve - piston oil cooling / From: LT000001 		- 1 Enquire
HR2 LR106648
O-RING
Connector, Vacuum / From: LT000001 		- 1 Enquire
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: LT000001 		- 13 Enquire
HS2 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: LT000001 		- 1 Enquire
HS3 LR101795
SCREW
Electric Engine Battery-MHEV / M8X25, Torx / From: LT000001 		- 1 Enquire
HS4 LR073720
SCREW
M6 X 20MM, Oil Lubrication Jet / From: LT000001 		- 4 Enquire
HX1 LR126160
PIN - FASTENING
6.5 x 6 / From: LT000001 		- 1 Enquire
6A693 LR073684
VALVE - PISTON OIL COOLNG
From: LT000001 		- 1 Enquire
6K868 LR095896
NOZZLE - PISTON COOLING
From: LT000001 		- 4 Enquire
6L270 LR118109
SEAL - CRANKSHAFT OIL - FRONT
From: LT000001 		- 1 Enquire
6N041A LR084238
INSULATOR PAD - CYLINDER BLOCK
Cylinder Block, Rear / From: LT000001 		- 1 Enquire
6N041B LR083682
INSULATOR - ENGINE COMPARTMENT
Cylinder Block, Front / From: LT000001 		- 1 Enquire
10B862 LR074067
SENSOR - ENGINE TEMPERATURE
From: LT000001 		- 1 Enquire
19C904 LR100574
CONNECTOR - VACUUM TUBE
From: LT000001 		- 1 Enquire
19E744 LR057802
DOWEL - PIN
Air Conditioning Compressor Bracket, 		- 1 Enquire
6019 LR115700
COVER - CYLINDER FRONT
Engine Front, Includes Seal / From: LT000001 		- 1 Enquire
