Inlet Manifold (2.0L I4 Dsl High Dohc Aj200, Itatiaia (Brazil)) ((V) Fromjt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Inlet Manifold (2.0L I4 DSL HIGH DOHC AJ200, Itatiaia (Brazil)) ((V) FROMJT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR095783 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP500810 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR074074 OIL SPILL GAITER Enquire To Order
Photo Part No Description Price (each) Stock
LR094513 MANIFOLD - INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR074070 GASKET - INTAKE MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR094606 COVER - ENGINE TOP Enquire To Order
Photo Part No Description Price (each) Stock
LR074085 BOLT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR074073 GASKET - THROTTLE Enquire To Order
Photo Part No Description Price (each) Stock
LR085941 ACTUATOR - VARIABLE INTAKE SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR090375 SENSOR - AIR TEMPERATURE & PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR073653 BRACKET - MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR073654 BRACKET - MANIFOLD Enquire To Order
View All

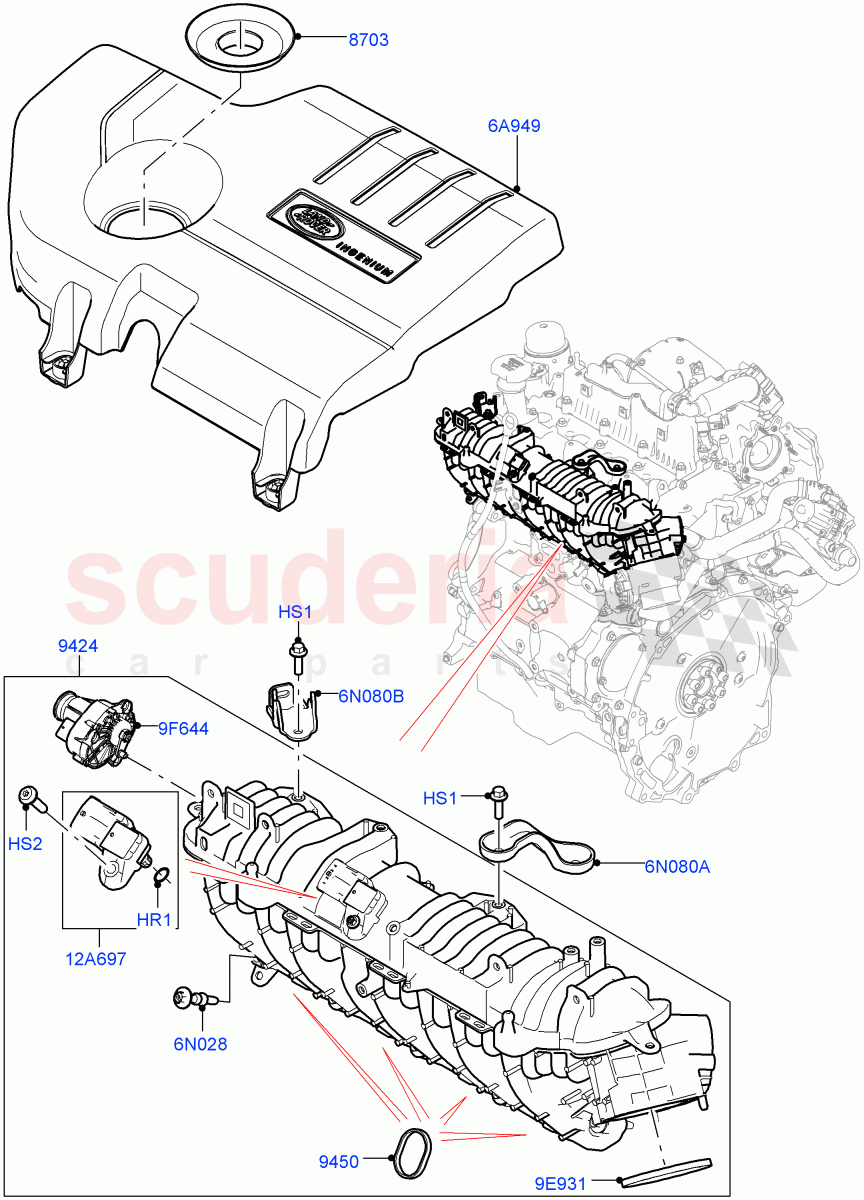

Inlet Manifold (2.0L I4 DSL HIGH DOHC AJ200, Itatiaia (Brazil)) ((V) FROMJT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR095783
O-RING
7.5MM, MAP Sensor / From: JT000001 		- 1 Enquire
HS1 LR073655
SCREW
Bracket, Hexagonal Head, M6 X 20MM / From: JT000001 		- 4 Enquire
HS2 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, Sensor / From: JT000001 		- 1 Enquire
6A949 LR094606
COVER - ENGINE TOP
From: JT000001 		- 1 Enquire
6N028 LR074085
BOLT - SPECIAL
M6 x 42MM, Manifold To Cylinder Head / From: JT000001 		- 9 Enquire
6N080A LR073653
BRACKET - MANIFOLD
LH / From: JT000001 		- 1 Enquire
6N080B LR073654
BRACKET - MANIFOLD
RH / From: JT000001 		- 1 Enquire
9E931 LR074073
GASKET - THROTTLE
Throttle Body To Intake / From: JT000001 		- 1 Enquire
9F644 LR085941
ACTUATOR - VARIABLE INTAKE SYSTEM
From: JT000001 		- 1 Enquire
12A697 LR090375
SENSOR - AIR TEMPERATURE & PRESSURE
Pressure, Temperature / From: JT000001 		- 1 Enquire
8703 LR074074
OIL SPILL GAITER
Oil Spill / From: JT000001 		- 1 Enquire
9424 LR094513
MANIFOLD - INLET
From: JT000001 		- 1 Enquire
9450 LR074070
GASKET - INTAKE MANIFOLD
Inlet Manifold / From: JT000001 		- 8 Enquire
