Rear Towing Step of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Rear Towing Step

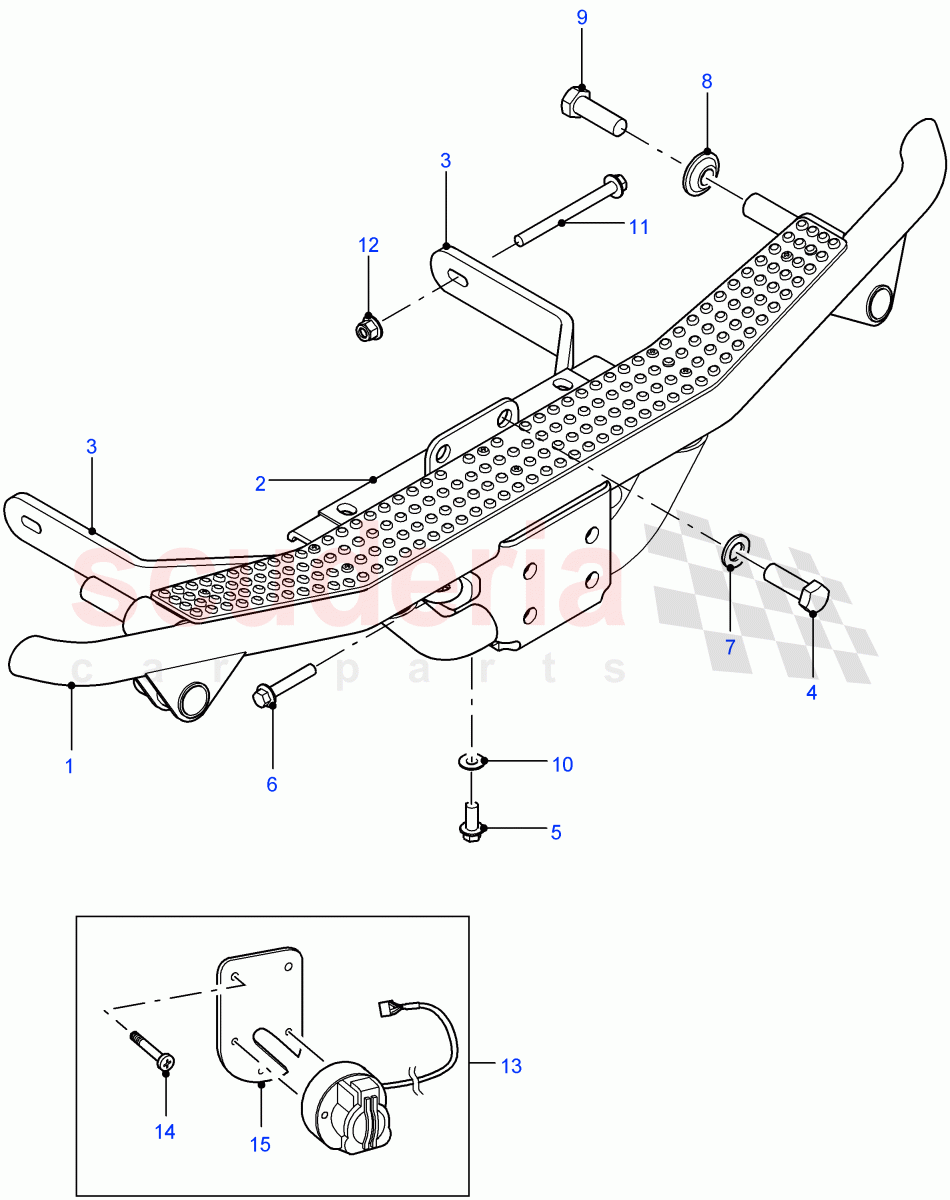

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025729	STEP - REAR	Enquire	To Order
	LR043125	STEP - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025730	SPACER - REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025731	BRACKET - TOW BAR MOUNTING	Enquire	To Order
	LR025732	BRACKET - TOW BAR MOUNTING	Enquire	To Order
	LR025733	BRACKET - TOW BAR MOUNTING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027905	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110356	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000073	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA116106	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027906	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500450	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ110006	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500480	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501120	SCREW	Enquire	To Order
	KYG500440	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR046959	TOW BAR ELECTRICS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SE105358	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLDV0095	BRACKET - SOCKET SUPPORT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR025729	STEP - REAR	LR025729 STEP - REAR To: BA999999	-	1	Enquire
1	LR043125	STEP - REAR	LR043125 STEP - REAR From: CA000001	-	1	Enquire
2	LR025730	SPACER - REAR BUMPER	LR025730 SPACER - REAR BUMPER	-	1	Enquire
3	LR025731	BRACKET - TOW BAR MOUNTING	LR025731 BRACKET - TOW BAR MOUNTING 90" Wheelbase / RH / To: BA999999	-	1	Enquire
3	LR025732	BRACKET - TOW BAR MOUNTING	LR025732 BRACKET - TOW BAR MOUNTING 90" Wheelbase / LH / To: BA999999	-	1	Enquire
3	LR025733	BRACKET - TOW BAR MOUNTING	LR025733 BRACKET - TOW BAR MOUNTING 110" Wheelbase / RH / To: BA999999	-	1	Enquire
3	LR025734	BRACKET - TOW BAR MOUNTING	LR025734 BRACKET - TOW BAR MOUNTING 110" Wheelbase / LH / To: BA999999	-	1	Enquire
3	LR043126	BRACKET - TOW BAR MOUNTING	LR043126 BRACKET - TOW BAR MOUNTING 90" Wheelbase / RH / From: CA000001	-	1	Enquire
3	LR043129	BRACKET - TOW BAR MOUNTING	LR043129 BRACKET - TOW BAR MOUNTING 90" Wheelbase / LH / From: CA000001	-	1	Enquire
3	LR043130	BRACKET - TOW BAR MOUNTING	LR043130 BRACKET - TOW BAR MOUNTING 110" Wheelbase / RH / From: CA000001	-	1	Enquire
3	LR043131	BRACKET - TOW BAR MOUNTING	LR043131 BRACKET - TOW BAR MOUNTING 110" Wheelbase / LH / From: CA000001	-	1	Enquire
4	LR027905	BOLT	LR027905 BOLT M16 X 30	-	2	Enquire
5	FS110356	SCREW	FS110356 SCREW M10 x 35MM	-	3	Enquire
6	LR000073	BOLT - HEX.HEAD	LR000073 BOLT - HEX.HEAD M12 x 50	-	2	Enquire
7	WA116106	WASHER	WA116106 WASHER M16, Plain	-	2	Enquire
8	LR027906	WASHER	LR027906 WASHER	-	2	Enquire
9	KYG500450	BOLT	KYG500450 BOLT M12 x 40MM	-	2	Enquire
10	WJ110006	WASHER	WJ110006 WASHER M10	-	3	Enquire
11	RYH500480	NUT AND WASHER - HEX.	RYH500480 NUT AND WASHER - HEX. 110" Wheelbase / M10	-	2	Enquire
12	RYP501120	SCREW	RYP501120 SCREW 90" Wheelbase / M12 x 40MM	-	2	Enquire
12	KYG500440	BOLT	KYG500440 BOLT 110" Wheelbase / M10 X 115	-	2	Enquire
13	LR046959	TOW BAR ELECTRICS	LR046959 TOW BAR ELECTRICS 12S	-	1	Enquire
14	SE105358	SCREW	SE105358 SCREW M5 x 35MM	-	3	Enquire
15	VPLDV0095	BRACKET - SOCKET SUPPORT	VPLDV0095 BRACKET - SOCKET SUPPORT 12S	-	1	Enquire
