Name: Lamps Rear - Indicator, Fog, Reverse
Rating: 4.6 (1 reviews)

View All

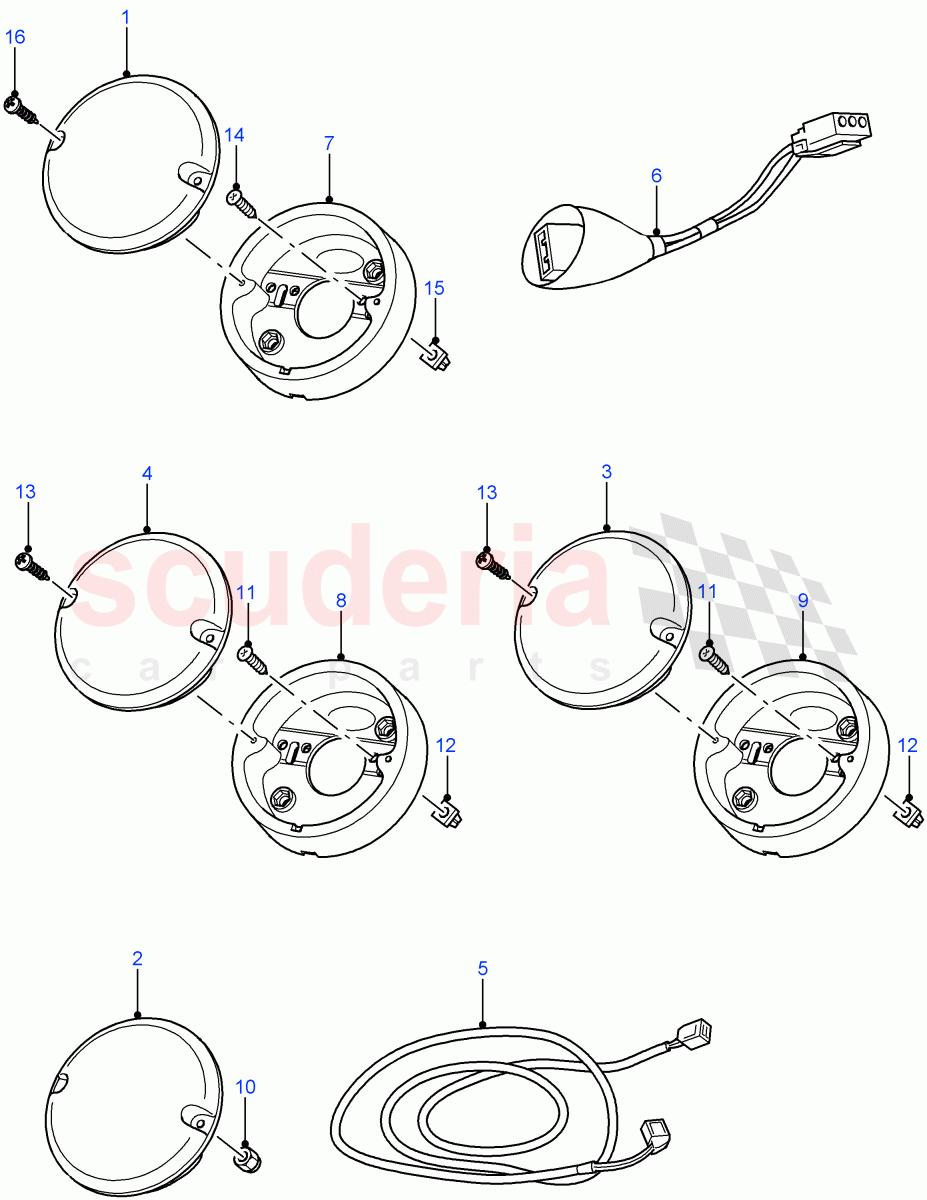

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008913	LAMP - REAR	$213.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009792	LAMP - FLASHER	$93.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008975	LAMP - FOG	$219.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008982	LAMP	$274.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009711	KIT - WIRING	$85.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010368	WIRING - REAR LAMPS	$70.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009773	BASE - REAR LAMP	$38.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009773	BASE - REAR LAMP	$38.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009773	BASE - REAR LAMP	$38.44	To Order

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DA608044L	SCREW - SELF-TAPPING	$1.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RTC3745	NUT - LOCKING	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010398	SCREW	$3.54	To Order

Photo	Part No	Description	Price (each)	Stock
	DA608044L	SCREW - SELF-TAPPING	$1.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RTC3745	NUT - LOCKING	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	DA606059L	SCREW - SELF-TAPPING	$3.70	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR008913	LAMP - REAR	LR008913 LAMP - REAR LED, Stop/Tail	$213.57	2
2	LR009792	LAMP - FLASHER	LR009792 LAMP - FLASHER	$93.89	2
3	LR008975	LAMP - FOG	LR008975 LAMP - FOG LED	$219.97	1
4	LR008982	LAMP	LR008982 LAMP LED	$274.20	1
5	LR009711	KIT - WIRING	LR009711 KIT - WIRING fog and reverse lamp	$85.92	2
6	LR010368	WIRING - REAR LAMPS	LR010368 WIRING - REAR LAMPS Tail Lamp	$70.49	2
7	LR009773	BASE - REAR LAMP	LR009773 BASE - REAR LAMP	$38.44	2
8	LR009773	BASE - REAR LAMP	LR009773 BASE - REAR LAMP	$38.44	1
9	LR009773	BASE - REAR LAMP	LR009773 BASE - REAR LAMP	$38.44	1
10	FN105042	NUT - HEX. - FLANGED IN STOCK	FN105042 NUT - HEX. - FLANGED M5 IN STOCK	$0.50	4
11	DA608044L	SCREW - SELF-TAPPING IN STOCK	DA608044L SCREW - SELF-TAPPING Reverse Lamp, Size 8 - Self Tapping IN STOCK	$1.93	2
12	RTC3745	NUT - LOCKING	RTC3745 NUT - LOCKING Reverse Lamp	$1.27	2
13	LR010398	SCREW	LR010398 SCREW NO.6, Reverse Lamp	$3.54	2
14	DA608044L	SCREW - SELF-TAPPING IN STOCK	DA608044L SCREW - SELF-TAPPING Size 8 - Self Tapping, Stop/Tail IN STOCK	$1.93	4
15	RTC3745	NUT - LOCKING	RTC3745 NUT - LOCKING Stop/Tail	$1.27	4
16	DA606059L	SCREW - SELF-TAPPING	DA606059L SCREW - SELF-TAPPING NO.6, Stop/Tail	$3.70	4
