Name: Headlamp Surrounds And Grille
Rating: 5.0 (1 reviews)

Headlamp Surrounds And Grille of Land Rover Land Rover Defender (2007-2016)

View All

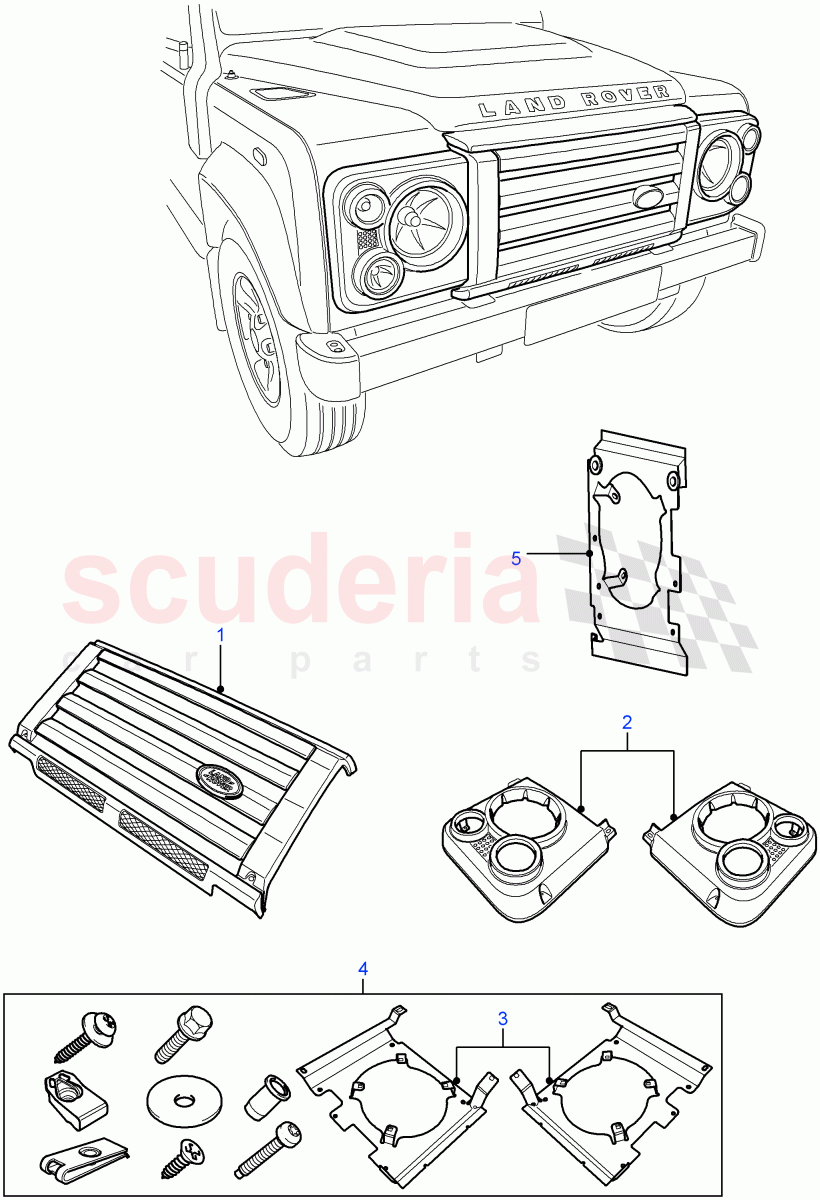

Land Rover Defender (2007-2016) - Headlamp Surrounds And Grille

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024177	GRILLE - RADIATOR	$981.70	To Order
	LR024178	GRILLE - RADIATOR	$981.70	To Order
	LR040896	Grille - Radiator	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024179	SURROUND - HEADLAMP	$415.78	To Order
	LR024180	SURROUND - HEADLAMP	$419.84	To Order
	LR041453	SURROUND - HEADLAMP	$473.37	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR008366	KIT - FIXING PARTS	$283.02	IN STOCK
	LR008366	KIT - FIXING PARTS	$283.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR008366	KIT - FIXING PARTS	$283.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR027903	BRACKET - LAMP MOUNTING	$64.62	To Order
	LR027904	BRACKET	$76.18	To Order
	LR041280	BRACKET - LAMP MOUNTING	$154.44	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR024177	GRILLE - RADIATOR	LR024177 GRILLE - RADIATOR Nara Bronze (825) / To: BA999999	$981.70	1
1	LR024178	GRILLE - RADIATOR	LR024178 GRILLE - RADIATOR Zermatt Silver (798) / To: BA999999	$981.70	1
1	LR040896	Grille - Radiator	LR040896 Grille - Radiator Orkney Grey (949) / To: BA999999	-	1	Enquire
1	LR041451	GRILLE - RADIATOR	LR041451 GRILLE - RADIATOR Nara Bronze (825) / From: CA000001	$1,039.99	1
1	LR041905	GRILLE - RADIATOR	LR041905 GRILLE - RADIATOR Zermatt Silver (798) / From: CA000001	$1,039.99	1
1	LR041452	GRILLE - RADIATOR	LR041452 GRILLE - RADIATOR Orkney Grey (949) / From: CA000001 / To: DA999999	$1,039.99	1
2	LR024179	SURROUND - HEADLAMP	LR024179 SURROUND - HEADLAMP RH, Santorini Black / To: BA999999	$415.78	1
2	LR024180	SURROUND - HEADLAMP	LR024180 SURROUND - HEADLAMP LH, Santorini Black / To: BA999999	$419.84	1
2	LR041453	SURROUND - HEADLAMP	LR041453 SURROUND - HEADLAMP RH, Primed / From: CA000001	$473.37	1
2	LR041454	SURROUND - HEADLAMP	LR041454 SURROUND - HEADLAMP LH, Primed / From: CA000001	$473.37	1
3	LR008366	KIT - FIXING PARTS IN STOCK	LR008366 KIT - FIXING PARTS RH IN STOCK	$283.02	1
3	LR008366	KIT - FIXING PARTS IN STOCK	LR008366 KIT - FIXING PARTS LH IN STOCK	$283.02	1
4	LR008366	KIT - FIXING PARTS IN STOCK	LR008366 KIT - FIXING PARTS IN STOCK	$283.02	1
5	LR027903	BRACKET - LAMP MOUNTING	LR027903 BRACKET - LAMP MOUNTING RH / To: BA999999	$64.62	1
5	LR027904	BRACKET	LR027904 BRACKET LH / To: BA999999	$76.18	1
5	LR041280	BRACKET - LAMP MOUNTING	LR041280 BRACKET - LAMP MOUNTING RH / From: CA000001	$154.44	1
5	LR041281	BRACKET - LAMP MOUNTING	LR041281 BRACKET - LAMP MOUNTING LH / From: CA000001	$154.44	1
