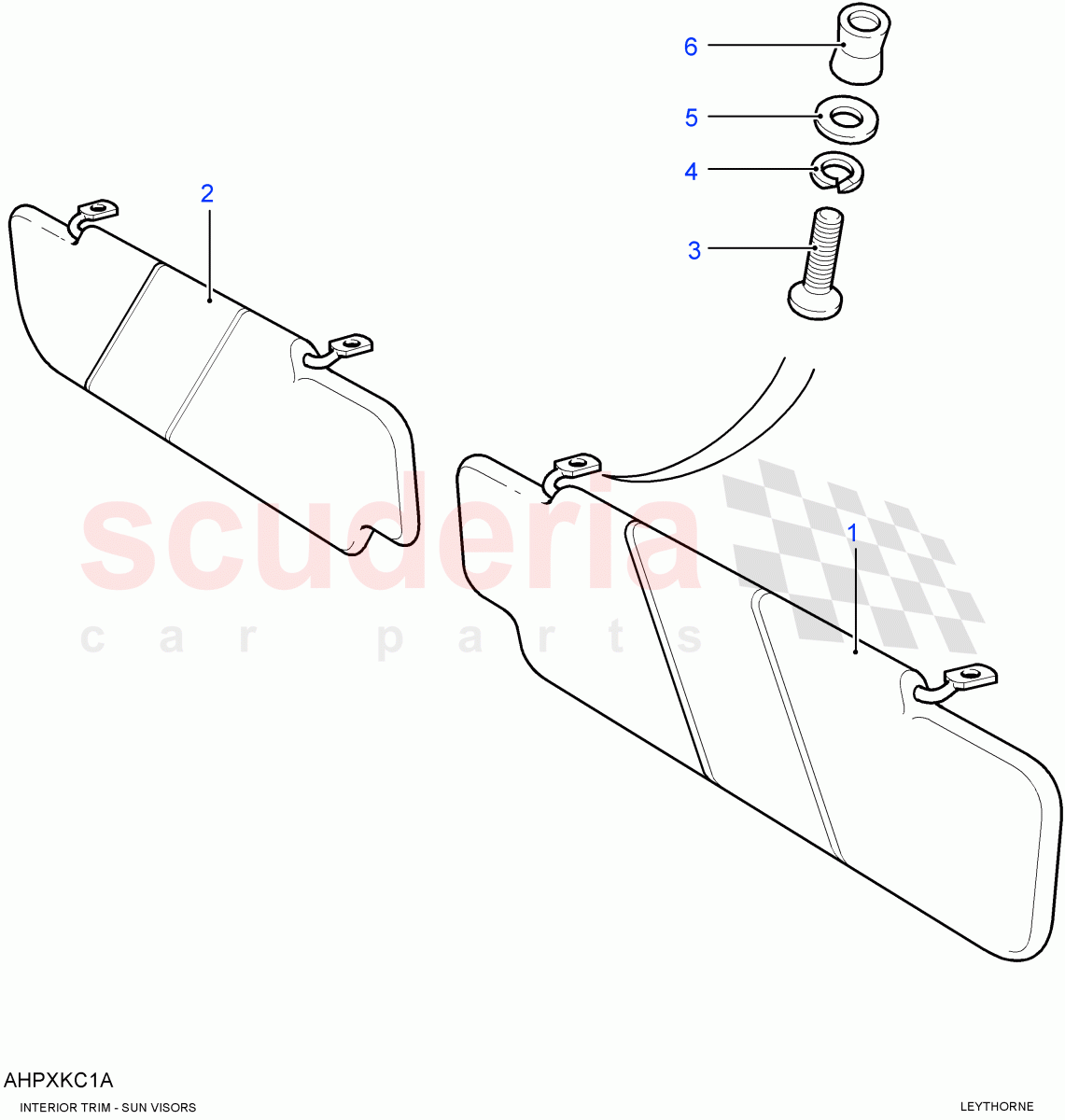

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	MXC1394LUH	SUNVISOR	MXC1394LUH SUNVISOR RH, Ripple Grey	$117.58	1
1	LR066115	SUNVISOR	LR066115 SUNVISOR Ebony Headliner / RH / From: FA000001 / To: FA459833	$147.29	1
1	LR077726	SUNVISOR	LR077726 SUNVISOR Ebony Headliner / RH / From: FA459834	$415.06	1
2	MXC1395LUH	SUNVISOR	MXC1395LUH SUNVISOR LH, Ripple Grey	$120.02	1
2	LR066116	SUNVISOR	LR066116 SUNVISOR Ebony Headliner / LH / From: FA000001 / To: FA459833	$147.29	1
2	LR077727	SUNVISOR	LR077727 SUNVISOR Ebony Headliner / LH / From: FA459834	$415.06	1
3	AB614061L	SCREW	AB614061L SCREW for untrimmed vehicles, No 14 x 3/4, Self Tapping	$2.50	4
3	AB614082	SCREW	AB614082 SCREW for trimmed vehicles, Self Tapping / To: 7A737621	$0.59	4
3	RYP500600	SCREW	RYP500600 SCREW for trimmed vehicles, Self Tapping / From: 7A737622	$0.45	4
4	WL106002	RESTRICTOR IN STOCK	WL106002 RESTRICTOR M6, sprung IN STOCK	$1.69	4
5	WA106042	RESTRICTOR IN STOCK	WA106042 RESTRICTOR 6MM, Plain IN STOCK	$2.15	4
6	302532	NUT - LOCKING	302532 NUT - LOCKING	$1.94	4
